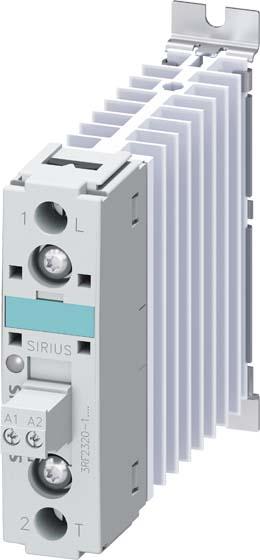

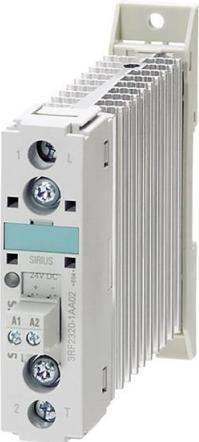

Siemens Digital Industry Semiconductor Relay 3RF2320-1CA44

Manufacturer: Siemens Digital Industry
Designation: Semiconductor Relay 48-460V 20A
Type: 3RF2320-1CA44
Rated Control Supply Voltage Us at DC: 4..24 V
Voltage Type for Actuation: DC
Operating Voltage: 48..460 V
Rated Operating Current Ie at AC-1: 20 A
Rated Operating Current Ie at AC-51: 20 A
Number of Phases: 1
Suitable for Rail Mounting: Yes

Additional Details:
Single-phase semiconductor relay 3RF2 AC 51 / 20 A / 40 °C 48-460 V / DC 4-30 V low noise. SIRIUS 3RF23 semiconductor relay for switching resistive/inductive loads, such as radiators or valves in a filling plant. The devices switch wear-free and silently, making them ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. With the heat sink already integrated, they can be directly installed in the control cabinet. The compact design saves space on the DIN rail. Additionally, the semiconductor relays can be easily expanded for various applications by simply snapping on standardized function modules 3RF29. The devices are globally approved (e.g., IEC and UL/CSA). The semiconductor relays are available as single-phase or three-phase devices. They are offered for various power ratings and rated operating voltages. Designed for AC or DC actuation, they come with screw, spring-loaded, or ring terminal connections. In addition to function modules 3RF29, control plugs and terminal covers are also available as accessories. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209591646.
