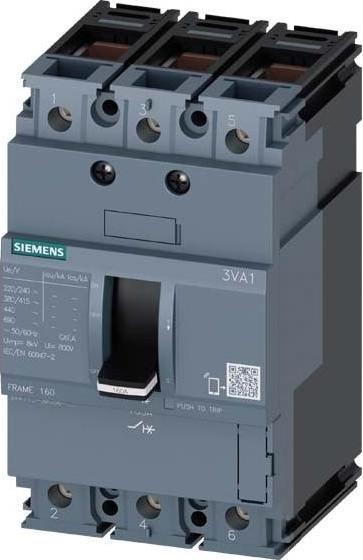

Siemens Dig.Industr. Circuit Breaker 3VA1104-5MG36-0AA0 Manufacturer :Siemens Dig.Industr. Designation :Circuit-breaker 3VA1 IEC Frame 160 Type :3VA1104-5MG36-0AA0 Rated continuous current Iu :4 A Rated voltage :690 V Rated short-circuit breaking current Icu at 400 V, 50 Hz :55 kA Setting range of instantaneous short-circuit release :64 A Integrated earth fault protection :no Connection type main circuit :Frame terminal Device type :Built-in device Fixed installation technology Suitable for top-hat rail mounting :yes Top-hat rail mounting optional :yes With trip indicator :no With integrated undervoltage release :no No. of poles :3 Position of connection for main circuit :front Design of operating element :toggle lever Complete device with protection unit :yes Motor drive integrated :no Motor drive optional :yes Degree of protection (IP) :IP40 Siemens Dig.Industr. circuit-breaker 3VA1104-5MG36-0AA0: further details Circuit-breaker 3VA1 IEC Frame 160 Breaking capacity class M Icu=55kA @ 415V 3-pole, starter protection TM110M, FM, In=4A without overload protection Short-circuit protection Ii=15 x In Terminal connection Compact circuit-breaker 3VA1 for starter protection. The Siemens 3VA compact circuit-breakers are an important part of the SENTRON protection components for industrial applications as well as for applications in the infrastructure sector. They offer effective system, starter and motor protection through safe disconnection in case of overload and short-circuit. The 3VA compact circuit-breakers set standards in flexibility and modular accessory diversity. Uniform accessories for several sizes across all series of the 3VA1 and 3VA2 compact circuit-breaker. This version of the 3VA compact circuit-breaker is characterised above all by: 1. compact design. 2. available as a variant for starter protection for protecting electric motors against short-circuits. 3. available as 3-pole version. 4. depending on size: rated operational current of 32 A....200 A. 5. breaking capacity of 55 kA ... 70 kA at 415 V. 6. fixed and plug-in mounting possible. 7. the series has a thermal-magnetic overcurrent release 8. modular and easy-to-mount internal accessories with a wide range of functions. 9. universal accessory platform across all 3VA compact circuit-breakers. , EAN: 4042948828649.
