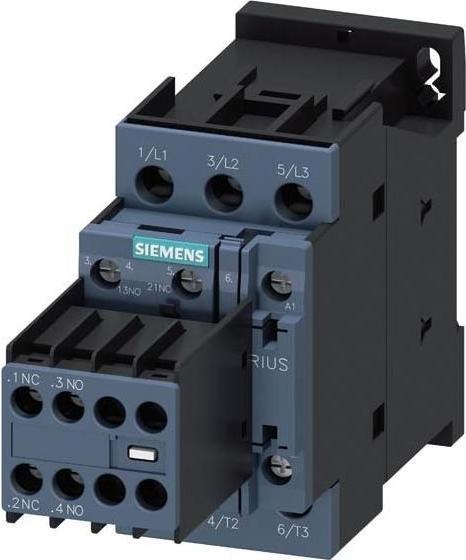

Siemens Dig.Industr. Contactor 3RT2026-1AF04 Manufacturer :Siemens Dig.Industr. Designation :Contactor 11kW/400V 2S+2Ö 110V Type :3RT2026-1AF04 Rated control supply voltage Us at AC 50 Hz :110 V Type of voltage for actuation :AC Rated operational current Ie at AC-1, 400 V :40 A Rated operational current Ie at AC-3, 400 V :25 A Rated operational power at AC-3, 400 V :11 kW Rated operational current Ie at AC-4, 400 V :15.5 A Rated operational power at AC-4, 400 V :7.5 kW Rated operational power NEMA :11.03248124 kW Suitable for series installation :yes Number of auxiliary contacts as make contacts :2 Number of auxiliary contacts as break contacts :2 Connection type main circuit :screw connection Number of make contacts as main contacts :3 Siemens Dig.Industrial contactor 3RT2026-1AF04: further details Power contactor, AC-3 25 A, 11 kW / 400 V 2 S + 2 Ö, AC 110 V, 50 Hz, 3-pole, size S0 Screw connection Auxiliary contact detachable Power contactor SIRIUS 3RT2 for switching motors.The 3RT2 contactors are part of the SIRIUS modular system with its optimally matched products. They impress with their high performance combined with compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations are factory-tested. The contactors offer the optimum connection to the control system for every application (parallel, via ASi or IO-Link). Integrated auxiliary switches reduce the complexity of your set-up. The front connections allow easy wiring. The 3RT2 contactors are climate-proof, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4ready.They are available in various sizes and in a wide power range in AC and DC actuation. In addition to screw connection technology, the units are also available with spring-cage connection for fast, maintenance-free and vibration-proof connection.The comprehensive range of accessories, such as auxiliary contacts, auxiliary releases, etc., is standardised for all sizes. The available connection modules, function modules and the SIRIUS 3RV29 power supply system considerably reduce the wiring effort.The 3RT2 contactors replace the proven 3RT1 series (up to 55 kW).Simple, efficient, always up-to-date - the SIRIUS modular system. , EAN: 4011209837430.
