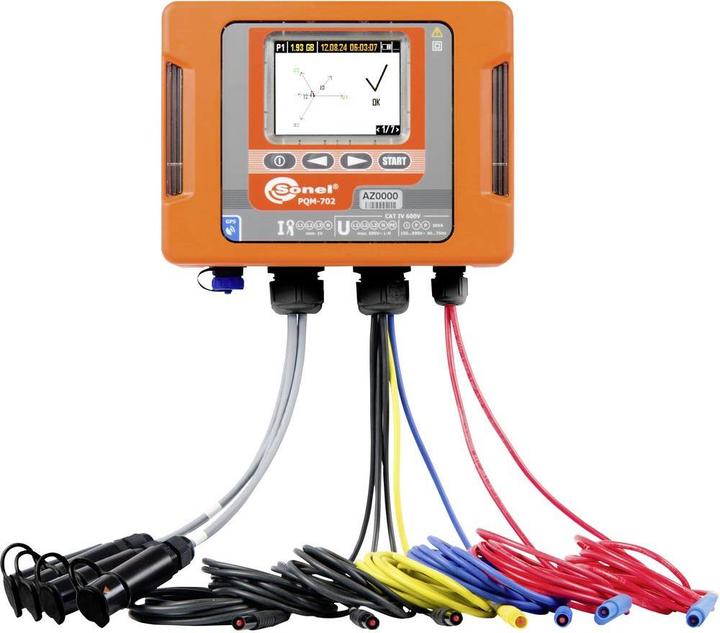

Sonel PQM-702 Power analyzer, power analyzer
Product details
The PQM-702 power quality analyzer from Sonel has been developed for high-level power quality analysis. It meets all common EU and IEC standards, and all measurements are conducted according to IEC 61000-4-30 Class A. Using current clamps, currents of up to 3 kA can be measured, and along with all other parameters recorded by the analyzer, data can be transmitted to a PC via WLAN, integrated modem (UTMS or GSM), USB, or microSD card using the included software for professional evaluation and analysis. Reports can be automatically generated according to EN 50160. The precise network analysis is further supported by the integrated GPS receiver for time synchronization of the RTC. Installation is possible both indoors and outdoors.
Item number | 8467915 |
Manufacturer | Sonel |
Category | Metrology |
Manufacturer no. | WMDEPQM702 |
Release date | 21.4.2018 |
Manufacturer Type | PQM-710 |
CO₂-Emission | |
Climate contribution |
Length | 440 mm |
Width | 520 mm |
Height | 200 mm |
Weight | 8400 g |
Product Safety |
