Sony ECM-B1M
Only 4 items in stock at supplier
Product details

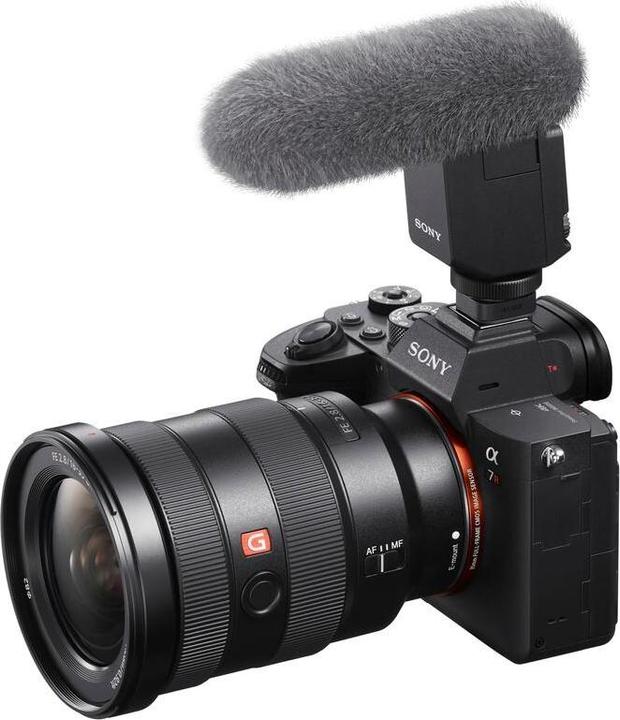

Advanced digital signal processing enables three selectable polar patterns in a single, versatile microphone: super-directional, unidirectional, and omnidirectional. Eight high-performance microphones use a newly developed beamforming algorithm to achieve extremely clear directivity that effectively suppresses off-axis noise. The microphone is surprisingly compact, with a length of only 99.3 mm. When connected via the accessory shoe with multiple interfaces of a compatible camera that has an integrated digital audio interface, the audio signal is transmitted directly to the camera in digital form, eliminating sound loss. A simple switch also allows compatibility with a wide range of cameras via an analogue interface. Simply attach the microphone to the accessory shoe of a compatible camera to provide direct power and audio connectivity without additional cables or batteries.

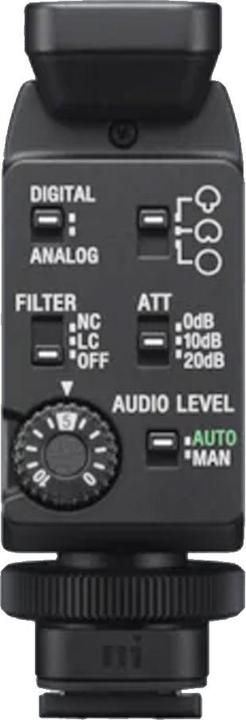

The multi-interface accessory shoe offers intelligent connectivity and control for a variety of accessories, providing maximum flexibility and mobility when recording with α devices. The modern shock and vibration suppression design effectively minimizes low-frequency or handling noise that can affect audio quality. Since no connecting cables are required, unwanted noises are not transmitted mechanically to the microphone via cables and connectors. A high-pass filter that suppresses infrasound is implemented via digital signal processing, maximizing audio quality during recording and simplifying post-processing. The control of recording levels, the analogue output for compatibility with a wide range of cameras, and a damper for setting the optimum signal level contribute to the versatility of this camera. These comprehensive control options can reduce the amount of post-processing required.
Microphone type | Camera microphone |
Microphone Application | Videography |
Audio channel | Mono |
Microphone features | -10 dB cut, 20 dB reduction, Switchable polar pattern |
Signal transmission | Wireless |
Item number | 11481802 |
Manufacturer | Sony |
Category | Microphones |
Manufacturer no. | ECMB1M.SYU |
Release date | 17.7.2019 |
Exact colour description | Black |
Microphone type | Camera microphone |
Microphone Application | Videography |
Instrument microphone type | Other |
Microphone features | -10 dB cut, 20 dB reduction, Switchable polar pattern |
Converter principle | Capacitor |
Polar pattern | Ball, Cardioid, Hypercardioid |
Audio channel | Mono |
Sensitivity | 20 dB |
Dynamic range | 106 dB |
Frequency range | 40 - 20000 Hz |
Connection Detail | Mounting on Sony Multi-Interface Shoe |
Cable length | 0.35 m |
Signal transmission | Wireless |
Power supply | Without external power source |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Sony fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x Sony ECM-B1M microphone, 1x windscreen |
Length | 99.30 mm |
Width | 27.40 mm |
Height | 81.80 mm |
Weight | 77 g |
Length | 15 cm |
Width | 13.60 cm |
Height | 6.40 cm |
Weight | 216 g |
