SparkFun Arduino Pro Mini 328, 3.3V/8MHz
More than 10 pieces in stock at supplier
Product details

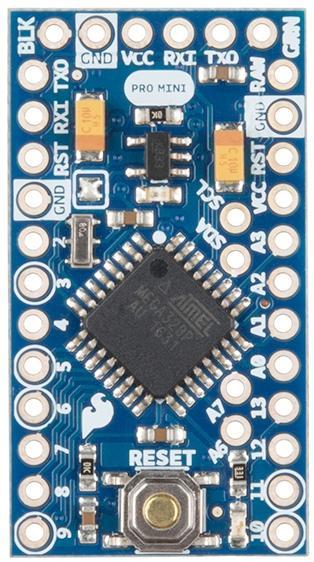

Arduino Pro Mini 328, 3.3V/8MHz
The Arduino Pro Mini is a minimalist design by SparkFun for Arduino. This is a 3.3V Arduino with an 8MHz bootloader. The board comes without pre-installed pin headers, allowing for custom connections or wires to be soldered. It is ideal for experienced users who are familiar with the limitations of system voltage and the absence of connectors and USB outside the board.
Features at a glance
* ATmega328 running at 8MHz
* 3.3V operating voltage
* Supports auto-reset
* Power and status LEDs on the board
* USB connection outside the board
Technical specifications
* Operating voltage: 3.3V
* DC input: 3.3V to 12V
* Analog pins: 8
* Digital I/O pins: 14
* Max output: 150mA
* Dimensions: 18x33mm
* Weight: less than 2 grams
* Low-voltage board, no interface circuitry required for 3.3V devices
* Supports FTDI Basic Breakout Board and auto-reset
* 0.8mm thick board
Other data
* External resonator with 0.5% tolerance
* Overcurrent protection
* OSHW logo
Included in delivery
* 1x Arduino Pro Mini 328
Documents:
* Schematic
* Eagle files
* Getting started tutorial
* Graphic datasheet
* GitHub.
Processor family | AVR |
Processor type | ATmega328 |
Clock speed | 8 MHz |
Item number | 42124739 |
Manufacturer | SparkFun |
Category | Single board computer kits |
Manufacturer no. | DEV-11114 |
Release date | 15.1.2024 |
External links |
Target group | Adults |
Processor family | AVR |
Processor type | ATmega328 |
Clock speed | 8 MHz |
Power supply | USB power delivery |
Operating voltage | 3.30 V |
Analogue inputs | 8 |
Number of I/O | 14 |
CO₂ emissions | 95,84 kg |
Climate contribution | EUR 1,74 |
Scope of delivery | 1x Arduino Pro Mini 328 |
Length | 33 mm |
Width | 18 mm |
Weight | 2 g |
