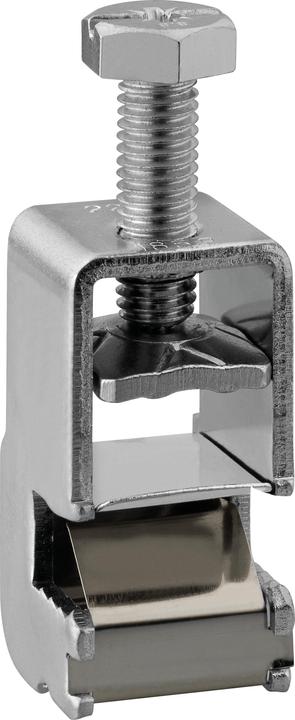

Spelsberg busbar terminal SKLAL 118
Manufacturer: Spelsberg
Designation: Busbar terminal
Type: SKLAL 118
Busbar thickness: 10 mm
Busbar width: 12 to 30 mm
Suitable for: Flat busbar
Width of terminal: 28.5 mm
Max. conductor cross-section: 185 mm²
Max. rated operational current Ie: 500 A
Suitable for round conductor connection: Yes
Suitable for sector conductor connection: Yes
Suitable for strip conductor connection: No

Further details: Busbar terminal for copper busbars 12/20/25/30 x 10 mm, for AL/CU conductors 1x (50-185 mm²) re/rm/rf+AE, 1x (50-185 mm²) SM
Dimensions: 28.5 x 29 x 53 mm
EAN: 4013902623044.
