Spelsberg Busbar terminal
Price in EUR including VAT
Free shipping starting at 30,–

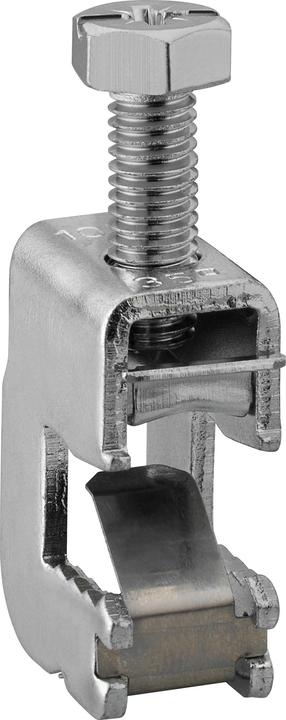

Spelsberg busbar terminal SKLAL 170
Manufacturer: Spelsberg
Designation: Busbar terminal
Type: SKLAL 170
Busbar thickness: 10 mm
Busbar width: 12 to 30 mm
Suitable for: Flat busbar
Terminal width: 20.5 mm
Max. conductor cross-section: 70 mm²
Max. rated operational current Ie: 400 A
Suitable for round conductor connection: Yes
Suitable for sector conductor connection: Yes
Suitable for strip conductor connection: No
Busbar terminal for copper busbars 12/20/25/30 x 10 mm, for connecting AL/CU conductors 16-70 mm²
Dimensions: 20.5 x 28 x 45 mm.
Item number | 36785046 |
Manufacturer | Spelsberg |
Category | Electronics supplies + Casing |
Manufacturer no. | 07617001 |
Release date | 28.6.2023 |
Manufacturer Type | SKLAL 170 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 20, 25, 30 x 10mm, for connection of AL, Busbar terminal, for copper busbars 12, CU conductors 16-70mm² Dimensions: 20.5 x 28 x 45mm |
Length | 45 mm |
Width | 20.50 mm |
Height | 45 mm |
Product Safety |
