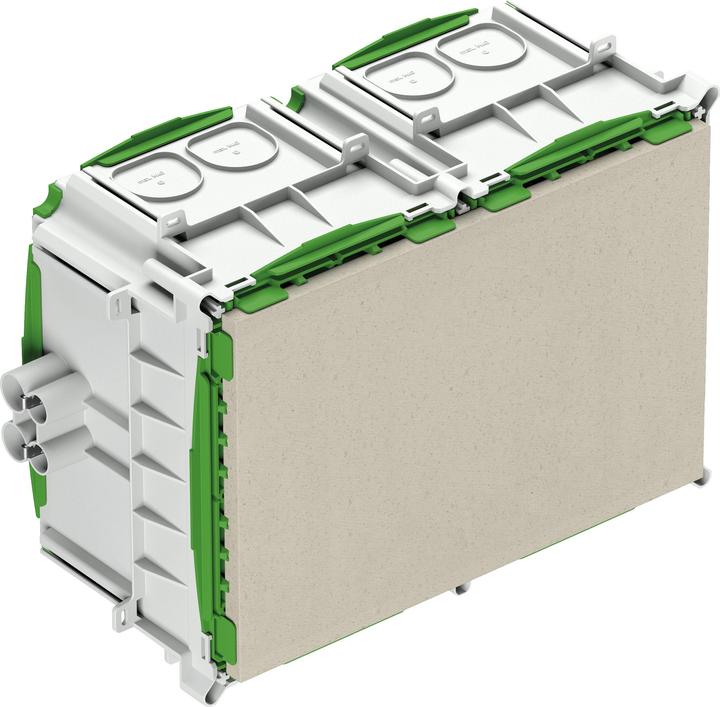

The Spelsberg IBTLED 3 E installation housing is a versatile solution for electrical installations, specifically designed for prefabricated construction. It allows for the installation of low voltage (LV), high voltage (HV), and LED lights, as well as speakers and signaling and calling systems. The housing meets the requirements of VDE-approved luminaires according to DIN EN 60598 and offers high safety with a rated insulation voltage of 400 V AC. With an IP30 protection rating, it is suitable for use in dry indoor environments. The maximum installation height for the installed components is 130 mm, allowing for flexible use. The housing is halogen-free and offers easy installation through various mounting options, including adhesive and nail fastening. The integrated pipe stoppers and strain reliefs ensure secure installation of pipes with diameters of 16 mm and 19 mm.

• Halogen-free material for increased safety
• Maximum lamp power: 100 W for halogen and 47 W for LED
• Versatile combination pipe entries for flexible installations
• Easy installation through adhesive or nail fastening
• IP30 protection rating for use in dry indoor environments.
