USB Standard: USB 2.0
Number of USB Ports: 7
USB Connector Type: USB A
Dimensions: 133 x 61.5 x 36.3 mm
Depth: 61.5 mm
Height: 36.3 mm
Width: 133 mm

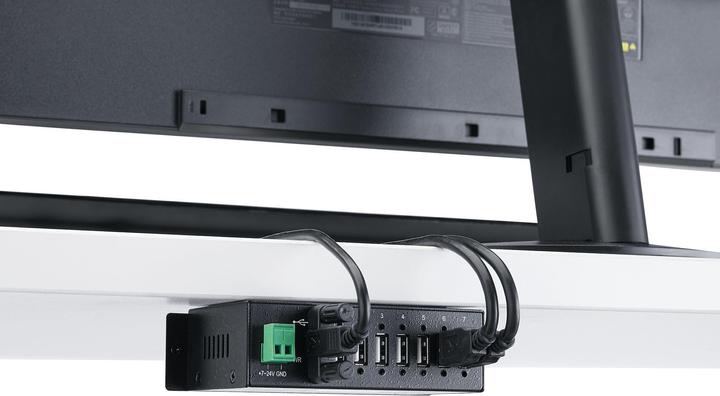

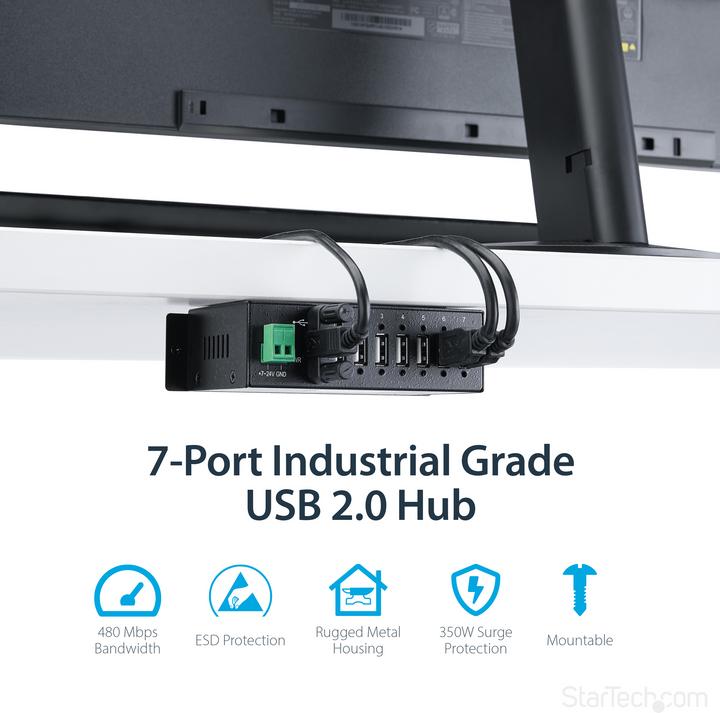

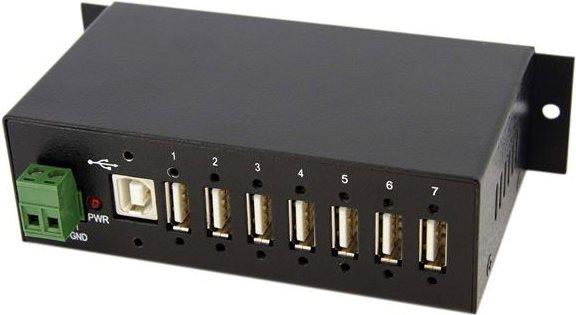

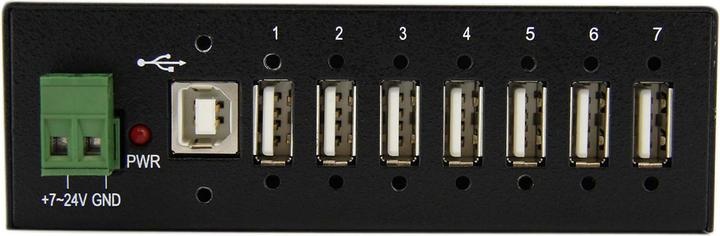

Robust, industrial-grade, mountable USB hub with 7 ports. This heavy-duty USB 2.0 hub is designed for wall mounting or installation on a DIN rail for easy access to its 7 socket USB 2.0 ports. It provides USB 2.0 connectivity for workspaces, server rooms, or industrial environments. Supporting Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 7-port USB hub is backward compatible with USB 1.1 specifications and can be powered via the host USB bus or self-powered using a 3-wire terminal block connector (7–24 V).

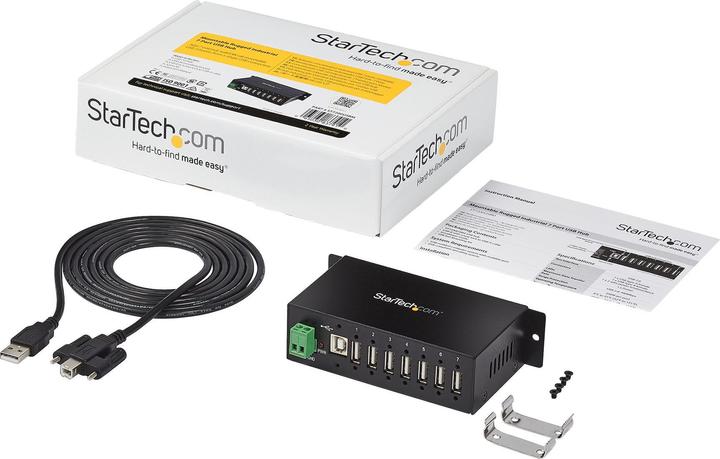

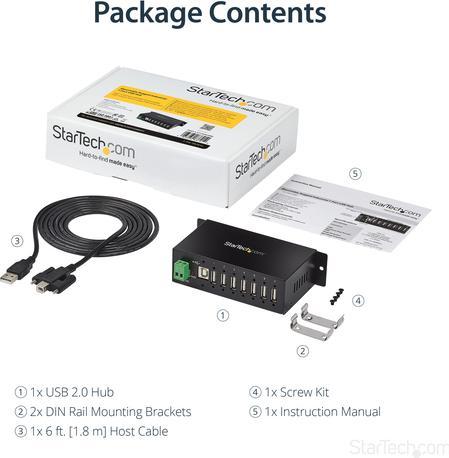

The hub features 7 USB 2.0 ports, powered via USB bus or external terminal block with support for 7 to 24 V DC input. It has a compact and lightweight design with surface or DIN rail mounting options. The housing is entirely metal and meets industrial quality standards. It complies with High-Speed USB 2.0 with transfer rates up to 480 Mbps and provides 350 W surge protection at each USB port. The hub is Plug-and-Play and Hot-Swap compatible and includes a 2-meter USB cable with screw-lock.

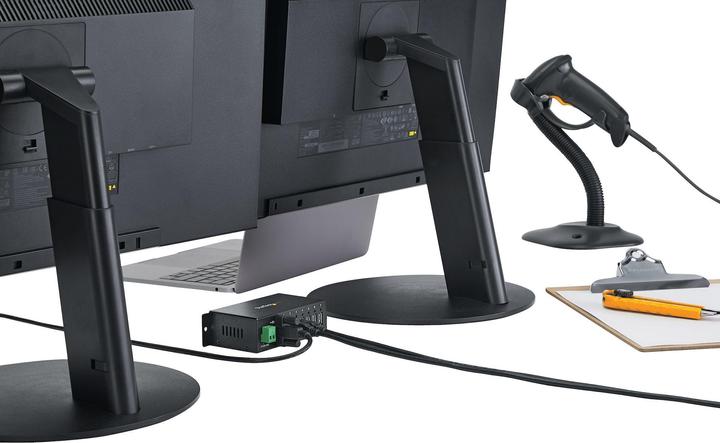

Applications: For adding additional easily accessible USB ports for rack-mounted devices and for installing a USB hub that can be securely mounted on a surface or in a device carrier DIN rail.
