Pressure display type: Differential
Pressure display min.: 0.4 bar
Pressure display max.: 4 bar
Accuracy: 2
Output type: Relay
Medium: Air, fresh water, hydraulic fluid, sea water
Process connection: G1/4
Connection: Cable sleeve PG 13.5
Current max: 3 A AC, 100 mA DC
Supply voltage: 120 to 240 V AC, 250 V DC
Housing material: Zinc alloy
Protection class: IP66
Operating temperature max: +70°C

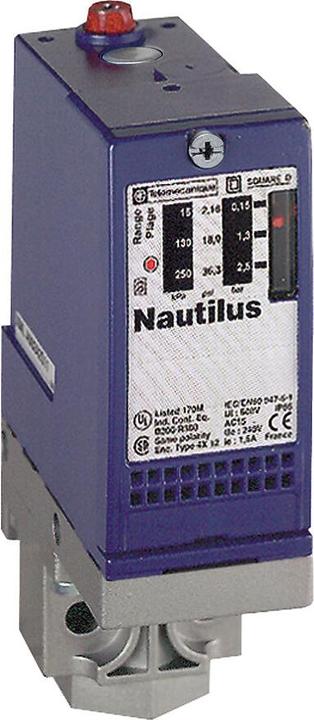

Specified pressure applies "per cycle" and occasionally. OsiSense XMLA pressure switch. Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, seawater, air, steam, corrosive liquids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are designed to detect a single threshold. Fixed differential external pressure setting window available. Snap action contacts: 1 NO and 1 NC. Temperature range: -25 to +70 °C. Protection class: IP65 with plug-in connector, IP66 with terminals. Operating rate: up to 120 operations/min for diaphragm and 60/min for piston. Media connection: 1/4 in. NPT. Empty tube connection: 1/2 in. NPT.
