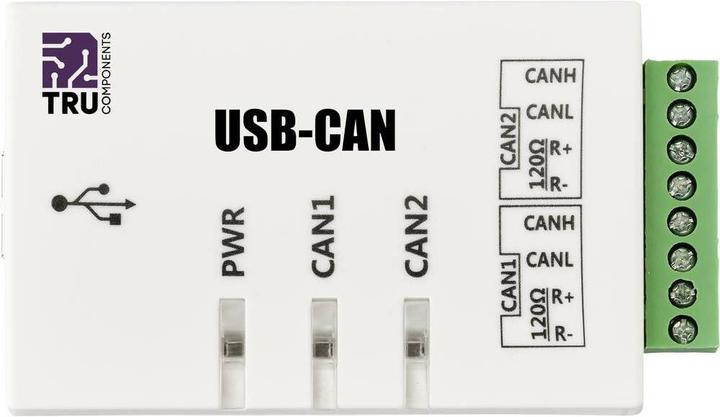

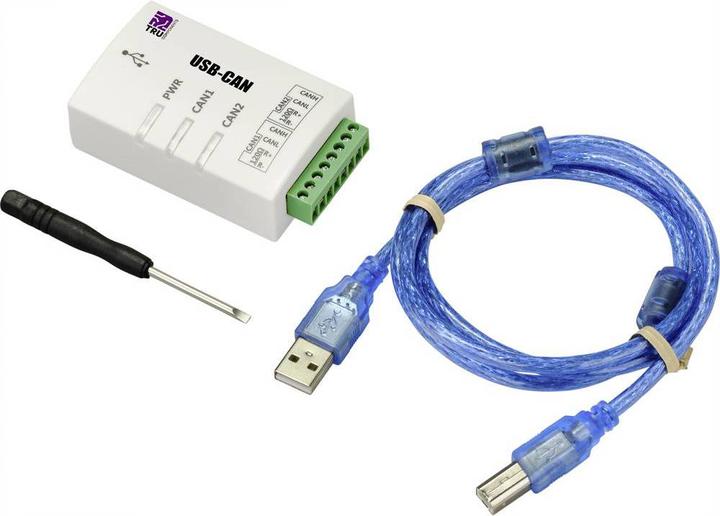

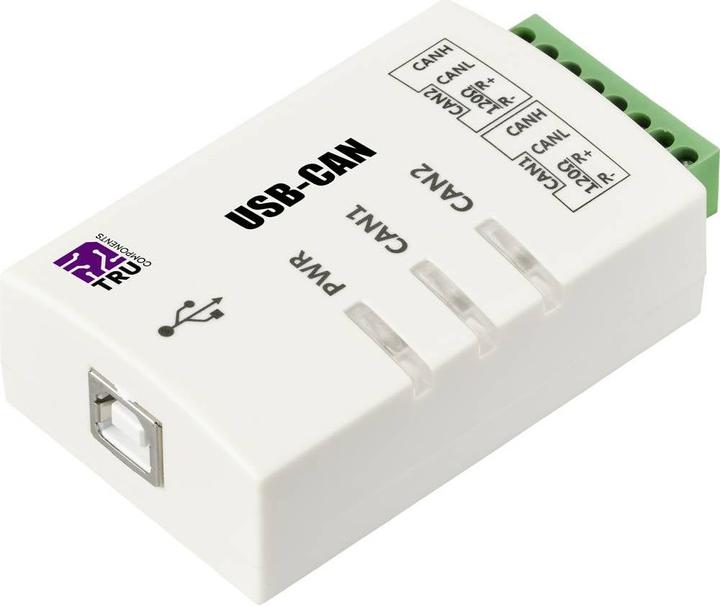

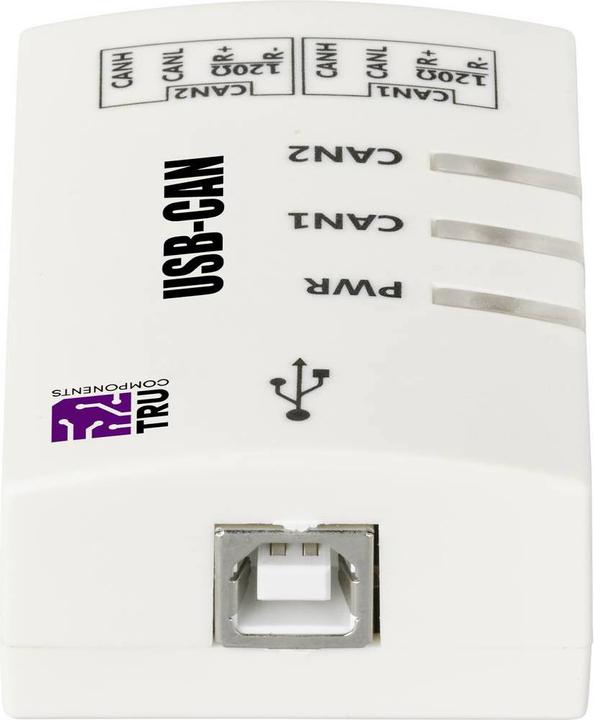

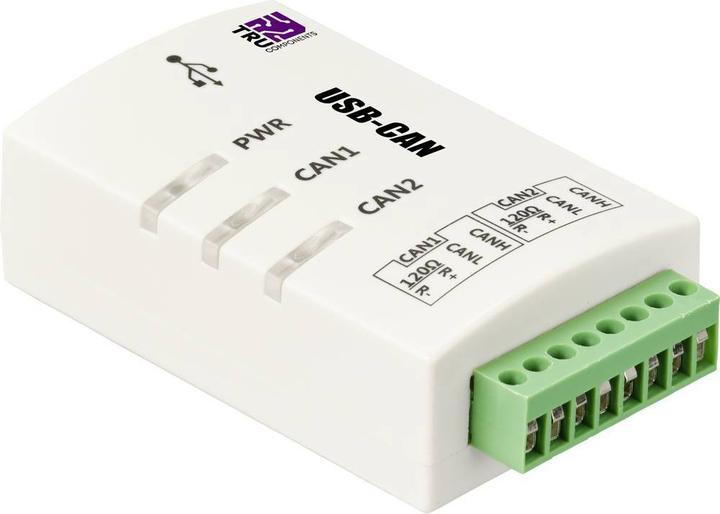

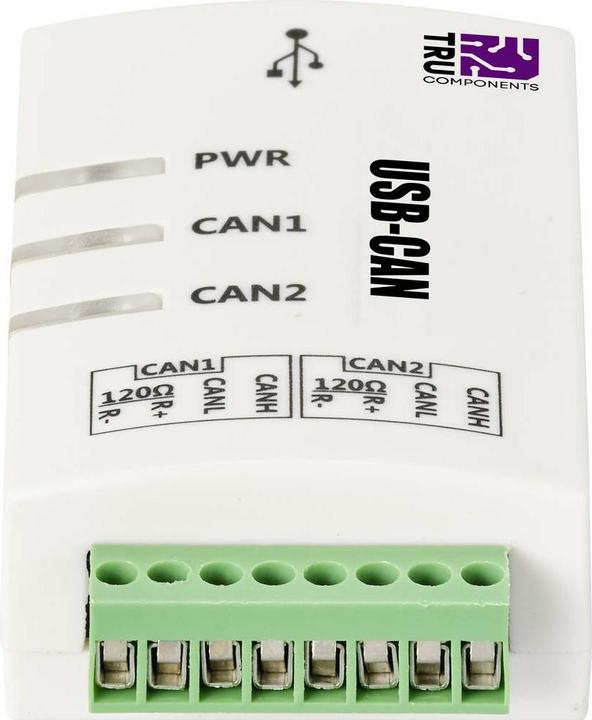

The CAN converter is a powerful DUAL USB to CAN converter that enables an efficient connection between USB and the CAN bus interface. It supports the CAN 2.0 A/B protocols and offers bidirectional transmission, allowing for seamless sending and receiving of CAN data. Power is supplied via the USB bus, eliminating the need for an external power supply. The converter is compatible with USB 1.1 and USB 2.0 and supports both standard and extended frame formats. With a baud rate ranging from 10 kbps to 1 Mbps, the CAN converter is versatile and suitable for various applications. The simultaneous use of two CAN channels allows for high efficiency, as it can receive up to 8500 frames per second and send 500 frames per second. The software configuration of the CAN bus ensures flexible adaptation to specific requirements.

• Supports bidirectional transmission for CAN data
• Compatible with USB 1.1 and USB 2.0
• Two CAN channels can be used simultaneously
• Operating temperature range of -40 °C to +85 °C
• Software-configurable CAN bus.
