Turck Actuator and sensor cable PP-EPDM connection cable WSCV5T-10/TFW

10 m
Price in EUR including VAT
Ratings
BrandMore from Turck
Delivered between Thu, 27.11. and Fri, 12.12.
free shipping

Product details

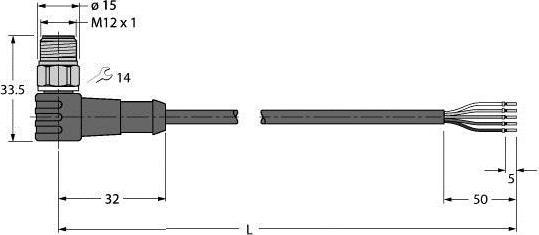

Turck connection cable WSCV5T-10/TFW Manufacturer :Turck Designation :Connection cable Type :WSCV5T-10/TFW Number of poles :5 Electrical connection version, housing side :M12 Type of plug contact, housing side :Male (plug) Cable feed arrangement, housing side :Angled Cable length :10 m Cable sheath material :other Cable sheath colour :white With LED indicator :no Shielded :no Cable type :multi-core Contact body material :CuZn Contact coating material :gold Perm. External cable temperature after installation without vibration :-40..105 °C Perm. Permissible external cable temperature during installation/handling :0...80 °C Rated current In :4 A Rated voltage :60 V Turck connecting cable WSCV5T-10/TFW: further details Actuator and sensor cable / PP-EPDM, connecting cable, M12 plug, angled, 4-pin + PE, union nut/screw in stainless steel, sheath material: PP-EPDM, sheath colour: White, Resistant to acids and alkalis, Resistant to cleaning agents and disinfectants, Hydrolysis-resistant in accordance with DIN EN 60068-2-78, Silicone- and PVC-free, Halogen-free in accordance with DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1, Approvals: Ecolab, FDA, RoHS and REACH compliant, protection class IP67, IP69K, cable length 10 m, EAN: 4047101381412.

Key specifications

Cable length
10 m
Plug type
M12
Item number
36330424

General information

Manufacturer
Turck
Category
Power cables
Manufacturer no.
6934974
Release date
15.6.2023

Power cable properties

Wall socket
M12
Plug type
M12
Plug type
Angled
American Wire Gauge (AWG)
5

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
10 m
