Turck Connection line
1 mProduct details

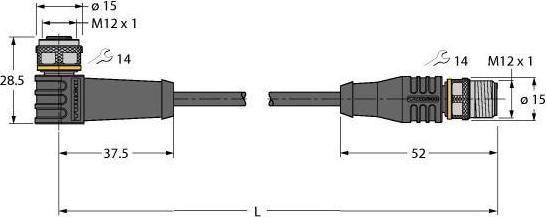

Turck connection cable WKS12T-1-RSS12T/TXL Manufacturer :Turck Designation :PUR connection cable Type :WKS12T-1-RSS12T/TXL Number of poles :12 Type of electrical connection, field side :M12 Type of plug-in contact, field side :male Arrangement of the cable feed, field side :straight Type of electrical connection, housing side :M12 Type of plug-in contact, housing side :female Arrangement of cable entry, housing side :angled Cable length :1 m Material of cable sheath :Polyurethane (PUR) Colour of cable sheath :black With LED display :no Shielded :yes Cable type :multi-core Material of contact base :CuZn Material of contact coating :Gold Perm. Perm. cable outer temperature after assembly without vibration :-50..80 °C Perm. cable outer temperature during assembly/handling :-25..80 °C Rated current In :1.5 A Rated voltage :30 V Turck connection cable WKS12T-1-RSS12T/TXL: further details Actuator and sensor cable / PUR, connection cable, M12 coupling, angled, 12-pole, shield connected to coupling nut/screw, sheath material: PUR, shielded, sheath colour: black, Suitable for drag chains, Resistant to welding sparks, Resistant to chemicals, UV and oil, Flame-retardant, Free of halogen, silicone, PVC and LABS, Particularly abrasion-resistant, Approval: cULus, RoHS-compliant, Protection class IP67, Cable length 1 m, M12 connector, straight, 12-pin , EAN: 4047101334869.
Cable length | 1 m |
Plug type | M12 |
Item number | 36814026 |
Manufacturer | Turck |
Category | Power cables |
Manufacturer no. | 6626943 |
Release date | 28.6.2023 |
Cable colour | Black |
Material of the isolation | Polyurethane |
Wall socket | M12 |
Plug type | M12 |
Plug type | Angled |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Cable length | 1 m |
