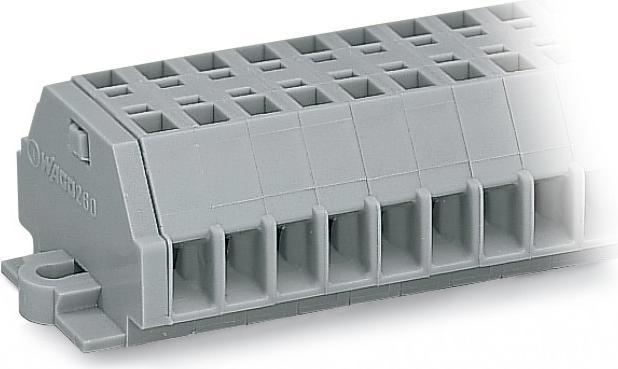

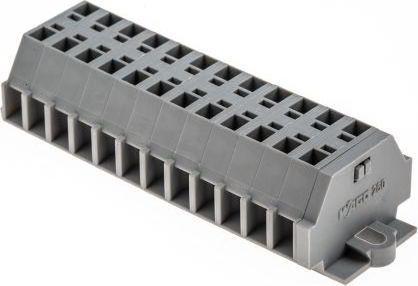

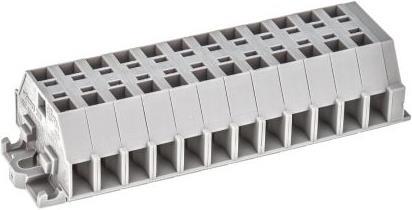

Wago 12 way side entry cage clamp terminal
Product details
Series: 260
Wire size: 28 → 16 AWG
Cable cross-section: 0.08 → 1.5 mm²
Color: Gray
Rated current: 18 A
Connection type: Terminal
Operating voltage: 400 V
Pitch: 5 mm
Spring clamp terminal. Screwdriver-operated spring clamp connection blocks with side entry, featuring mounting flanges at both ends. A mounting adapter for DIN rails for screw mounting in the base of the terminal block is also available. A maximum distance of 35-40 mm between the adapters is recommended. Order number 101-3877 (WAGO 209-123) is a mounting foot with a screw for DIN-35 rail. It can be screwed onto terminal blocks with mounting flanges. Suitable for spring clamp terminals – modular terminal blocks Series 260, 261, and 262. Features and benefits: 2 conductor through connection terminal block, 6 kV surge voltage. 101-3877 is a mounting foot with a screw for DIN 35 rail.
Item number | 9942885 |
Manufacturer | Wago |
Category | Electronics supplies + Casing |
Manufacturer no. | 260-112 |
Release date | 22.10.2018 |
External links |
Colour | Grey |
Compatible hardware | Various |
Manufacturer Type | 260-112 |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 25 x |
Scope of delivery | 2-wire terminal block 1.5mm², without push-buttons, with mounting flanges, 12-pin, for screw and screwless connections., or screw fastening types, fastening hole Ø 3.2 mm, 1.5 mm² CAGE CLAMP® 1.50 mm² grey |

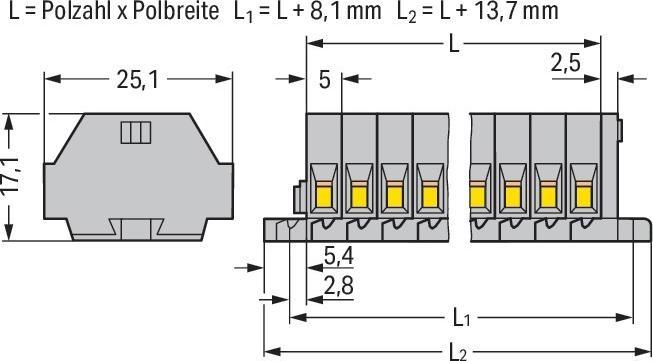

Length | 17.10 mm |
Width | 73.70 mm |
Height | 25.10 mm |
Length | 13.20 cm |
Width | 7.60 cm |
Height | 2.10 cm |
Weight | 23 g |
