WAGO GmbH & Co. KG Terminal Block 745-302

Manufacturer: WAGO GmbH & Co. KG
Designation: Terminal block 6 mm² 2-pole
Type: 745-302

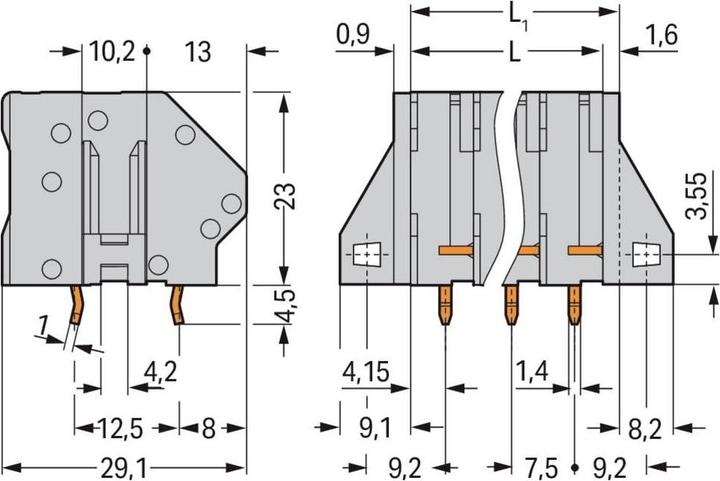

Height: 23 mm
Number of electrical connections: 2
Number of levels: 1
Pitch of connections: 7.5 mm
Angle of PCB/lead connection: 45°/135° (angled upwards)

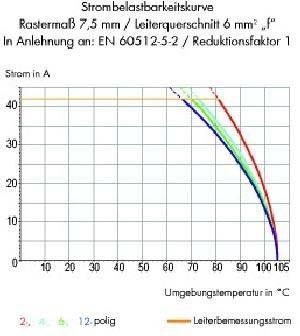

Rated current In: 41 A
Rated voltage: 630 V
Rated surge voltage: 6 kV
Overvoltage category: III
Degree of pollution: 2
Connection type for conductor: Spring clamp connection
Connectable conductor cross-section solid: 0.2..6 mm²
Connectable conductor cross-section stranded with ferrule: 0.25..4 mm²
Connectable conductor cross-section stranded without ferrule: 0.2..6 mm²
Connectable conductor cross-section multi-stranded: 0.2..6 mm²
Connection type for PCB: Solder connection
Material of connection surface: Tin
Pin length: 4.5 mm
Material of insulating body: Thermoplastic
Housing color: gray
Flammability class of insulating material according to UL 94: V0
Operating temperature: -60..105 °C
Type of PCB mounting: Connection contact
Mounting method: Soldering
Type of banding: none

WAGO GmbH & Co. KG Terminal Block 745-302: additional details
PCB terminal 6 mm² pitch 7.5 mm 2-pole CAGE CLAMP® bridging possibility 6.00 mm² gray, EAN: 4044918302074.
