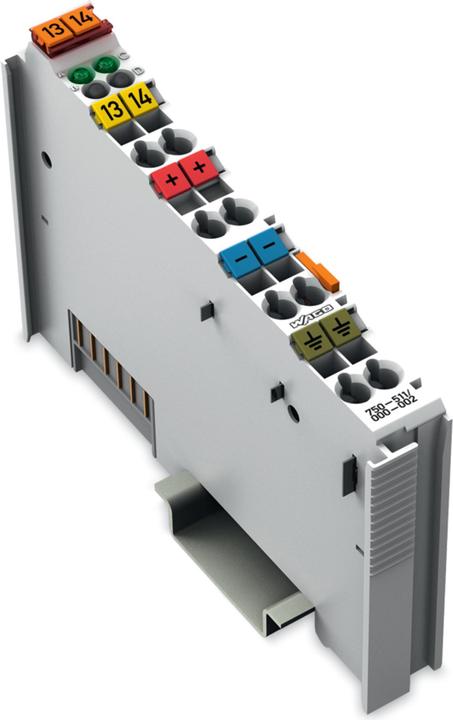

The Wago 750-511/000-002 is an electronic module designed as a 2-channel pulse width output terminal. It enables the modulated transmission of 16-bit information via pulse widths, with galvanic isolation ensured to the field side. With a maximum output voltage of 24 V and a current of 0.1 A at a frequency of 100 Hz, this module offers a reliable solution for various applications in automation technology. The outputs are short-circuit proof, enhancing the safety and longevity of the module. The decoupling of 0.5 kV provides additional protection against electrical disturbances. Its compact design allows for easy integration into existing systems.
Scope of delivery | 2 pulse width outputs DC 24 V 0.1 A 100 Hz |
Compatible hardware | Various |
Item number | 33376296 |
Manufacturer | Wago |
Category | Electronics modules |
Manufacturer no. | 750-511/000-002 |
Release date | 17.5.2023 |
Compatible hardware | Various |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 pulse width outputs DC 24 V 0.1 A 100 Hz |
Length | 100 mm |
Width | 12 mm |
Height | 64 mm |
Weight | 53.50 g |
