Input type: AC/DC current
Output type: Analog, digital, relay
Signal shaper type: Current transformer
Input range: -100 to 100 A (DC), 500 mA to 100 A (AC)
Output range: ± 10 V, ± 20 mA
Supply voltage: 24 V DC
Mounting type: DIN rail
Operating temperature min: -40°C
Operating temperature max: +70°C
Operating temperature range: -40 to +70 °C

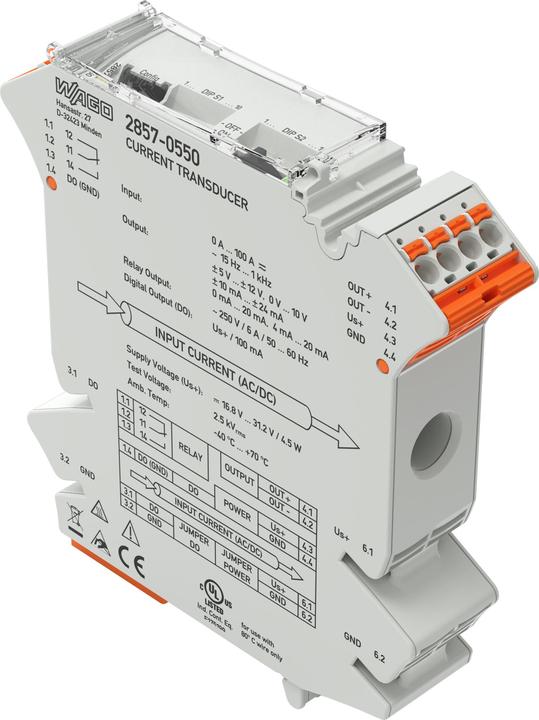

The 2857 series current signal converter from Wago measures AC/DC currents up to 100 A while converting the measured current to a standard analog signal at the output. It provides a digital signal output and a relay with changeover contact. Features include a limiting function that allows restriction of standard analog signals to upper range values, an adjustable software filter, input/output response simulation via configuration display, and safe 3-pole isolation with a 4 kV test voltage according to EN 61140.
