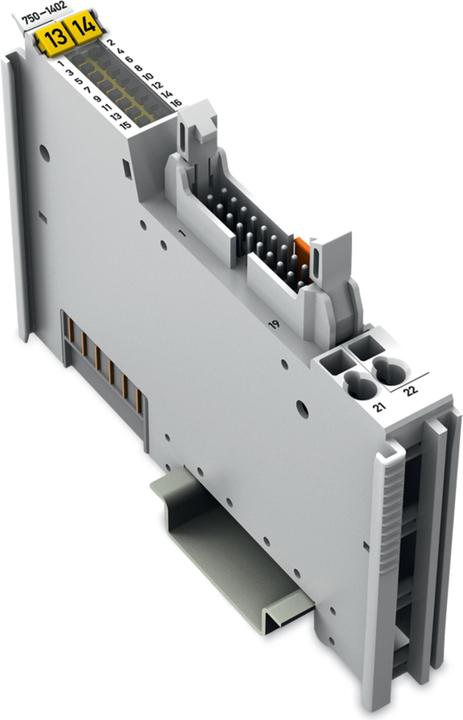

Wago Digital I/O Module DC Series 750 18-31.2V 750-1402
Price in EUR including VAT
free shipping

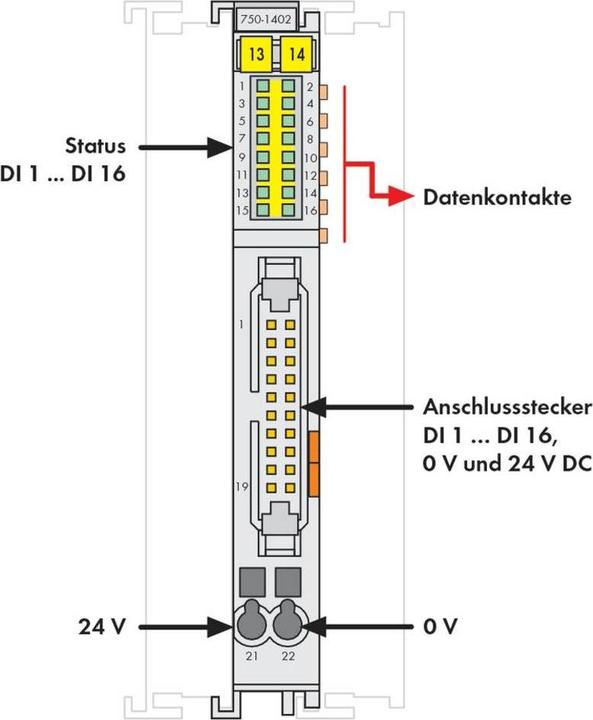

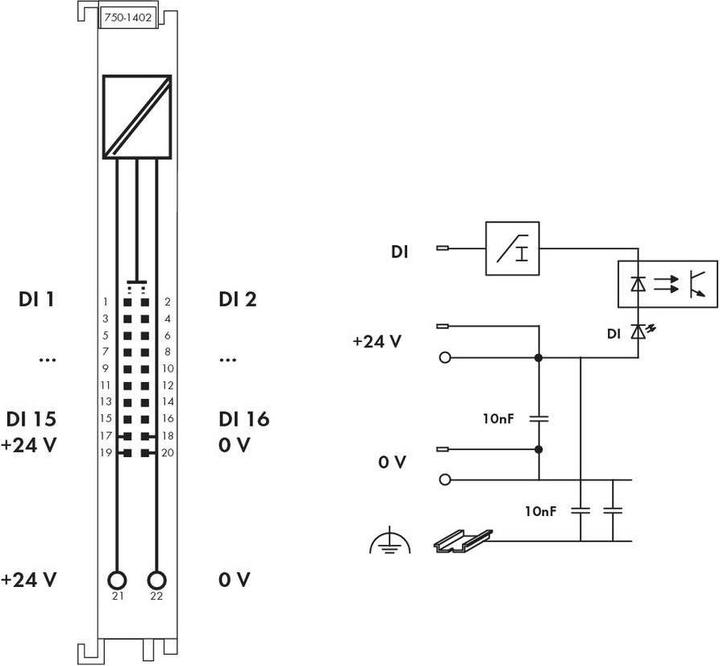

16-channel digital input, DC 24 V, 3 ms, negative switching, flat ribbon cable. The digital input module features 16 channels with a width of only 12 mm. It captures binary control signals from the field area, such as from sensors, transducers, switches, or proximity switches. The module allows the connection of electronic components via a 20-pin flat ribbon cable. The 24V supply voltage for the components can be fed through two CAGE CLAMP connections. Each input channel is equipped with an RC filter for interference suppression, with a time constant of 3.0 ms. The signal state of each channel is indicated by a green status LED. The field and system levels are galvanically isolated from each other.
Scope of delivery | 1 |
Compatible hardware | Various |
Item number | 33582684 |
Manufacturer | Wago |
Category | Electronics modules |
Manufacturer no. | 750-1402 |
Release date | 17.5.2023 |
Compatible hardware | Various |
Shield | I/O shield |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 |
Length | 100 mm |
Width | 12 mm |
Height | 64 mm |
Weight | 41.50 g |
