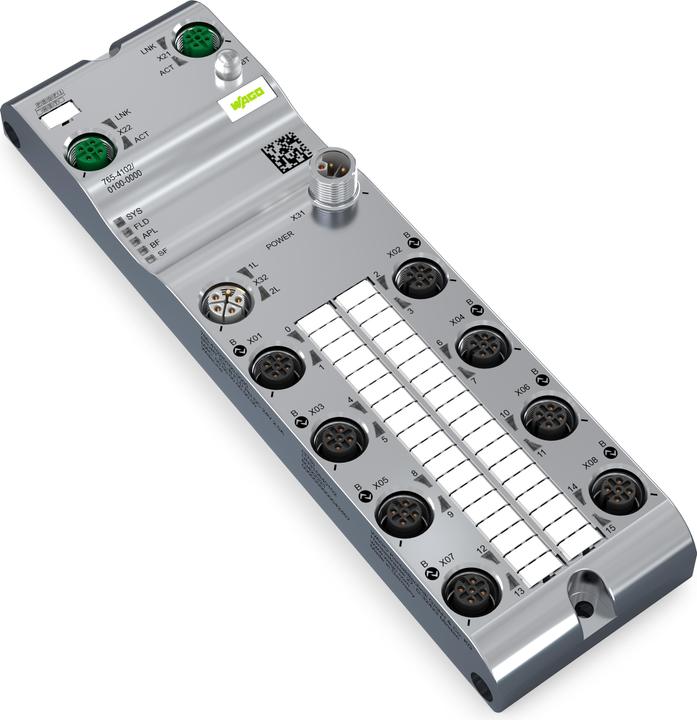

8-Port IO-Link Master Class B
Profinet
DC 24 V / 2.0 A
8x M12 Connection
WideLine Application Area:
Decentralized processing of digital and IO-Link signals
The device is used to control IO-Link capable digital field devices (e.g., actuators and hubs) and to capture digital signals from IO-Link capable field devices (e.g., sensors and hubs) that are sent or received by a higher-level controller. The device is designed as a Class B master and offers 8 IO-Link ports or 8 digital inputs/outputs.
IO-Link:
The device features multiple IO-Link communication interfaces for collaboration with IO-Link devices. The IO-Link interface allows direct access to process and diagnostic data and provides the ability to adjust the parameters of connected devices during operation. The IODD can also be downloaded via the IODDfinder.
Item number | 34147996 |
Manufacturer | Wago |
Category | Development boards + Kits |
Manufacturer no. | 765-4102/100-000 |
Release date | 17.5.2023 |
Power supply | Electrical connection |
Operating voltage | 24 V |
Wireless transmission | Bluetooth |
Number of I/O | 8 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2x M12 cover caps for unoccupied sensor- and, Actuator connections |
Length | 210 mm |
Width | 60 mm |
Height | 30 mm |
Weight | 610 g |
