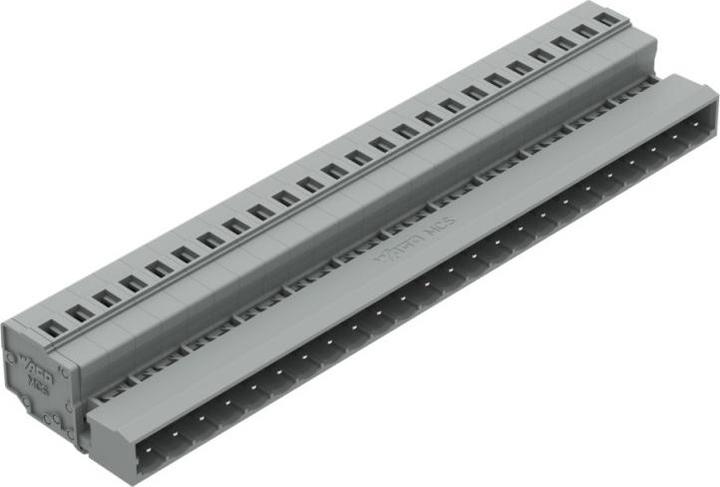

WAGO GmbH & Co. KG male connector with snap-in feet 231-624/018-000.
Description: Male connector with snap-in feet, 5.00 mm, 24-pole, grey.
Type: 231-624/018-000.
Connection type: PCB to cable.
Contact version: Pin.
Number: 24.
Number of rows of plug-in contacts: 1.
Contact pitch: 5 mm.
Terminal pitch: 5 mm.
Angle of contact/conductor connection: 180° (horizontal).
Rated current: 12 A.
Rated voltage: 320 V.
Rated impulse voltage: 4 kV.
Overvoltage category: III.
Degree of pollution: 2.
Connectable conductor cross-section flexible without ferrule: 0.08 to 2.5 mm².
Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm².
Connectable solid conductor cross-section: 0.08 to 2.5 mm².
Connectable conductor cross-section stranded: 0.08 to 2.5 mm².
Electrical connection type: spring-loaded connection.
Connectable cable type: round cable.
Material of contact coating: tin.
Material of contact: other copper alloys.
Material of insulating body: thermoplastic.
Material of housing: plastic.
Coating of housing: uncoated.
Housing colour: grey.
Flammability class of insulating material according to UL 94: V0.
With protective conductor: no.
Operating temperature: -60 to 100 °C.
Protection class (IP), mounted: IP10.
Further details: 1-conductor male connector CAGE CLAMP® 2.5 mm² pitch 5 mm, 24-pole, TS 35/surface mount snap-in feet, 2.50 mm², grey. EAN: 4044918259347.
Cable + connector type | Various |
Item number | 36767191 |
Manufacturer | Wago |
Category | Cables + Plugs |
Manufacturer no. | 231-624/018-000 |
Release date | 28.6.2023 |
Minimum order | 10 |
Order quantity steps | 10 |
Colour | Grey |
Material group | Plastic |
Material | Polyamide |
Cable + connector type | Various |
Max. temperature | 100 °C |
Min. temperature | -60 °C |
Manufacturer Type | 018-000, 231-624 |
Connectors Design | Plug, straight |
Number of cores | 24 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 2.75 cm |
Width | 12.32 cm |
Height | 1.88 cm |
