Wago Pin header
Minimum order 10Price in EUR including VAT
free shipping

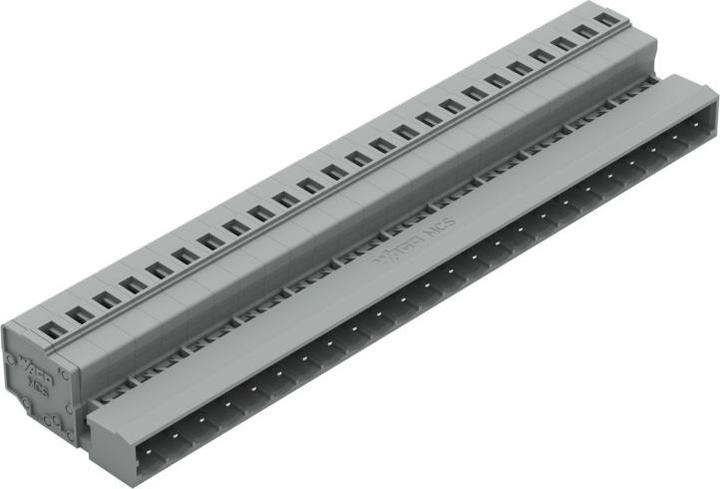

WAGO GmbH & Co. KG male connector 231-624. Manufacturer: WAGO GmbH & Co. KG. Designation: Male connector, 24-pin. Type: 231-624. Connection type: PCB to cable. Contact design: Pin. Number of poles: 24. Number of rows of plug-in contacts: 1. Contact pitch: 5 mm. Terminal pitch: 5 mm. Angle contact/conductor connection: 180° (horizontal). Rated current: 12 A. Rated voltage: 320 V. Rated impulse voltage: 4 kV. Overvoltage category: III. Pollution degree: 2. Connectable conductor cross-section flexible without ferrule: 0.08 to 2.5 mm². Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm². Connectable solid conductor cross-section: 0.08 to 2.5 mm². Connectable conductor cross-section stranded: 0.08 to 2.5 mm². Electrical connection type: spring-loaded connection. Connectable cable type: round cable. Material of contact coating: tin. Material of contact: other copper alloys. Material of insulating body: thermoplastic. Material of housing: plastic. Coating of housing: uncoated. Housing colour: grey. Flammability class of insulating material according to UL 94: V0. With protective conductor: no. Operating temperature: -60 to 100 °C. Protection class (IP), mounted: IP10. WAGO GmbH & Co. KG male connector 231-624: further details 1-conductor male connector CAGE CLAMP® 2.5 mm², spacing 5 mm, 24-pole, 2.50 mm², grey. EAN: 4044918259330.
Cable + connector type | Cords |
Cable length | 0.03 m |
Item number | 36768858 |
Manufacturer | Wago |
Category | Cables + Plugs |
Manufacturer no. | 231-624 |
Release date | 28.6.2023 |
Minimum order | 10 |
Order quantity steps | 10 |
Colour | Grey |
Material group | Plastic |
Material | Plastic, Polyamide, Zinc alloy |
Cable + connector type | Cords |
Compatible hardware | Various |
Max. temperature | 100 °C |
Min. temperature | -60 °C |
Cable length | 0.03 m |
Manufacturer Type | 231-624 |
Connectors Design | Plug, straight |
Number of cores | 24 x |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 2.75 cm |
Width | 12.32 cm |
Height | 1.43 cm |
