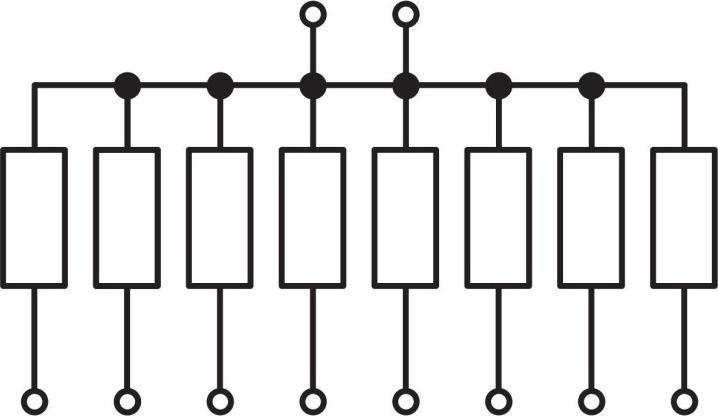

WAGO GmbH & Co. KG Resistance gate 289-113 Manufacturer :WAGO GmbH & Co. KG Designation :Resistance gate 8 diodes without mounting plate Type :289-113 Explosion-tested version "Ex e" :no Connectable conductor cross-section fine stranded without ferrule :0.08..2.5 mm² Connectable conductor cross-section finely stranded with ferrule :0.25..1.5 mm² Connectable conductor cross-section solid :0.08..2.5 mm² Connectable conductor cross-section stranded :0.08..2.5 mm² Rated current In :0.004 A Rated voltage :40 V Electrical connection version 1 :Spring-cage connection Electrical connection version 2 :Spring-cage connection Number of levels :1 Number of terminals per level :10 Levels internally bridged :no Mounting type :other Insulator material :Thermoplastic Operating temperature :-25..40 °C Flammability class of the insulating material according to UL 94 :V0 Width :45.5 mm Height :65.5 mm Depth :32 mm End plate required :no Colour :grey Component type :Resistor WAGO GmbH & Co. KG Resistor gate 289-113: more details Component module with resistor with 8 pieces Resistor 2K2 1 Watt 2.50 mm² , EAN: 4045454192785.
Compatible hardware | Various |
Item number | 36747988 |
Manufacturer | Wago |
Category | Electronics modules |
Manufacturer no. | 289-113 |
Release date | 28.6.2023 |
Compatible hardware | Various |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 32 mm |
Width | 42.50 mm |
Height | 65.50 mm |
