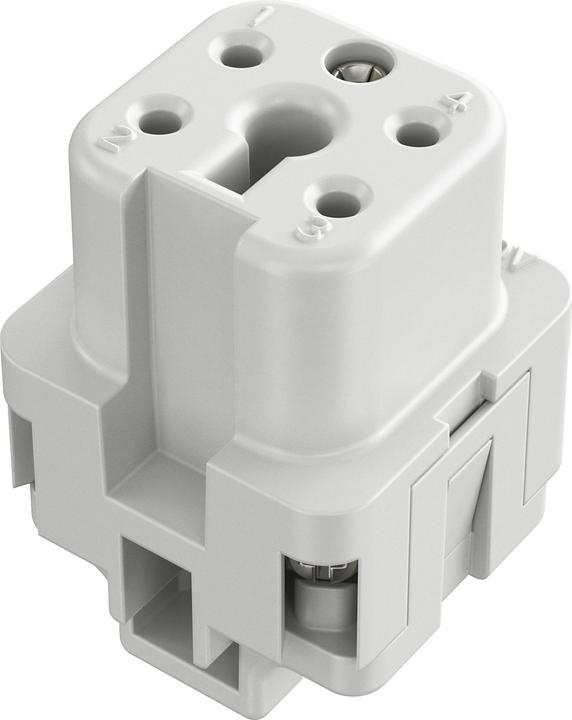

The Walther Werke socket insert A4 (Type 700104) is a high-quality electronic cable and connector interface designed for a wide range of applications in electrical engineering. With a pole count of 4 and a connection cross-section of 0.5 to 1.5 mm² (20-16 AWG), this socket insert provides a reliable connection for electrical systems. The insert is made from robust thermoplastic, ensuring high resistance to extreme temperatures ranging from -40 to 125 °C. The design allows for easy installation through a screw connection, providing a secure connection without wire protection. The socket insert is suitable for various applications and meets the requirements of overvoltage category III and pollution degree 3. With a flammability rating of V0 according to UL 94, the insert is also optimized for fire safety.

• Operating temperature of -40 to 125 °C
• Rated current of 10 A
• Rated and rated impulse voltage of 230 V and 4 kV respectively
• Minimum number of mating cycles: 500
• Contact coating material: Silver.
