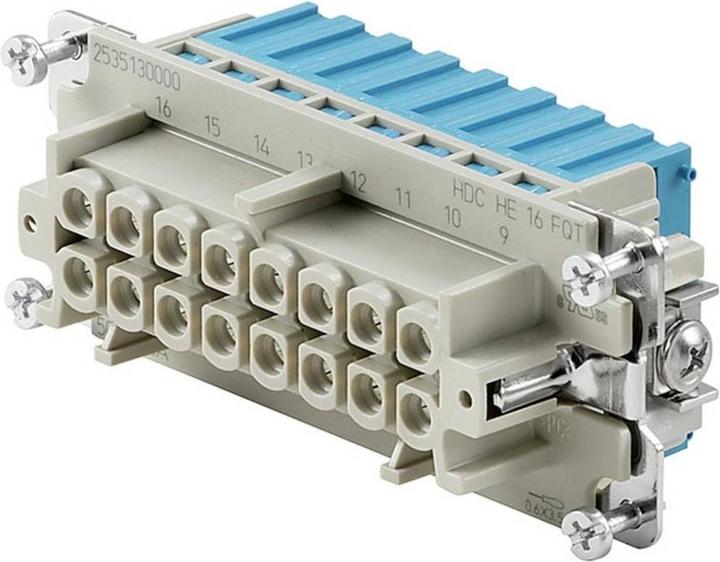

Weidmüller contact insert HDC HE 16 FQT

Manufacturer: Weidmüller
Designation: Female contact insert
Type: HDC HE 16 FQT
Contact insert without contacts: No
Contact design: Female
Number of poles: 16
Material of the connector insert: Thermoplastic
Rated current: 16 A
Operating temperature: -40 to 125 °C
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Pollution degree: 3
Electrical connection type: Other
With wire protection: No
Connectable conductor cross-section flexible without ferrule: 1 to 2.5 mm²
Connectable fine-stranded conductor cross-section with wire end ferrule: 1 to 2.5 mm²
Connectable conductor cross-section solid: 1 to 2.5 mm²
Connectable conductor cross-section stranded: 1 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Width: 34 mm
Height: 36.3 mm
Depth: 84.5 mm

Weidmüller contact insert HDC HE 16 FQT: Further details include an insert for industrial connectors, consisting of a contact element and insulating body. EAN: 4050118578232.
