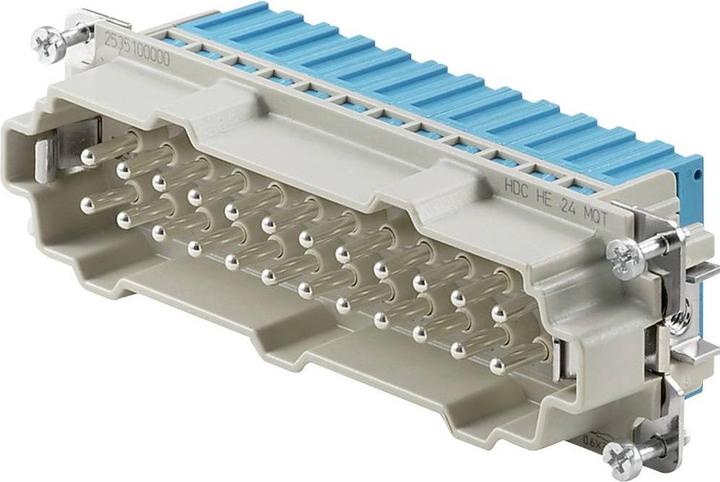

Weidmüller contact insert HDC HE 24 MQT

Manufacturer: Weidmüller
Designation: Contact insert pin
Type: HDC HE 24 MQT
Contact insert without contacts: No
Contact design: Pin
Number of poles: 24
Material of connector insert: Thermoplastic
Rated current In: 16 A
Operating temperature: -40 to 125 °C
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Degree of pollution: 3
Electrical connection design: Other
With wire protection: No
Connectable conductor cross-section fine-wire without ferrule: 1 to 2.5 mm²
Connectable conductor cross-section finely stranded with wire end ferrule: 1 to 2.5 mm²
Connectable conductor cross-section solid: 1 to 2.5 mm²
Connectable conductor cross-section stranded: 1 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material to UL 94: V0
With protective conductor: Yes
Width: 34 mm
Height: 36.9 mm
Depth: 111 mm

Weidmüller contact insert HDC HE 24 MQT: Further details include an insert for industrial connectors, consisting of a contact element and insulating body. EAN: 4050118578249.
