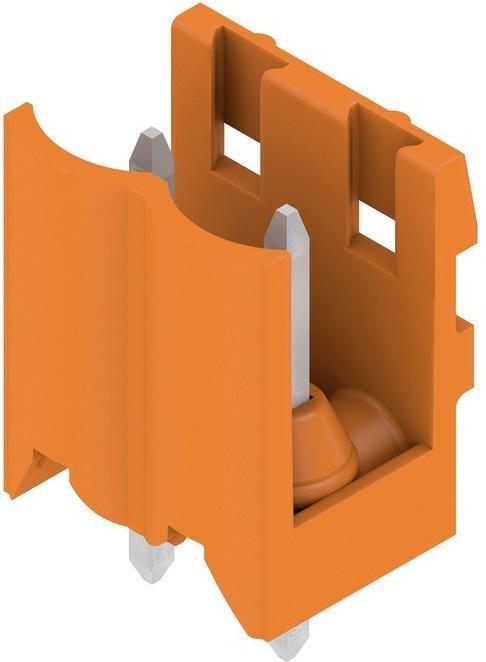

Weidmüller PCB Connector SL5.00/2/180 3.2SNOR

Manufacturer: Weidmüller
Description: PCB connector 2p., solder connection
Type: SL5.00/2/180 3.2SNOR
Connection type: flexible PCB connector
Connector design: fixed connector
Contact design: pin
Number of poles: 2
Number of contact rows: 1
Contact pitch: 5 mm
Connection pitch: 5 mm
Angle PCB/contact: 90° (vertical upwards)
Rated current In: 15 A
Rated voltage: 320 V
Rated surge voltage: 4 kV
Overvoltage category: II
Degree of pollution: 2
Contact coating material: tin
Electrical connection type: THR connection
Pin length: 3.2 mm
Insulator material: thermoplastics
Housing color: orange
Flammability class of insulating material according to UL 94: V0
Operating temperature: -50..100 °C
Type of PCB mounting: other
Mounting type: soldering
Type of banding: other

Weidmüller PCB Connector SL5.00/2/180 3.2SNOR: additional details
Plug-in PCB connector with innovative connection technology for secure and intuitive handling.

Key specifications

Cable + connector type
Various
Item number
36811166

General information

Manufacturer
Weidmüller
Category
Cables + Plugs
Manufacturer no.
1581320000
Release date
28.6.2023

Colour

Colour
Orange

Material

Material group
Plastic
Material
Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Max. temperature
100 °C
Min. temperature
-50 °C
Manufacturer Type
180 3.2SNOR, 2, SL5.00
Number of cores
2 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
0.32 cm
