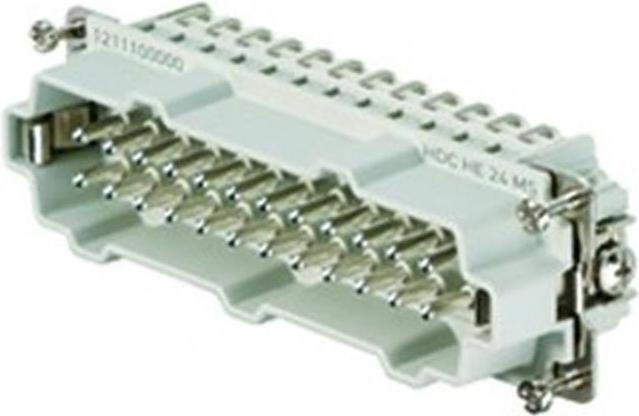

Weidmüller pin insert HDC HE 24 MS

Manufacturer: Weidmüller
Designation: Pin insert 24p 450V 16A
Type: HDC HE 24 MS
Contact insert without contacts: No
Contact design: Pin
Number of poles: 24
Material of connector insert: Thermoplastic
Rated current: 16 A
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Degree of pollution: 3
Electrical connection type: Screw connection
With wire protection: Yes
Connectable conductor cross-section flexible without ferrule: 0.5 to 2.5 mm²
Connectable conductor cross-section finely stranded with ferrule: 0.5 to 2.5 mm²
Connectable conductor cross-section solid: 0.5 to 2.5 mm²
Connectable conductor cross-section stranded: 0.5 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Width: 34 mm
Height: 35.7 mm
Depth: 111 mm

Weidmüller pin insert HDC HE 24 MS: Further details
Insert for industrial connectors, consisting of contact element and insulating body.
EAN: 4008190181703.
