Series: ZDU
Wire size: 30 → 12 AWG
Wire cross-section: 2.5 mm²
Color: Brown
Rated current: 31A
Number of levels: Single
Connection type: Terminal block
Operating voltage: 800 V
Minimum operating temperature: -50°C
Maximum operating temperature: +120°C

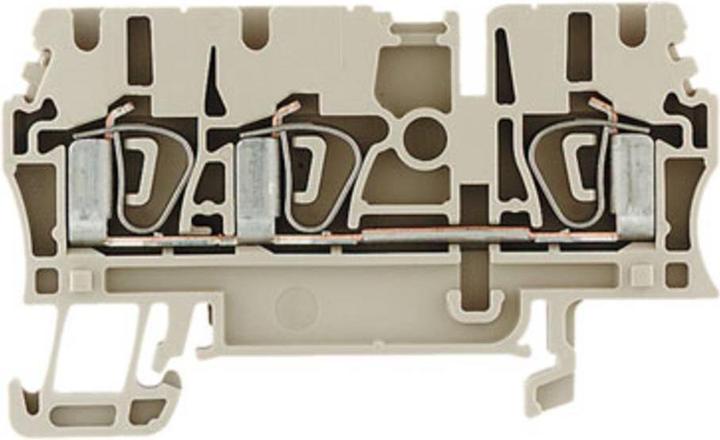

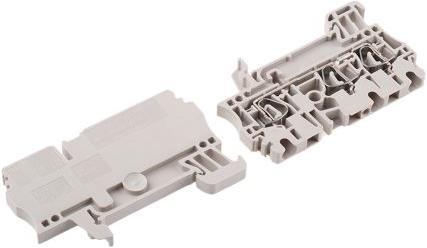

Through terminals, Z series, Weidmüller. The modular terminals with spring clamp connections of the Z series have been specifically designed to meet customer requirements: compact design, generous labeling areas, integrated test contact, cross-connection options within the Z series and with other modular terminals from Weidmüller. The terminals of the Z series have a large clamping range and can accommodate one or two cross-connection channels. The standard plug-in cross-connections allow for the distribution of potentials across any number of terminals. Features and benefits include availability in one, two, three, and four levels, spring clamp technology, and a variety of colors.
