Best selling Audio effects from Palmer Audio
On this page you’ll find a ranking of the best Audio effects from Palmer Audio. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Palmer Audio BRIDGE 4A - 4-channel active DI box in 19" rack format
The Palmer BRIDGE 4A is a 4-channel active DI box for 19-inch rack mounting. It balances and matches the impedance of audio signals from guitars, basses, keyboards, and synthesizers. Through galvanic isolation, it eliminates hum caused by ground loops. The higher output level surpasses that of passive DI boxes. The sturdy 1U rack mount offers four independent channels in black.
2. Palmer Audio Passive DI Box 1-Channel Pro PAN
Passive DI box with a 1/4" input and parallel output for signal looping. Features a transformer-balanced XLR output and a switchable input sensitivity. Capable of handling both line and speaker signal levels.
3. Palmer Audio NC5FD-L-1
You've found your sound, but it comes across differently on every stage?
The Palmer ilm Speaker Simulation DI Box eliminates all uncertainties of amp recording, such as microphone choice, acoustic environment, and positioning. With a sophisticated filter circuit that simulates the sound behavior of a speaker, it captures your sound authentically, without the need for a microphone. Its direct signal always sounds the same, whether at home, in a (home) studio, in a rehearsal room, or on stage, regardless of size.
The Palmer ilm offers three sound presets that represent typical guitar cabinet models. Flowery names are left to others; at Palmer ilm, they are simply called "normal," "mellow," and "bright." That way, everyone knows what is meant!
Typically, the Palmer ilm is inserted between the amp output and the speaker; however, it can also be used at the line out of the amplifier. For level adjustment, the ilm features a pad switch with three settings: 0, -15, and -30 dB.
To prevent unwanted noise when connecting to a mixing console or audio interface, the ilm is balanced via a transformer. The ground lift switch helps eliminate hum loops. You can always rely on the Palmer ilm—and focus entirely on what truly matters: your music and your instrument.
4. Palmer Audio PDI 06 L16 Power Attenuator
Palmer Power Attenuator - Control the Volume of Your Guitar Amplifier
The PDI06 is a power attenuator designed for live use. The device is connected between the amplifier output and the speaker cabinet. It allows you to take advantage of the desirable power tube distortion from tube amplifiers while reducing the associated high volume. The volume can be practically reduced for stage and rehearsal room conditions in 6 steps from 100% to 18%. An additional setting completely mutes the speaker, allowing the PDI06 to function as a load box, absorbing the full power delivered by the amplifier.
This operating mode is useful when you want to play directly into the mixing console via an existing line output from the amplifier that features speaker emulation, and where volume in the recording room is undesirable. The device has an input for the speaker signal from the amplifier and an output for connecting a speaker cabinet.
The total impedance of the speakers must match the value specified on the PDI06. For example, a PDI06 rated for 8 ohms can connect to an 8-ohm cabinet or two 16-ohm cabinets at its outputs. The output of the tube amplifier should also be set to 8 ohms.
5. Palmer Audio Passive DI Box 2-channel Pro PAN
The PAN-04 is a 2-channel passive DI box. Its stereo design makes it ideal for capturing sounds from keyboards and devices with multiple outputs.
6. Palmer Audio Strain gauge switch
With the Palmer DMS (Dynamic Mic Switcher), you can switch a microphone between two inputs.
The Palmer DMS is a passive device and is exclusively suitable for dynamic microphones. The switching is done via a footswitch.
The application possibilities are versatile:
- Switch your vocal microphone between the FOH and monitor mixing console on stage to communicate something to the monitor mixer or the band.
- Two different sound settings: If you want to have a different effect or sound on your microphone at times, such as a telephone effect or more reverb, connect both outputs of the DMS to two channels of the mixing console that you can set differently. You can then switch back and forth between the two channels on stage as desired.
- You can use the DMS to address two different rooms or zones as needed.

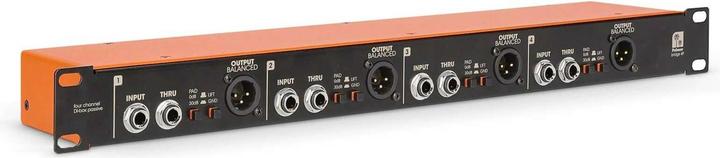

7. Palmer Audio BRIDGE 4P - 4-channel passive DI box in 19" rack format
The Palmer BRIDGE 4P is a 4-channel passive DI box for 19-inch rack mounting. It balances and matches the impedance of audio signals from guitars, basses, keyboards, and synthesizers. By providing galvanic isolation, it eliminates hum from ground loops. Four independent channels housed in a sturdy black 1U enclosure ensure absolutely reliable operation without the need for external power.
8. Palmer Audio PDI 06 L 08 Power Attenuator
Palmer Power Attenuator - Control the Volume of Your Guitar Amplifier
The PDI06 is a power attenuator designed for live use. The device is connected between the amplifier output and the speaker cabinet. It allows you to take advantage of the desirable power tube distortion from tube amplifiers while reducing the associated high volume. The volume can be practically reduced for stage and rehearsal room conditions in 6 steps from 100% to 18%. An additional setting completely mutes the speaker, allowing the PDI06 to function as a load box, absorbing the full power output from the amplifier.
This mode is useful when you want to play directly into the mixing console via an existing line output from the amplifier that features speaker emulation, and unwanted volume in the recording room is a concern. The device has an input for the speaker signal from the amplifier and two outputs for connecting speaker cabinets.
The total impedance of the speakers must match the value specified on the PDI06. For example, a PDI06 rated for 8 ohms can connect to either an 8-ohm cabinet or two 16-ohm cabinets (the 16-ohm version has only one output). The output of the tube amplifier should also be set to 8 ohms.
9. Palmer Audio trave - Passive Re-Ampflication Box
Re-amping allows you modern sound flexibility with the pressure and attitude that only a real amp can provide. With the Palmer Trave, you can send the previously recorded "bare" DI signal from your guitar or bass to the amplifier to capture its sound via a microphone. The Palmer Trave eliminates ground loops that almost inevitably occur when connecting an audio interface or mixer output to an instrument amplifier. At the same time, the Trave converts the line signal into an unbalanced signal with optimally matched impedance. Of course, the correct level is also important. The input can be switched between consumer level (-10 dBV) and professional level (+4 dBu); you can continuously adjust the output level so that your amplifier operates with just the right drive. This way, you can re-microphone your guitar tracks after the session at your leisure or run the same DI signal through multiple amps or different amplifier settings in succession to achieve a widescreen sound. With the Trave, your creativity knows no bounds!.
10. Palmer Audio GA 03 Splitter
When I connect the inputs of my two amplifiers, a strong hum occurs. This is a common inquiry in the technical sections of relevant specialist magazines. The solution to this problem is provided by the Palmer Y-Box. A FET input circuit converts the high-impedance guitar signal while simultaneously forming the driver circuit for a transformer that transmits the signal to the output without ground reference, thus eliminating a ground loop. Operation with a 9V battery is recommended.
The PGA03 Y-Box can also be used as a cable driver for long cable lengths. Additionally, the signal from output AMP2 can be switched with a phase inversion, which is often necessary when paralleling two out-of-phase preamps or power amplifiers.
