Phoenix Contact Installation floor terminal STI 2,5-1PE/3L/1N Gray
Best Phoenix Contact products in the Cables + Plugs category
On this page you'll find a ranking of the best Phoenix Contact products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

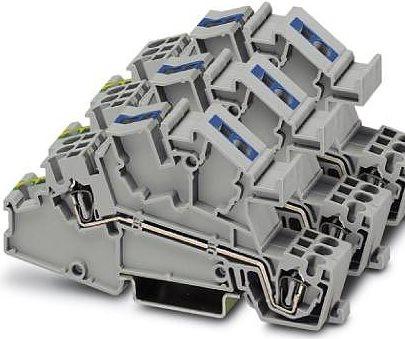

1. Phoenix Contact Installation floor terminal STI 2,5-1PE/3L/1N Gray
Description STI 2.5-1PE/3L/1N STI 2.5-1PE/3L/1N installation level terminal Technical data: AWG max.: 12 AWG min.: 28 Stripping length (max.): 10 mm Connection (components): Tension clamp Rated impulse voltage: 6 kV Colour: Grey Prod. part no.: 3038066 Industrial product: Yes Content: 1 pc. Rated voltage: 400 V Rated current: 24 A Product dimensions, width: 15.6 mm Product dimensions, length: 97 mm Type (manufacturer type): STI 2.5-1PE/3L/1N max. cross-section flexible: 4 mm² max. cross-section rigid: 4 mm² min. cross-section flexible: 0.08 mm² min. cross-section rigid: 0.08 mm².
2. Phoenix Contact LPS-5/E - Service connector LPS-5/E Content: 50 pcs.
Phoenix Contact LPS-5/E - Service connector LPS-5/E Content: 50pcs.

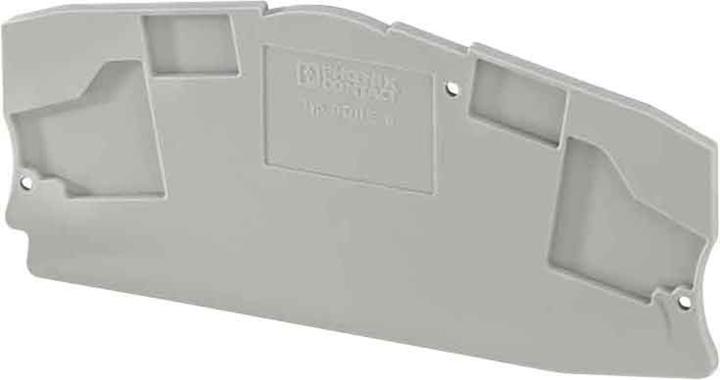

3. Phoenix Contact D-DTME 6
Description D-DTME 6 - Cover D-DTME 6 Industrial packaging with 1 cover, width: 2.2 mm, colour: grey Technical data: Prod. part no.: 3034426 Industrial product: Yes Content: 10 pcs Type (manufacturer type): D-DTME 6.
4. Phoenix Contact Sensor/actuator connectors
The sensor/actuator connector from Phoenix Contact is a reliable solution for connecting sensors and actuators in industrial applications. With a cable length of 5 meters and a 5-pin configuration, this connector provides a robust and flexible connection. The M12 connector is straight and A-coded, allowing for easy integration into existing systems. The cable is made from halogen-free PUR material, which is not only environmentally friendly but also offers high resistance to mechanical stress and chemical influences. The connector is suitable for use in a temperature range of -40 °C to 80 °C, making it ideal for various environments. The black-gray color of the cable complies with the RAL 7021 standard, ensuring discreet integration into industrial settings.
- Halogen-free PUR material for increased environmental friendliness
- Temperature resistant from -40 °C to 80 °C
- 5-pin configuration for versatile applications
- Easy integration with straight M12 connector and socket.
5. Phoenix Contact PT 1.5/S-TWIN/1P
Description PT 1.5/S-TWIN/1P - Feed-through modular terminal PT 1.5/S-TWIN/1P. Industrial packaging with 50 pieces. Feed-through modular terminal, type of connection: push-in/push-in, cross section: 0.14 mm² - 1.5 mm², AWG 26 - 16, width: 3.5 mm, colour: grey, mounting type: NS 35/7.5, NS 35/15.
Technical data: AWG max.: 16, AWG min.: 26, stripping length (max.): 8 mm, connection (components): quick connection, colour: grey, product part no.: 3212358, industrial grade: yes, content: 50 pcs., rated voltage: 500 V, rated current: 17.5 A, product dimension, width: 3.5 mm, type (manufacturer type): PT 1.5/S-TWIN/1P, max. cross section flexible: 1.5 mm², max. cross section rigid: 1.5 mm², min. cross section flexible: 0.14 mm², min. cross section rigid: 0.14 mm².

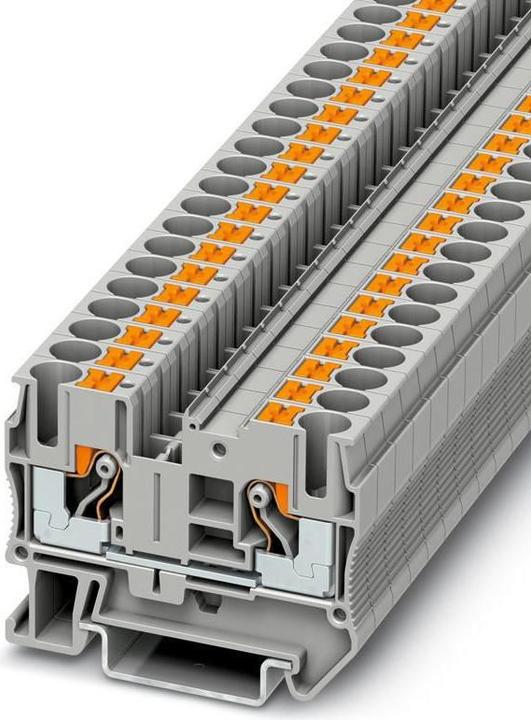

6. Phoenix Contact Push-in terminal block
The Push-in terminal block from Phoenix Contact, model PT 6, is a high-performance connection solution for electrical applications. It allows for easy and secure connection of conductors with a cross-section ranging from 0.5 mm² to 10 mm². This through terminal block is designed for use on DIN rails and offers a rated voltage of up to 1000 V, as well as a maximum rated current of 41 A. The terminal is made from high-quality polyamide, making it robust and durable. It is suitable for operating temperatures from -60 °C to 110 °C and meets RoHS certification requirements. With its compact design and push-in connection technology, it enables quick and easy installation, making it an ideal choice for various industrial applications.
- Push-in connection technology for easy installation
- Operating temperature range from -60 °C to 110 °C
- RoHS certified for environmentally friendly applications
- Suitable for fine-stranded and solid conductors
- Mounting on DIN rails for flexible applications.

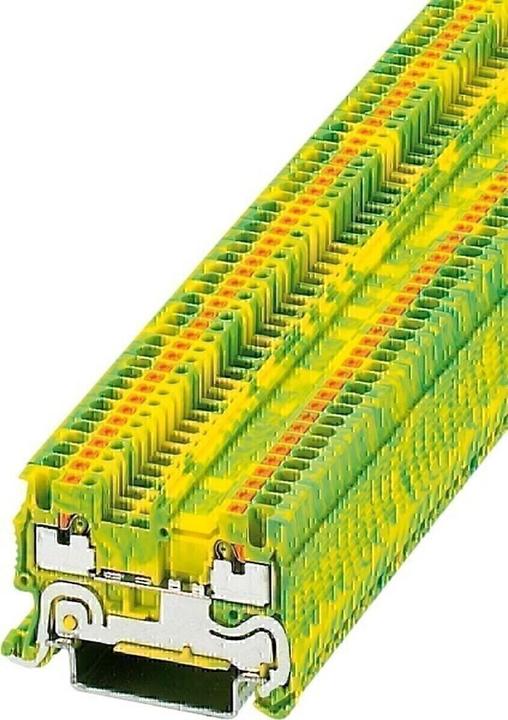

7. Phoenix Contact PT 1,5/S-PE
Series: PT Clipline
Wire size: 26 → 14 AWG
Cable cross-section: 0.14 → 1.5 mm²
Color: Green/Yellow
Number of levels: Single
Connection type: Plug-in
Through and multi-conductor connection terminals. 50% less insertion force. Direct connection from 0.34 mm. Actuation button for disconnecting conductors or wiring small cross-sections from 0.14 mm. The actuation button can be operated with any screwdriver. The compact design and front connection facilitate wiring even in tight spaces. Double bridge wave for individual current distribution and supply. Uniform and complete CLIPLINE standard accessories.

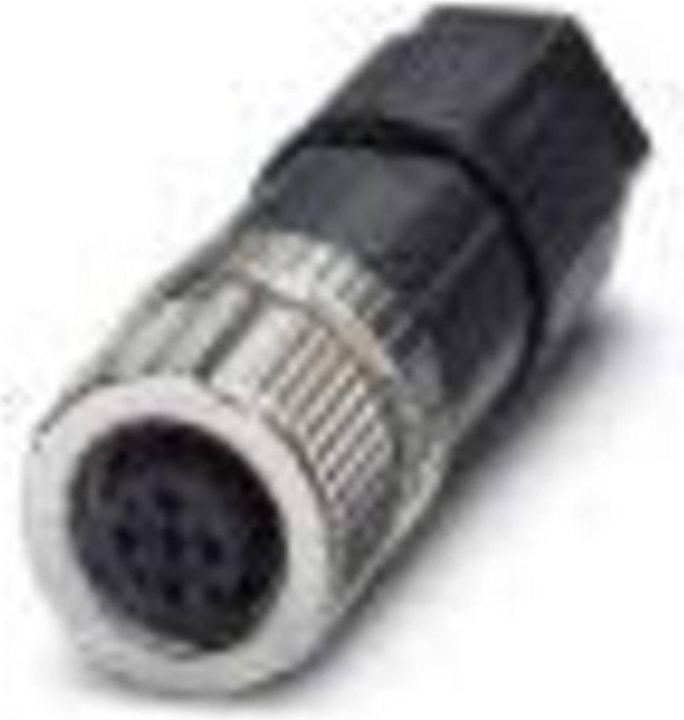

8. Phoenix Contact M12,5P,Socket,SPEEDCON,A-coded,Push-in
The M12.5P Socket SPEEDCON A-coded Push-in from Phoenix Contact is a highly advanced connector designed for a wide range of applications in automation technology. This unassembled connector provides a reliable connection for sensors and actuators and is ideal for use in harsh environments. With a protection rating of IP65 to IP67, it ensures high resistance to dust and water, making it particularly suitable for industrial applications. The connector is equipped with five contacts and supports a variety of cable cross-sections, allowing for flexible integration into existing systems. Its robust design and the use of high-quality materials ensure a long lifespan and high reliability, even under extreme conditions. The M12 connector is easy to assemble and provides a secure connection that meets the demands of modern automation solutions.
- Protection rating IP65 to IP67 for high resistance to environmental influences
- Suitable for cable outer diameters of 4 to 8 mm
- Operating temperature range of -40 °C to 85 °C
- Minimum number of mating cycles: 100 for long-term reliability
- 5-pole version for versatile applications in automation technology.
9. Phoenix Contact D-SUB CONNECTOR, 9-PIN, SOCKET
D-Sub connectors from Phoenix Contact SUBCON-PLUS RS-485. 9-pin fieldbus D-Sub connectors SUBCON-PLUS with two cable entries and a screw terminal block for each cable, enabling the implementation of fieldbus systems with RS-485 interfaces. The terminal blocks can be positioned at the top or bottom of the connector housing to allow cable entry from the left or right. The RS-485 D-Sub connectors SUBCON-PLUS for fieldbus systems feature high transmission speeds, good EMC with metallized ABS housings for shielding against electromagnetic interference, and accommodate cable cross-sections ranging from 6 to 10 mm². Order number 648-3489 is a 9-pin D-Sub socket with two cable entries angled at 35° for Modbus, Modbus-PLUS, BITBUS, ARCNET, MULT/MININET, SYSTEM 2003, P-NET. Order number 324-9371 is a 9-pin D-Sub socket with two cable entries angled at 35° for SUCONET-K1, K2, S-BUS, and J-BUS. Order number 324-9400 is a 9-pin D-Sub socket with two cable entries angled at 35° for Modbus and CEGELEC. Order numbers 801-8933 (plug) and 801-8964 (socket) are 9-pin D-Sub connectors with two cable entries angled at 35° for universal assignment. For a short fastening screw, see order number 801-8961. For a screwdriver, see order number 390-9663.

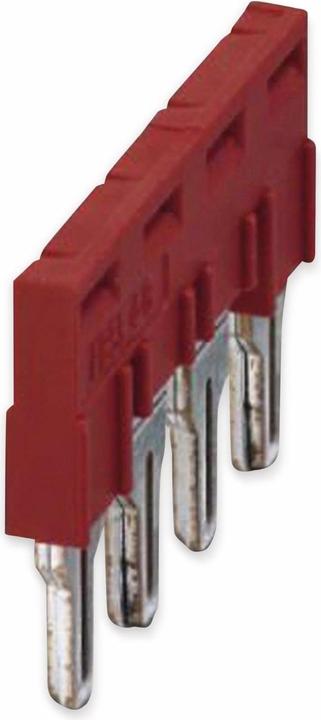

10. Phoenix Contact Jumper
Phoenix Contact jumper FBSL 4-8 Manufacturer :Phoenix Contact Designation :jumper Number of poles: 4 Type :FBSL 4-8 Version :other Number of bridged terminals :4 Explosion-proof version "Ex e" :no Rated current In :41 A Insulated :yes With contact hazard protection :no Mounting type :pluggable Grid dimension :8.2 mm Colour :red Phoenix Contact jumper FBSL 4-8: further details Jumper, grid dimension: 8.2 mm, colour: red , EAN: 4055626029160.
