Best selling Cables + Plugs from Siemens
Here you’ll find the best Cables + Plugs from Siemens. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Siemens options. This page always stays fresh and updates automatically.
1. Siemens IE TP Cord RJ45/RJ45 4x2
Industrial Ethernet TP cord RJ45/RJ45, CAT 6A, TP cable 4x2 (grey), assembled with 2 RJ45 plugs, length 4m. SIMATIC NET cables IE TP cord RJ45/RJ45, 4x2. Easy connection of end devices with RJ45 connection to the interference-resistant Industrial Ethernet FastConnect cabling system (10/100/1000 Mbit/s). Silicone-free, making it suitable for use in the automotive industry (e.g., painting lines). Fast and error-free commissioning thanks to pre-assembled, factory-tested patch cables. Simple installation due to small cable diameter.

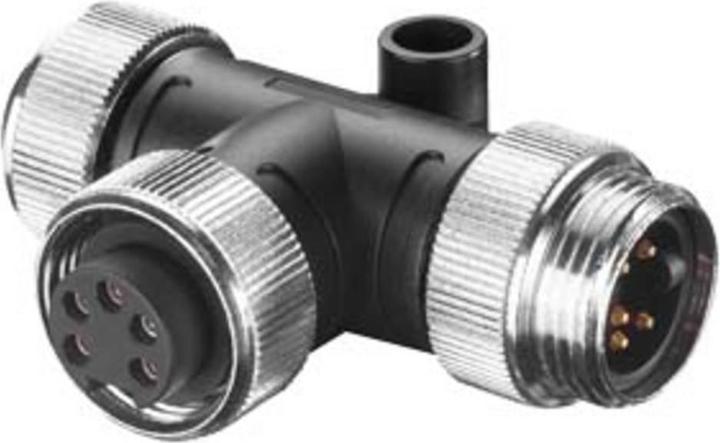

2. Siemens 6GK1905-0FC00
Siemens Dig.Industr. Power T-Tap 6GK1905-0FC00 VE5
Manufacturer: Siemens Dig.Industr.
Designation: Power T-Tap
Type: 6GK1905-0FC00 VE5
Ambient temperature: -40 to 80 °C
Housing material: other
Type of locking: screw connection
Protection class (IP), mounted: IP65/IP67
Additional details: 7/8 Power T-Tap PRO energy T-piece for ET 200 with two 7/8 socket inserts and one 7/8 pin insert, 1 package = 5 pieces. EAN: 4019169851510.
3. Siemens IE TPCordRJ45/RJ45
Siemens Digital Industries IE TP Cord RJ45/RJ45 4x2x2 6XV1870-4GH10
Manufacturer: Siemens Digital Industries
Designation: IE TP Cord RJ45/RJ45 4x2x2
Type: 6XV1870-4GH10
This industrial Ethernet TP cord features RJ45/RJ45 connectors, CAT 6A specification, and a 1-meter length. It is a TP cable with 4x2 configuration (yellow), assembled with 2 RJ45 plugs. The SIMATIC NET cables enable easy connection of end devices with RJ45 connections to the interference-resistant Industrial Ethernet FastConnect cabling system (10/100/1000 Mbit/s).
The cord is silicone-free, making it suitable for use in the automotive industry, such as painting lines. It allows for fast and error-free commissioning thanks to pre-assembled, factory-tested patch cables, and its small cable diameter facilitates simple installation.
EAN: 4047623800316.
4. Siemens MOTION-CONNECT 800Plus
The MOTION-CONNECT 800Plus from Siemens is an innovative single-cable connection solution specifically designed for connecting servo drives and servo motors. This technology significantly simplifies installation, as only a single cable is required to integrate power, encoder connection, and brake control. This not only reduces installation effort but also minimizes space requirements, which is particularly advantageous in confined environments. The cable is available in various lengths and offers easy assembly, even in challenging spatial conditions. Additionally, it features a compact, rotatable connector that facilitates handling. The protection classes IP20 and IP65 ensure high reliability in different applications, while the hygienic benefits are evident through the reduction of cables that need to be cleaned. These features make the MOTION-CONNECT 800Plus the ideal choice for industrial applications where efficiency and hygiene are of utmost importance.
- Single-cable technology for easy installation
- Reduced space requirements for cable management
- Hygienic benefits from fewer cables
- Compact, rotatable connector for tight spaces.
5. Siemens MOTION-CONNECT 500
Single cable extension 4G0.38+2x0.38+4x0.2 C socket and plug Speed-Connect M12 female / M12 male UL/CSA DESINA Motion-Connect 500 Dmax= 9.7 mm, Length (m)= One Cable Connection (OCC) MOTION-CONNECT is the simple, fast, and secure connection for the SINAMICS S210 servo drive and the SIMOTICS S-1FK2 servo motor. The servo motor and the servo drive are connected with just one cable instead of the usual two or three wires. This single-cable technology with SPEED-CONNECT quick release combines power, encoder connection, and brake control in one line. This offers several advantages, such as saving time by installing only one cable and reducing installation space or space requirements for cable routing. Additionally, it is beneficial that only one cable needs to be cleaned, especially in industries with high hygiene standards. The cable is also available in precise decimeter lengths and features a motor-side M17 or M12 connector (the smallest OCC connector in the world). Easy installation is possible even in tight spaces with the compact motor and small, rotatable connector. Extension cables have IP65 protection class on both sides. Optimized connection technology through OCC (One Cable Connection).

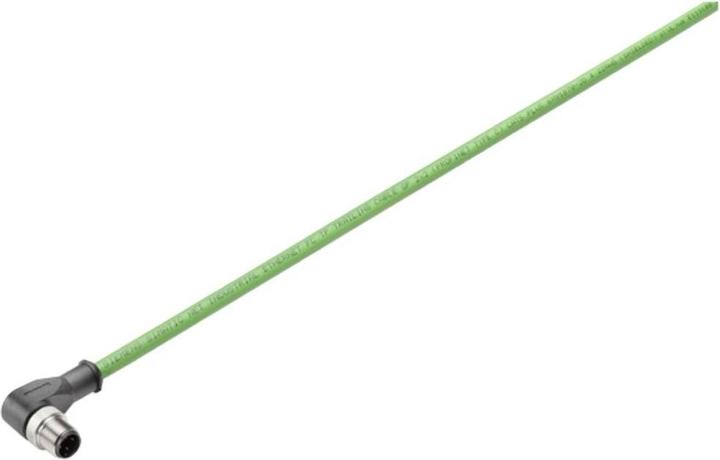

6. Siemens IE Connecting
Siemens Dig.Industr. IE Connecting Cable 6XV1870-8GH10
Manufacturer: Siemens Dig.Industr.
Description: IE Connecting Cable M12-90/M12-90 1m
Type: 6XV1870-8GH10
Conductor Surface: bare
Conductor Diameter: 0.75 mm
Number of Conductors: 4
Number of Twisted Elements: 2
Twisted Element: Four
Material of Conductor Insulation: other
Conductor Marking: color
Shield over Twisted Element: none
Twisting: bundle
Shield over Twisting: foil + braid
Suitable for underground installation: no
Sheath Material: Polyvinyl Chloride (PVC)
Specification of Sheath Material: other
Sheath Color: green
Fire Behavior Class according to EN 13501-6: none
Flame Retardant: no
Low Smoke according to EN 61034-2: no
Outer Diameter approx.: 6.5 mm
Min. allowable bending radius, flexible use with forced guidance: 49 mm
Min. allowable bending radius, flexible use/free movement: 49 mm
Min. allowable bending radius, stationary use/fixed installation: 49 mm
Permissible cable outer temperature during installation/handling: -10..60 °C
Permissible cable outer temperature after installation without shock: -25..75 °C
Category: 5E
NVP Value: 66 %
Siemens Dig.Industr. IE Connecting Cable 6XV1870-8GH10: additional details
IE Connecting Cable M12-90/M12-90, pre-assembled, IE FC Trailing Cable GP, with 2 M12 connectors (D-coded), length 1m.
SIMATIC NET cables IE Connecting Cable M12-90/M12-90 for connecting Industrial Ethernet participants in protection classes IP 65/67, with transmission rates of 10/100 Mbit/s. Suitable for use in drag chains, e.g., in continuously moving machine parts. Silicone-free, making it suitable for use in the automotive industry (e.g., painting systems). Time-saving and error-free connection of end devices through pre-assembled AWG22 connection cables. Interference-resistant network due to double-shielded cables and a continuous grounding concept. Reliable shield contact and strain relief integrated. Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173.
7. Siemens Power
The Power Connecting Cable from Siemens is a high-quality solution for powering ET200 systems. With a length of 2 meters and featuring an M12 connector and an M12 socket, this pre-assembled cable provides a reliable connection for various industrial applications. The A-coded, 4-pole configuration ensures safe and efficient power transmission. The cable is insulated with robust polyvinyl chloride, making it durable and resistant to environmental influences. The gray cable color and compact diameter of 5.7 mm facilitate easy integration into existing systems. This product is ideal for professionals who require a reliable and powerful connection in their automation projects.
- Pre-assembled cable for easy installation
- A-coded M12 connector and socket for secure connection
- Robust PVC insulation for durability
- Suitable for industrial applications with ET200 systems.
8. Siemens Power Connecting CableM12St-180/M12Bu-180 for power supply
The Power Connecting Cable M12St-180/M12Bu-180 from Siemens is a high-quality pre-assembled cable specifically designed for powering end devices and network components. With a length of 1 meter, this cable provides a reliable connection and is equipped with an M12 plug and an M12 socket. The L-coding ensures a secure and error-free connection, while the 4-pole configuration guarantees efficient power transmission. The cable is insulated with robust polyvinyl chloride, making it durable and resistant to environmental influences. This product is ideal for industrial applications where a stable and secure power supply is required.
- Pre-assembled cable with M12 plug and socket
- L-coded for secure connections
- 4-pole configuration for efficient power transmission
- Robust PVC insulation for durability and resistance.
9. Siemens 6XV1830-3DN10
The 6XV1830-3DN10 from Siemens is a pre-assembled PROFIBUS M12 connector cable specifically designed for connecting PROFIBUS devices, such as the SIMATIC ET 200. With a length of 10 meters and an IP65 protection rating, this flexible connector cable provides a reliable and robust solution for industrial applications. The cable is equipped with two M12 connectors that are B-coded and 5-pole, allowing for easy and error-free installation on-site. The use of high-quality materials, such as polyurethane (PUR) for insulation, ensures high resistance and durability. This data cable supports transmission rates of up to 12 Mbit/s and is ideal for time-saving installations in demanding environments.
- Pre-assembled connector cable for easy installation
- IP65 protection rating for use in harsh environments
- Supports transmission rates of up to 12 Mbit/s
- High-quality materials for durability and resistance.
10. Siemens SIEM connector
