Best selling Capacitors from Schneider
Here you’ll find the best Capacitors from Schneider. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Schneider options. This page always stays fresh and updates automatically.
1. Schneider BLRCH100A120B44
PowerLogic PFC capacitors are a reliable and flexible solution for reactive power compensation under demanding operating conditions. These capacitors are primarily used in situations with higher voltage disturbances or when there are low nonlinear loads present. The rated current of the capacitors must be increased to handle the stress from harmonic currents. This capacitor provides a rated output power of 10 kVar at 440V AC, 50 Hz. Mounting is ensured by a ClampTite clamp. This component complies with the standards IEC 60831-1 and IEC 60831-2. The weight of the product in its housing is 1.2 kg.
2. Schneider LC1DMKM7
TeSys D contactor, 3-pole (3NO), for switching 3-phase capacitor banks up to 25 kVAR at 400 V 50 Hz (42 kVAR at 690 V). It features a 220 V 50/60 Hz AC coil, 1NO + 2NC instantaneous auxiliary contacts, with front-mounted early closers and pre-wired damping resistors for current limitation. Designed for operating rates up to 240 cycles per hour and environments up to 60 °C, it offers high reliability and longevity. Compact (45 mm wide), suitable for DIN rail or screw mounting. Certified according to IEC 60947 and compliant with the shunt capacitor standard IEC 60831, Green Premium product (RoHS/REACh).

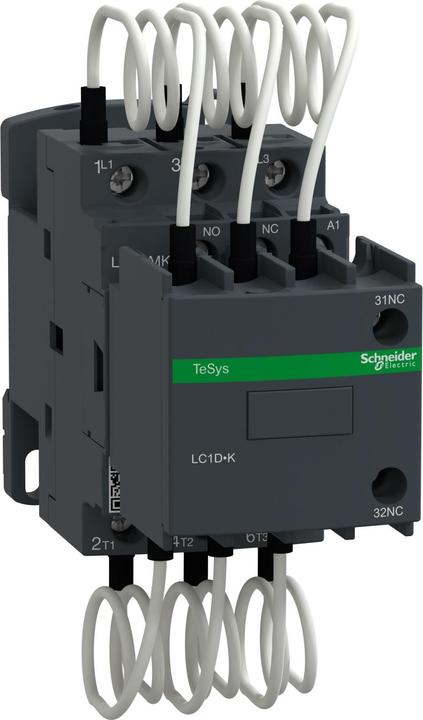

3. Schneider LC1DMKP7
Schneider Electric TeSys LC1D.K Contactor LC1DMKP7 Manufacturer: Schneider Electric Designation: TeSys LC1D.K Contactor Type: LC1DMKP7 Rated control supply voltage Us at AC 50 Hz: 230 V Rated control supply voltage Us at AC 60 Hz: 230 V Voltage type for actuation: AC Number of auxiliary contacts as normally open: 1 Number of auxiliary contacts as normally closed: 2 Connection type for main circuit: Screw connection Number of normally open main contacts: 3 Rated reactive power at 400 V, 50 Hz: 25 kvar TeSys D Contactor, 3-pole (3NO), for switching 3-phase capacitor banks up to 25 kVAR@400V 50Hz (42 kVAR@690V). It features a 230V 50/60Hz AC coil, 1NO+2NC unlatched auxiliary contacts, with front-mounted early closers and pre-wired damping resistors for current limitation. Designed for operation rates up to 240 cycles/hour and environments up to 60°C, it offers high reliability and longevity. Compact (45mm width), mountable on DIN rail or screw fastening. Certified according to IEC 60947 and compliant with the shunt capacitor standard IEC 60831, Green Premium product (RoHS/REACh).
4. Schneider BLRCS150A180B40
EasyLogic PFC capacitors are designed for operation in lightly polluted networks with filter circuit inductors. These capacitors are used under standard operating conditions when there are no significant nonlinear loads present. They are the right choice to maximize savings in a stable electrical system. This capacitor delivers a rated output power of 13.5 kVar at 380V AC, 50 Hz. Mounting is secured by a ClampTite clamp. This component complies with the standards IEC 60831-1 and IEC 60831-2. The weight of the product in its housing is 1.3 kg.
5. Schneider LC1DFKV7
The LC1DFKV7 control relay from Schneider is a highly advanced capacitor contactor designed for use in various electrical applications. With an input voltage of 400 volts AC and a maximum switching power of 12.5 kilowatts, this product offers a reliable solution for controlling electrical loads. The relay is equipped with three normally closed contacts and two normally open contacts, allowing for flexible handling and adaptation to different requirements. Manufactured in France, the LC1DFKV7 is distinguished by its high quality and durability, making it a preferred choice for professionals in the field of electrical engineering. It is important to note that this product is not compatible with smart home systems, making it ideal for traditional applications where robust and proven technology is required.
- Input voltage of 400 volts AC
- Maximum switching power of 12.5 kW
- Equipped with 3 normally closed contacts and 2 normally open contacts
- Manufactured in France.
6. Schneider BLRCH200A240B44
PowerLogic PFC capacitors are a reliable and flexible solution for reactive power compensation under demanding operating conditions. These capacitors are primarily used in situations with higher voltage disturbances or in the presence of low nonlinear loads. The rated current of the capacitors must be increased to handle the load from the harmonic current. This capacitor provides a rated output power of 20 kVar at 440V AC, 50 Hz. The mounting is secured by a ClampTite clamp. This component complies with the standards IEC 60831-1 and IEC 60831-2. The weight of the product in its housing is 2.5 kg.
7. Schneider LC1DLKM7
TeSys D contactor, 3-pole (3NO), for switching 3-phase capacitor banks up to 20 kVAR at 400 V 50 Hz (33 kVAR at 690 V). It features a 220 V 50/60 Hz AC coil, 1NO + 2NC non-delayed auxiliary contacts, with front-mounted early closers and pre-wired damping resistors for current limitation. Designed for operating rates up to 240 cycles per hour and environments up to 60 °C, it offers high reliability and longevity. Compact (45 mm wide), suitable for DIN rail or screw mounting. Certified according to IEC 60947 and compliant with the shunt capacitor standard IEC 60831, Green Premium product (RoHS/REACh).
8. Schneider LC1DPKP7
TeSys D contactor, 3 Pole (3NO), for switching 3-phase capacitor banks up to 30 kVAR at 400 V 50 Hz (50 kVAR at 690 V). It features a 230 V 50/60 Hz AC coil, 1NO+2NC non-delayed auxiliary contacts, with front-mounted early closers and pre-wired damping resistors for current limitation. Designed for operating rates of up to 240 cycles per hour and environments up to 60 °C, it offers high reliability and longevity. Compact (55 mm width), suitable for DIN rail or screw mounting. Multi-standard certified (IEC, UL, CSA) and compliant with the standard for shunt capacitors IEC 60831, Green Premium product (RoHS/REACh).
9. Schneider LC1DFKM7
The LC1DFKM7 from Schneider is a highly advanced relay specifically designed for use in electrical circuits. It is a capacitor contactor that provides an output voltage of 12.5 kVAr at an input voltage of 220 V AC. This product is ideal for applications that require reliable control and switching of capacitors. With its robust construction and the high quality that Schneider products are known for, the LC1DFKM7 ensures a long lifespan and high operational safety. It is not suitable for smart home applications, making it a specialized solution for industrial and commercial uses. The relay is manufactured in France and is a proven product in electrical engineering.
- Output voltage of 12.5 kVAr
- Input voltage of 220 V AC
- Robust construction for industrial applications.
10. Schneider LC1DTKP7
TeSys D contactor, 3 Pole (3NO), for switching 3-phase capacitor banks up to 40 kVAR at 400 V 50 Hz (67 kVAR at 690 V). It features a 230 V 50/60 Hz AC coil, 1NO + 2NC instantaneous auxiliary contacts, with front-mounted early closers and pre-wired damping resistors for current limitation. Designed for operating rates of up to 240 cycles per hour and environments up to 60 °C, it offers high reliability and longevity. Compact (55 mm width), suitable for DIN rail or screw mounting. Multi-standard certified (IEC, UL, CSA) and compliant with the shunt capacitor standard IEC 60831, Green Premium product (RoHS/REACh).
