Card readers
EUR83,90
Promag PCR-330A, USB RFID Reader, 125 kHz, Slot, USB (Keyboard-Mode), Dimensions (WxHxD): 65x23x100mm
USB
Best selling Card readers from Promag
On this page you'll find a ranking of the best Promag products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

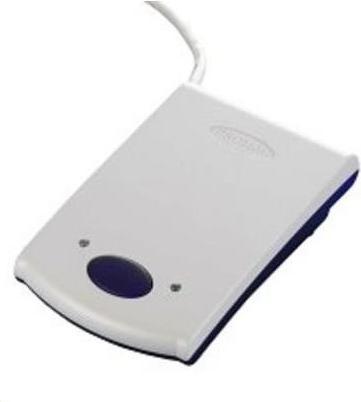

1. Promag PCR-330A, USB RFID Reader, 125 kHz, Slot, USB (Keyboard-Mode), Dimensions (WxHxD): 65x23x100mm
Short info: Promag PCR330A - RFID reader - USB - 125 KHz
Group Input Adapter Manufacturers GIGA-TMS
Manufacturer Art. No. PCR330A-00
EAN/UPC
Product description:
Promag PCR330A - RFID reader - USB
Device type: RFID reader - contactless
Interface type: USB
Frequency: 125 KHz
Dimensions (width x depth x height): 6.5 cm x 10 cm x 2.3 cm
Weight: 115 g
General Information:
Device type: RFID reader - contactless
Interfaces:
Type: USB
Frequency: 125 KHz
Width: 6.5 cm
Depth: 10 cm
Height: 2.3 cm
Weight: 115 g
Expansion / Connectivity:
Connections: 1 x USB - USB Type A, 4-pin
Environmental conditions:
Min. operating temperature: -10 °C
Max. operating temperature: 55 °C
Permissible humidity: 10 - 90%.

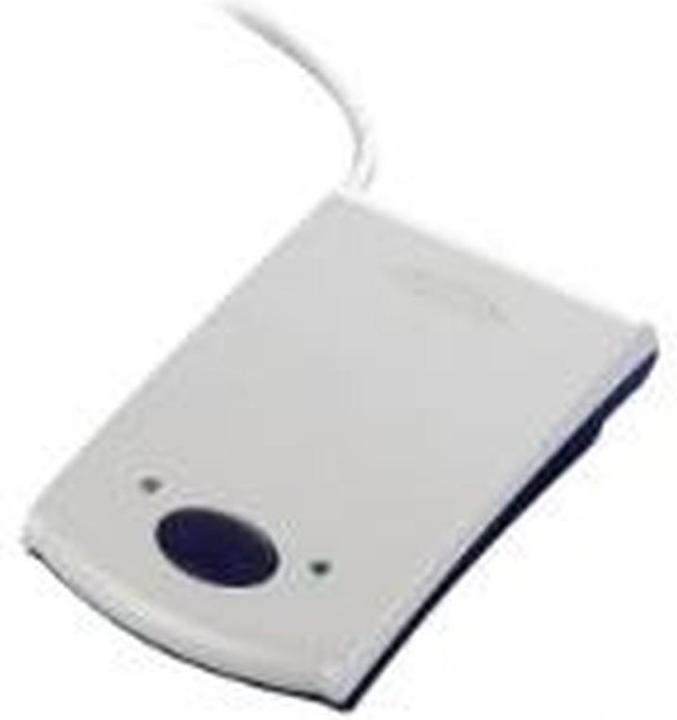

2. Promag PCR-300, USB RFID Reader, 13.56 MHz (ISO14443, MIFARE), Slot, USB (RS232 Emulation), Dimensions
Description Promag PCR-300, USB - RFID Reader, 13.56 MHz (ISO14443, Mifare), USB, Slot, Dimensions (WxHxD): 65x23x10 mm (PCR300MU-01). The Promag PCR-300 is a stationary reader for RFID tags and cards. Its easy integration into your applications makes it suitable for cash register, customer loyalty, bonus, and debit card systems, among others. It can even be used as a waiter lock. Depending on the model, you can connect the device to the RS232 or USB port of any PC. The reader captures the placed transponders either automatically or at the push of a button and sends them to the interface. For your software to further process the user information from the read transponders, it must actively query the interface. When the card is removed from the reading area, the PCR-300 returns a value to the interface. This way, you can easily determine whether the operator is still at the device (waiter lock function).
Card readers
EUR109,–
Promag PCR-300, USB RFID Reader, 13.56 MHz (ISO14443, MIFARE), Slot, USB (RS232 Emulation), Dimensions
USB

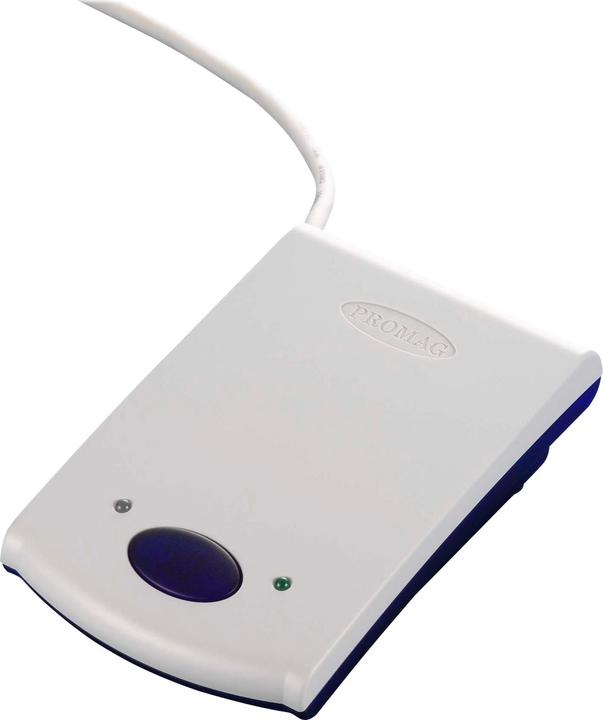

3. Promag PCR-330M, USB RFID Reader, 13.56 MHz, Slot, USB (Keyboard-Mode), Dimensions (WxHxD): 65x23x100mm
Promag PCR330M - RF distance reader - USB
Product Description:
The Promag PCR330M is an RF distance reader that operates at a frequency of 13.56 MHz. It features a USB interface and is designed for efficient data reading.
Specifications:
- Device Type: RF distance reader
- Interfaces Type: USB
- Frequency: 13.56 MHz
- Dimensions: 6.5 cm (width) x 10 cm (depth) x 2.3 cm (height)
- Weight: 115 g
- Magnetic Card Reader: ISO14443A standard
Expansion/Connectivity:
- Connections: 1 x USB
Miscellaneous:
- Notification on success: LED display
- Marking: ISO 14443 type A, ISO/IEC 18092
Environmental Conditions:
- Minimum Operating Temperature: -10 °C
- Maximum Operating Temperature: 55 °C
- Permissible Humidity in Operation: 10% - 90%.
Card readers
EUR119,–
Promag PCR-330M, USB RFID Reader, 13.56 MHz, Slot, USB (Keyboard-Mode), Dimensions (WxHxD): 65x23x100mm
USB

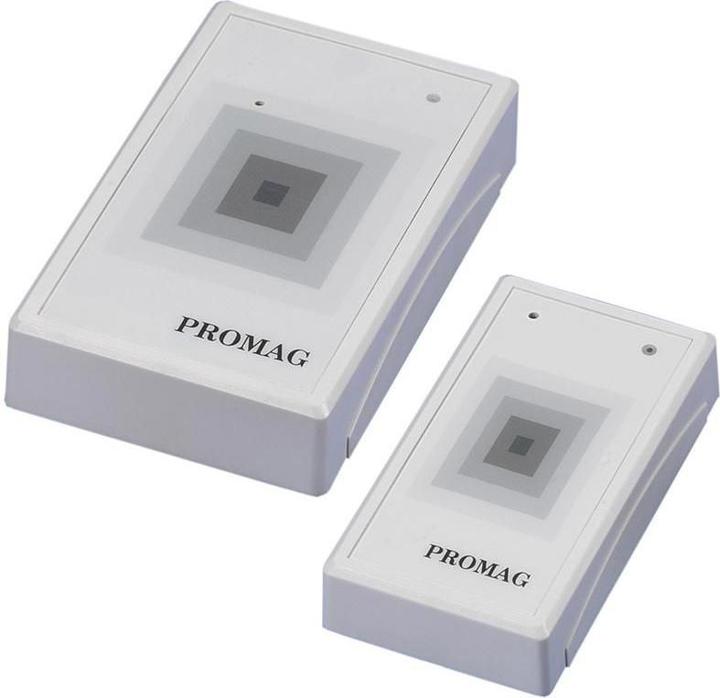

4. Promag GP20, RS232 RFID reader, 125 kHz (EM4102), open cable end, contactless (up to 20cm), RS232, Wi
Short info: Promag GP20 - RF distance reader Group Input Adapter Manufacturers GIGA-TMS Manufacturer Art. No. GP20-10 EAN/UPC Product description: Promag GP20 - RF distance reader Device type RF distance reader Dimensions (width x depth x height) 7.8 cm x 4.3 cm x 1.5 cm Detailed specifications General Device type RF distance reader Width 7.8 cm Depth 4.3 cm Height 1.5 cm Environmental conditions Min. operating temperature -25 °C Max. operating temperature 65 °C Operating temperature 65 °C.
Card readers
EUR63,90
Promag GP20, RS232 RFID reader, 125 kHz (EM4102), open cable end, contactless (up to 20cm), RS232, Wi
RS-232
5. Promag Mifare MF700 - SmartCard reader - RS-232, SIA 26-bit Wiegand
Promag Mifare MF700 - Smart card reader - RS-232, SIA 26-bit Wiegand
Product Description:
The Promag Mifare MF700 is a smart card reader that operates without contact. It features RS-232 and SIA 26-bit Wiegand interfaces and operates at a frequency of 13.56 MHz.
Dimensions:
- Width: 4.3 cm
- Depth: 1.5 cm
- Height: 7.8 cm
Power Supply:
- Required mains voltage: DC 5.5 - 12 V
Device Functions:
- Weatherproof
- Notification on success with signal tone and LED display
Ambient Conditions:
- Minimum operating temperature: -10 °C
- Maximum operating temperature: 60 °C
- Permissible humidity during operation: 10 - 90%.
6. Promag PCR-300, USB, RFID Reader
The Promag PCR-300 is an external RFID reader specifically designed for use with 125 kHz EM4102 RFID tags. With its compact dimensions of 65 mm in width, 23 mm in height, and 100 mm in length, it offers a space-saving solution for various applications. The device features a USB interface that allows for easy connection to computers and other devices, and it supports RS232 emulation, facilitating integration into existing systems. The PCR-300 is ideal for use in areas such as access control, identification, and data collection. Its robust construction and user-friendly operation make this reader a reliable choice for companies needing an efficient RFID solution. With its high compatibility and versatile applications, the Promag PCR-300 is a valuable addition to any technical setup.
