Best selling Converters from Moxa
On this page you’ll find a ranking of the best Converters from Moxa. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Moxa UPORT 1250 - USB to 2-port RS-232422485 serial hub
The UPORT 1250 from Moxa is a powerful USB-to-serial converter that enables a reliable connection for up to two serial devices through a single USB port. This industrial hub supports RS-232, RS-422, and RS-485 standards and offers a high baud rate of up to 921.6 kbps. With a USB interface that supports both SuperSpeed USB 3.2 and Hi-Speed USB 2.0, the UPORT 1250 ensures fast and stable data transmission. Advanced UARTs provide high serial performance, while the COM port mapping functionality allows for easy integration into existing systems. The hub is compatible with a variety of operating systems, including Windows, Linux, and macOS, making it a flexible solution for various applications.
- Supports up to 2 serial devices via USB
- High baud rate of up to 921.6 kbps
- Compatible with Windows, Linux, and macOS
- Easy integration through COM port mapping.
2. Moxa TCC-100I - RS-232 to RS-422485 converter with optical isolation
The TCC-100I from Moxa is a versatile RS-232 to RS-422/485 converter that provides a reliable solution for communication between different serial interfaces. With its optical isolation, it protects connected devices from electrical disturbances and ensures stable data transmission. The converter supports a wide baud rate range from 50 bps to 921.6 kbps, including non-standard baud rates, making it ideal for various applications. Its robust design and the option for DIN rail or wall mounting allow for flexible installation in different environments. The TCC-100I is designed for use in demanding industrial applications and offers high operational reliability at temperatures ranging from -20 to 60 °C. Its compact form factor and metal housing ensure durability and reliability.
- Optical isolation to prevent electrical disturbances
- Supports automatic data direction control (ADDC) for RS-485
- Operating temperature range from -20 to 60 °C
- Robust metal housing with IP30 protection class
- Input voltage of 12 to 48 VDC with overcurrent protection.
Converters
−6%
EUR159,– was EUR169,–
Moxa TCC-100I - RS-232 to RS-422485 converter with optical isolation
3. Moxa TCF-90-S-ST - RS-232 to single-mode ST fiber optic converter, port powered
Moxa's industrial-grade serial-to-fiber optic converters can convert RS-232/422/485 to optical fiber, providing users with an easy and reliable way to communicate with their serial devices.
RS-232 to single-mode ST fiber optic converter, port powered.
Serial Interface
- Number of Ports: 2
- Serial Standards: RS-232
- Flow Control: ADDC (automatic data direction control) for RS-485
- Connector: Single-mode ST connector
- Baudrate: 300 bps to 115.2 kbps
Serial Signals
- RS-232: TxD, RxD, GND
Power Parameters
- Input Current: 5 to 12 VDC, 20 mA (max.)
- Input Voltage: 5 to 12 VDC
- Number of Power Inputs: 1
- Overload Current Protection: Supported
- Source of Input Power: Power input jack
Physical Characteristics
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
- Weight: 150 g (0.33 lb)
- Installation: Desktop
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -20 to 75°C (-4 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
- Environmental Testing:
IEC 60068-2-1
IEC 60068-2-14
IEC 60068-2-2
IEC 60068-2-3
- Safety: UL 60950-1
- Vibration: IEC 60068-2-6
MTBF
- Time: 2,272,562 hrs
- Standards: Telcordia (Bellcore), GB.
4. Moxa UPORT 1450I-G2-T - USB to 4-port RS-232/422/485 converter with 2 kV insulation protection
The UPORT 1450I-G2-T from Moxa is a powerful USB-to-serial converter specifically designed for industrial applications. With the capability to connect up to four serial RS-232/422/485 devices through a single USB port, this device offers a flexible solution for data communication. The converter supports a wide range of baud rates from 50 bps to 921.6 kbps and is equipped with advanced UARTs that ensure high serial performance. The UPORT 1450I-G2-T is designed for use in demanding environments and features 2 kV isolation protection to safeguard connected devices from voltage surges. With an operating temperature range of -40 to 75 °C, this converter is ideal for use in harsh industrial settings. The USB interface complies with USB 3.2 Gen 1 as well as USB 1.1/2.0 standards, allowing for a high data transfer rate of up to 5 Gbps.
- Supports up to 16 serial devices via one USB port
- Operating temperature range of -40 to 75 °C
- 2 kV isolation protection for enhanced safety
- Compatible with Windows operating systems including Windows 11
- Automatic Data Direction Control (ADDC) for RS-485.
Converters
EUR739,–
Moxa UPORT 1450I-G2-T - USB to 4-port RS-232/422/485 converter with 2 kV insulation protection
5. Moxa IMC-21GA-LX-SC - Industrial 101001000BaseT(X) to 1001000Base SC media converter, 10 km, -10 to 60
The IMC-21GA-LX-SC from Moxa is an industrial media converter that provides a reliable connection between Ethernet and fiber optic networks. With a range of up to 10 km and an operating temperature of -10 to 60 °C, this device is designed for use in demanding industrial environments. The converter supports 10/100/1000BaseT(X) via an RJ45 port and 100/1000Base SC through a single-mode connection. Thanks to its innovative remote management and robust design, the IMC-21GA-LX-SC offers high reliability and flexibility to meet the requirements of various applications. DIN rail mounting allows for easy installation, while the built-in magnetic isolation protection ensures additional safety. This media converter is an ideal solution for companies that need a stable and high-performance network connection.
- Innovative remote management for easy monitoring and control
- Robust design for industrial applications
- Built-in magnetic isolation protection with 1.5 kV
- DIN rail mounting for flexible installation
- Wide operating temperature range of -10 to 60 °C.
Converters
EUR479,–
Moxa IMC-21GA-LX-SC - Industrial 101001000BaseT(X) to 1001000Base SC media converter, 10 km, -10 to 60
6. Moxa PTC-101-S-ST-HV - Industrial 10100BaseT(X) to 100BaseFX media converter
The PTC-101-S-ST-HV from Moxa is an industrial media converter that enables a reliable connection between Ethernet and fiber optic networks. This converter supports the conversion from 10/100BaseT(X) to 100BaseFX and is specifically designed for use in demanding industrial environments. With a robust metal housing and a flexible, modular design, it offers high reliability and adaptability. The media converter is suitable for operating temperatures ranging from -40 to 85 °C, ensuring stable performance under extreme conditions. Additionally, the innovative remote management feature allows for easy monitoring and management of the device, enhancing efficiency in industrial applications.
- Innovative remote management for easy monitoring and management
- Robust design for use in extreme temperatures from -40 to 85 °C
- Magnetic isolation protection up to 1.5 kV
- DIN rail mounting for easy installation
- Supports a wide range of input voltages (100 to 240 VAC/VDC).
7. Moxa MGATE 5135 - 1-port Modbus RTUASCIITCP-to-EtherNetIP gateways, -10 to 60C operating temperatu
The Moxa MGATE 5135 is a powerful 1-port Modbus RTU/ASCII/TCP to EtherNet/IP gateway that enables seamless data conversion between various industrial protocols. This device is ideal for applications requiring reliable communication between serial and Ethernet networks. With an operating temperature range of -10 to 60 °C, the MGATE 5135 is suitable for use in demanding environments. Configuration and troubleshooting are made easy with a user-friendly web console and various management options. Additionally, the device offers comprehensive security features to ensure the integrity of data transmission.
- Supports a variety of industrial protocols such as Modbus RTU/ASCII, Modbus TCP, DNP3, and more
- Provides comprehensive security features, including HTTPS encryption and SNMPv3
- Easy configuration via a web console with support for DHCP and DNS
- Integrated magnetic isolation with 1.5 kV for added protection
- Automatic data direction control for RS-485 to optimize communication.
Converters
EUR669,–
Moxa MGATE 5135 - 1-port Modbus RTUASCIITCP-to-EtherNetIP gateways, -10 to 60C operating temperatu

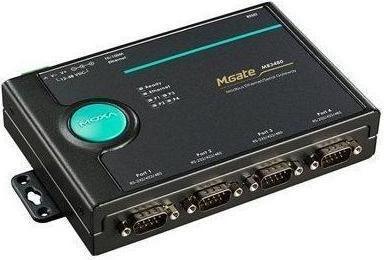

8. Moxa MGATE MB3480 - 4-port standard Modbus gateway
The Moxa MGATE MB3480 is a powerful 4-port standard Modbus gateway that enables seamless data conversion between various protocols. It supports Modbus RTU/ASCII, Modbus TCP, DNP3, CANopen, J1939, PROFIBUS, BACnet/IP, IEC 101/104, and IEC 61850. This gateway is ideal for industrial applications where reliable communication between devices is required. With an Ethernet interface that includes 10/100BaseT(X) ports, the device offers an auto-MDI/MDI-X connection for easy integration into existing networks. The built-in magnetic isolation protection of 1.5 kV ensures additional safety and stability during operation. Configuration and management of the device are carried out via a user-friendly web console or various software tools that allow for efficient troubleshooting and customization.
- Supports a variety of industrial protocols for flexible integration
- Built-in magnetic isolation protection of 1.5 kV for enhanced safety
- Encryption options such as AES-128 and AES-256 for data security
- Diverse configuration options via web console and software tools
- Serial standards RS-232/422/485, selectable via software.
9. Moxa ICF-1180I-M-ST - PROFIBUS to fiber converter, multi-mode, ST connector, 0 to 60C operating temper
The ICF-1180I-M-ST is a professional PROFIBUS to fiber optic converter, specifically designed for industrial applications. With a multimode ST connector, this device enables reliable and efficient data transmission over fiber optics, which is particularly advantageous in environments with electromagnetic interference. The converter supports an operating temperature range of 0 to 60 °C, making it suitable for use in various industrial settings. The serial interface and support for PROFIBUS DP protocols ensure seamless integration into existing systems. With a baud rate of up to 12 Mbps, the converter offers a high data transfer rate, while the built-in isolation of 2 kV provides additional protection. The robust metal housing and IP30 protection rating ensure durability and reliability in demanding environments.
- Supports baud rates from 9600 bps to 12 Mbps
- Built-in isolation of 2 kV for additional protection
- Robust metal housing with IP30 protection rating
- DIN rail and wall mounting options available
- High reliability with an MTBF of over 1.7 million hours.
Converters
EUR579,–
Moxa ICF-1180I-M-ST - PROFIBUS to fiber converter, multi-mode, ST connector, 0 to 60C operating temper

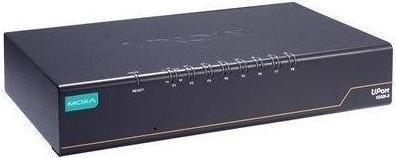

10. Moxa UPORT 1650I-8-G2-T - USB to 8-port RS-232422485 converter with 2 kV insulation protection
The UPORT 1650I-8-G2-T from Moxa is a powerful USB-to-8-Port RS-232/422/485 converter specifically designed for industrial applications. With the ability to connect up to eight serial devices via a single USB port, this device offers a reliable and efficient solution for data communication. The converter supports a wide range of baud rates from 50 bps to 921.6 kbps and is equipped with advanced UARTs that ensure high serial performance. The UPORT 1650I-8-G2-T is designed for use in demanding environments and provides 2 kV isolation protection to safeguard connected devices from electrical disturbances. With an operating temperature range of -40 to 75°C, this converter is ideal for use in harsh industrial settings. The USB interface complies with USB 3.2 Gen 1 as well as USB 1.1/2.0 standards, enabling high data transfer speeds of up to 5 Gbps.
- Supports up to 8 serial RS-232/422/485 connections via a USB port
- Operating temperature range of -40 to 75°C for industrial applications
- 2 kV isolation protection against electrical disturbances
- High baud rate of up to 921.6 kbps for fast data transmission
- Compatible with USB 3.2 Gen 1 and USB 1.1/2.0 standards.
Converters
EUR1249,–
Moxa UPORT 1650I-8-G2-T - USB to 8-port RS-232422485 converter with 2 kV insulation protection
