Best selling Electronics modules from APC
On this page you’ll find a ranking of the best Electronics modules from APC. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. APC 1 piece
The Yageo XS7 industrial proximity sensor is a universal flat inductive proximity sensor with a PBT housing and a switching distance of 10 mm. The sensor has a width of 26 mm, a height of 26 mm, and a length of 13 mm. It features a flush mechanical installation condition and a normally open switching function. It is equipped with a PNP/PNP switching output and an M8 connector. The sensor has a rated supply voltage of 12-24 V DC and a rated current of 50 mA. It is mounted directly on a surface with 4 screw mounting points and is certified by C-Tick, ECOLAB, CSA, and UL.
Features:
- Sensor width: 26 mm
- Sensor height: 26 mm
- Sensor length: 13 mm
- Mechanical installation condition for sensor: flush
- Switching distance: 10 mm
- Suitable for safety functions: no
- Type of switching function: normally open
- Type of switching output: PNP/PNP
- Type of electrical connection: M8 connector
- Number of semiconductor outputs with signaling function: 1
- Number of contact outputs with signaling function: 0
- Number of safe semiconductor outputs: 1
- Number of safe contact outputs: 0
- Type of actuation: metallic target
- Housing design: rectangular
- Housing coating: other
- Cascadable: no
- Category according to EN 954-1: 1
- Performance Level according to EN ISO 13849-1: none
- Max. output current at safe output: 100 mA
- Supply voltage: 12 V
- Voltage type: AC/DC
- Switching frequency: 1000 Hz
- Housing material: plastic
- Pressure resistant: no
- Explosion protection category for gas: none
- Explosion protection category for dust: none
- Immunity to magnetic fields: immune to magnetic DC fields
- SIL according to IEC 61508: none.
2. APC GmbH Proximity switch inductive XS212BLPAL2
The inductive proximity switch XS212BLPAL2 from APC is a highly advanced electronic module designed for precise and reliable applications in industrial environments. With a cylindrical metal housing and a compact design, this sensor is ideal for use in tight spaces. The switch operates with a supply voltage of 12-24 V DC and offers a switching distance of up to 4 mm. Thanks to its robust construction, it meets protection classes IP 65 and IP 67, making it resistant to dust and water. The XS212BLPAL2 is equipped with a 2 m long cable that allows for flexible installation. It supports both PNP and NPN outputs and can be used in various formats such as M12, M18, and M30. This proximity switch is a reliable solution for applications that require precise object detection.
- Cylindrical metal housing for increased robustness
- Switching distance of up to 4 mm for precise detection
- Supply voltage of 12-24 V DC for versatile applications
- Protection classes IP 65 and IP 67 for dust and water resistance
- Supports PNP and NPN outputs for flexible connection options.

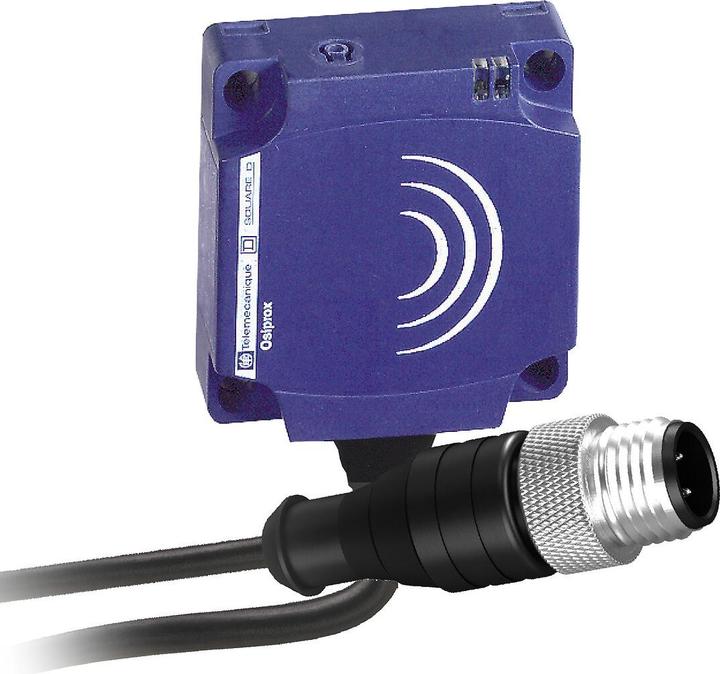

3. APC XS8C1A1PAL01M12 Proximity sensor Inductive proximity sensor
Telemechanique Sensors Inductive Proximity Switch XS8C1A1PAL01M12
Manufacturer: Telemechanique Sensors
Description: Inductive proximity switch PNP, NO, 3L, M12
Type: XS8C1A1PAL01M12
Sensor width: 40 mm
Sensor height: 40 mm
Sensor length: 15 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 15 mm
Suitable for safety functions: no
Switch function type: normally closed
Switch output type: PNP/PNP
Electrical connection type: M12 connector
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: rectangular
Housing coating: other
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us for DC: 12..24 V
Voltage type: AC/DC
Switching frequency: 1000 Hz
With monitoring function for downstream devices: no
Housing material: plastic
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic static fields
Additional details: XS8 Inductive proximity switch dimensions 40x40x15 mm, PBT plastic housing, switching distance Sn 25 mm, power supply 12-24 V DC, 0.15 m connection cable + M12 connector. EAN: 3389110142730.
4. APC Schneider Electric XS230BLNAL2 Proximity Sensor Inductive Proximity Sensor Metal
Telemechanique Sensors Inductive Proximity Switch XS230BLNAL2
Manufacturer: Telemechanique Sensors
Description: Inductive proximity switch M30, sensing distance 15mm
Type: XS230BLNAL2
Length of the sensor: 50.6 mm
Diameter of the sensor: 30 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 15 mm
Suitable for safety functions: no
Type of switching function: Normally open
Type of switching output: NPN/NPN
Type of electrical connection: Radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: Cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 100 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Type of voltage: AC/DC
Switching frequency: 60 Hz
With monitoring function for downstream devices: no
Material of the housing: Metal
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: immune to magnetic static fields
Telemechanique Sensors Inductive Proximity Switch XS230BLNAL2: additional details
XS2 Inductive Proximity Switch M30 cylindrical format, length 51mm, housing made of brass, switching distance 15mm, 12-24V DC, 2m cable.
Electronics modules
EUR66,04
APC Schneider Electric XS230BLNAL2 Proximity Sensor Inductive Proximity Sensor Metal
Switch
5. APC Schneider Electric XS4P30NA340 Proximity sensor Inductive proximity sensor 1 piece(s)
Telemechanique Sensors Inductive Proximity Switch XS4P30NA340
Manufacturer: Telemechanique Sensors
Description: Inductive proximity switch M30, Sn 15mm
Type: XS4P30NA340
Length of the sensor: 40.5 mm
Diameter of the sensor: 30 mm
Mechanical installation condition for the sensor: non-flush
Switching distance: 15 mm
Suitable for safety functions: no
Type of switching function: Normally open
Type of switching output: NPN/NPN
Type of electrical connection: Radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: Metallic target
Interface type: None
Interface type for safety-related communication: None
Housing design: Cylinder, threaded
Coating of housing: Other
Cascadable: No
SIL according to IEC 61508: None
Performance Level according to EN ISO 13849-1: None
Max. output current at safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us for DC: 12..24 V
Type of voltage: AC/DC
Switching frequency: 1000 Hz
With monitoring function for downstream devices: No
Material of the housing: Plastic
Pressure resistant: No
Explosion protection category for gas: None
Explosion protection category for dust: None
Immunity to magnetic fields: Resistant to magnetic static fields
Telemechanique Sensors Inductive Proximity Switch XS4P30NA340: Additional details
XS4-Inductive proximity switch in cylindrical design M30, length 43 mm, PPS plastic housing, switching distance Sn 15 mm, power supply 12-24 V DC, 2 m connection cable.
EAN: 3389110913057.
Electronics modules
EUR129,–
APC Schneider Electric XS4P30NA340 Proximity sensor Inductive proximity sensor 1 piece(s)
Switch
6. APC XS518B1PAL5 Proximity sensor Inductive proximity sensor metal 1 piece(s)
Telemechanique Sensors Inductive Proximity Switch XS518B1PAL5
Manufacturer: Telemechanique Sensors
Description: Inductive proximity switch M18, Sn 5mm
Type: XS518B1PAL5
Length of the sensor: 38.5 mm
Diameter of the sensor: 18 mm
Mechanical installation condition for the sensor: flush
Switching distance: 5 mm
Suitable for safety functions: no
Type of switching function: normally open
Type of switching output: PNP/PNP
Type of electrical connection: radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Type of voltage: AC/DC
Switching frequency: 2000 Hz
With monitoring function for downstream devices: no
Material of the housing: metal
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic static fields
Telemechanique Sensors Inductive Proximity Switch XS518B1PAL5: additional details
XS5 Inductive proximity switch in cylindrical design M18, length 39 mm, brass, switching distance Sn 5 mm, power supply 12-24 V DC, 5 m connection cable.
EAN: 3389110128673.
Electronics modules
EUR95,04
APC XS518B1PAL5 Proximity sensor Inductive proximity sensor metal 1 piece(s)
Switch
