Best Pepperl & Fuchs products in the Electronics modules category
On this page you'll find a ranking of the best Pepperl & Fuchs products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Pepperl & Fuchs Ultrasonic sensor

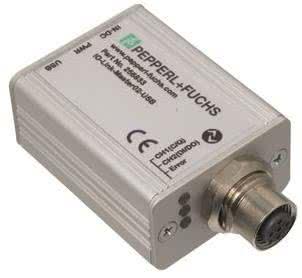

2. Pepperl & Fuchs Read/write head
3. Pepperl & Fuchs Ultrasonic sensor

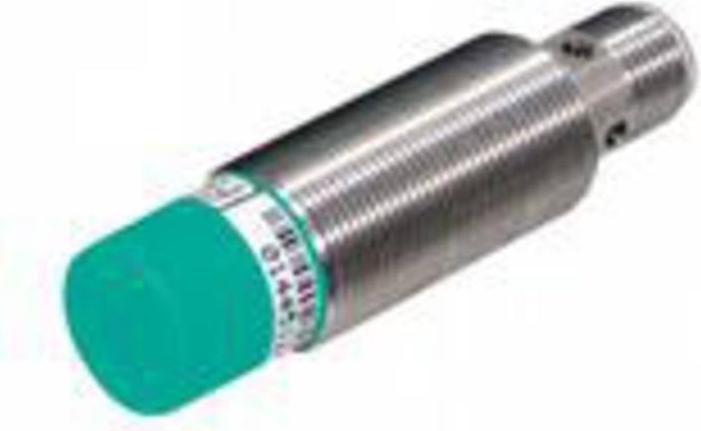

4. Pepperl & Fuchs Inductive sensor
The inductive sensor from Pepperl & Fuchs is a highly advanced electronic module designed for precise and reliable applications in automation technology. With a switching function as a normally closed (NC) contact and a two-wire output type, this sensor allows for easy integration into existing systems. The sensor is suitable for flush mounting and has an IP67 protection rating, making it ideal for use in demanding environments. The nickel-plated brass housing ensures durability and resistance to external influences. The sensor has a switching distance of 15 mm and is designed for use with metallic targets. With a supply voltage of 3.5 to 30 V DC, it is versatile and meets the requirements of modern automation solutions.
- Switching distance of 15 mm for precise detection
- Flush mounting for flexible installation options
- IP67 protection rating for use in harsh environments
- Nickel-plated brass housing for increased durability
- Two-wire output for easy integration into systems.
5. Pepperl & Fuchs Sensor

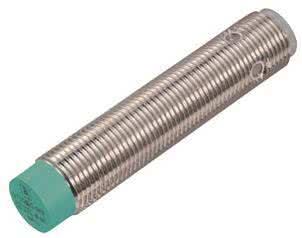

The inductive sensor NEN10-12GM50-E2-V1 from Pepperl & Fuchs is a high-precision electronic module designed for various industrial applications. With a switching distance of 10 mm and a switching frequency of up to 600 Hz, this sensor delivers reliable performance in dynamic environments. The design is cylindrical with a threaded body, allowing for easy integration into existing systems. The sensor is not flush mountable and features a PNP output for straightforward control. The nickel-plated brass housing ensures durability and resistance to environmental influences. With an operating voltage of 10 to 30 V DC, the sensor is versatile and suitable for a wide range of applications in automation technology.
- Switching function: Normally Open (NO)
- Output type: PNP with 3-wire connection
- Operating voltage: 10 to 30 V DC
- Housing material: nickel-plated brass
- Protection class: IP67.
6. Pepperl & Fuchs Proximity switch ind. 3RG40130KB00 M18x54MM 20-265VAC/DC 25HZ SA5MM
The inductive proximity switch 3RG40130KB00 from Pepperl & Fuchs is a highly advanced electronic module designed for a wide range of applications in automation technology. With an operating voltage of 20 to 265 VAC/DC and a frequency of 25 Hz, this sensor provides reliable performance in various environments. The switch is not safety-related and is ideally suited for standard applications where precise detection and control are required. Its compact design, with a diameter of 18 mm and a length of 54 mm, allows for easy integration into existing systems. The sensor can detect objects without direct contact, making it an excellent choice for applications where mechanical wear should be avoided. The robust construction ensures a long lifespan and reliability, even under demanding conditions.
- Operating voltage of 20 to 265 VAC/DC
- Frequency of 25 Hz for versatile applications
- Compact design with a diameter of 18 mm
- Robust construction for high reliability.
Electronics modules
EUR204,71
Pepperl & Fuchs Proximity switch ind. 3RG40130KB00 M18x54MM 20-265VAC/DC 25HZ SA5MM
Switch
7. Pepperl & Fuchs PEPPERL+FUCHS NBB3-V3-Z4
The PEPPERL+FUCHS NBB3-V3-Z4 is an inductive sensor designed for a wide range of applications in automation technology. With its compact design and robust construction, this sensor is ideal for use in demanding environments. The sensor operates with a normally open (NO) switching function and offers high flexibility with its operating voltage range of 5 to 60 V DC. The IP67 protection rating ensures that the sensor is dust-tight and protected against temporary immersion in water, making it particularly durable. The NBB3-V3-Z4 is designed for flush mounting, allowing for easy integration into existing systems. With a switching frequency of up to 2000 Hz, it is capable of delivering fast responses, making it a reliable choice for various industrial applications.
- Switching distance of 3 mm for precise detection
- Two-wire output type for easy wiring
- Operating voltage of 5 to 60 V DC for versatile applications
- Robust PBT housing for high resistance
- Easy installation through flush mounting.
8. Pepperl & Fuchs Sensor inductive NBB15-U1-A2
Pepperl+Fuchs Factory Sensor NBB15-U1-A2
Manufacturer: Pepperl+Fuchs Factory
Designation: Inductive Sensor
Type: NBB15-U1-A2
Sensor Width: 40 mm
Sensor Height: 40 mm
Sensor Length: 118 mm
Mechanical Installation Condition for Sensor: flush
Switching Distance: 15 mm
Suitable for Safety Functions: no
Switching Function Type: antivalent
Output Type: PNP
Electrical Connection Type: screw connection
Number of Semiconductor Outputs with Signaling Function: 2
Actuation Type: metallic target
Interface Type: none
Interface Type for Safety-Related Communication: none
Housing Design: rectangular
Housing Coating: other
Cascadable: no
Max. Output Current at Safe Output: 200 mA
Supply Voltage: 10..30 V
Rated Control Supply Voltage Us at DC: 10..30 V
Voltage Type: DC
Switching Frequency: 200 Hz
With Monitoring Function for Connected Devices: no
Housing Material: other
Pressure Resistant: no
Explosion Protection Category for Gas: none
Explosion Protection Category for Dust: none
Additional Details:
Switching Distance: 15 mm
Installation: flush
Switching Function: Antivalent
Output Type: PNP
Operating Voltage: 10 ... 30 V
Operating Current: 0 ... 200 mA
EAN: 4050143021239.
9. Pepperl & Fuchs Reflection light barrier
The reflection light barrier from Pepperl & Fuchs is a highly advanced electronic module designed for precise and reliable applications in automation technology. With its compact miniature design and versatile mounting options, it is ideal for use in tight spaces. The DuraBeam laser sensors offer a long lifespan and are comparable to the performance of LEDs. This light barrier operates in an extended temperature range of -40 °C to 60 °C and is equipped with a high protection rating of IP69K, making it particularly robust and resistant to environmental influences. The IO-Link interface allows access to service and process data, facilitating integration into existing systems and optimizing maintenance.
- Extended temperature range of -40 °C to 60 °C
- High protection rating IP69K for extreme environments
- DuraBeam laser sensors for long lifespan and reliability
- IO-Link interface for easy integration and data access.
10. Pepperl & Fuchs Inductive
The NBN8-18GM50-E2-V1 inductive sensor from Pepperl & Fuchs is a highly advanced electronic module designed for precise and reliable applications in automation technology. With an extended temperature range and a normally open (NO) switching function, this sensor offers high flexibility in various environments. The sensor is not flush mountable and features a PNP output type, allowing for easy integration into existing systems. The brass housing with a white bronze coating ensures durability and resistance to environmental influences. With an IP65 to IP68 protection rating, the sensor is optimally protected against dust and water, making it ideal for use in demanding industrial applications.
- Extended temperature range for versatile applications
- Switching distance of 8 mm for precise detection
- Robust brass housing with white bronze coating
- High protection rating IP65 to IP68 for reliable operation
- Switching frequency of up to 1650 Hz for fast responses.
