Best selling Electronics modules from RS PRO
On this page you’ll find a ranking of the best Electronics modules from RS PRO. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. RS PRO Linear Measuring Position Sensor, Analogue
The RS PRO position sensor for linear measurement is a high-precision electronic module designed for applications in various industrial environments. With a supply voltage of 28 V DC and a stroke of 50 mm, this sensor provides reliable and accurate position measurements. The encoder technology enables precise motion detection, while the analog output signal ensures easy integration into existing systems. The sensor is suitable for use in demanding conditions, as it supports an operating temperature range of -20°C to +80°C and is protected against dust and water with an IP65 rating. The wired connection ensures stable and secure data transmission, making it an ideal choice for various applications in automation technology.
- Operating temperature range of -20°C to +80°C
- IP65 protection class for use in harsh environments
- Analog output signals for easy integration
- Wired connection for stable data transmission
- Manufactured in Turkey, ensuring quality and reliability.

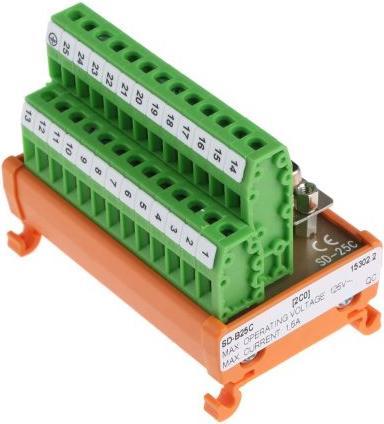

2. RS PRO D-sub connector interface Socket 25 pole
RS PRO 25 pole D-sub connector, female interface module, DIN rail mount. Use this D-sub interface module from RS PRO for all your wiring needs. It consists of a D-subminiature plug with 25 contacts, screw clamp terminals, and a DIN rail mounting plate.
3. RS PRO Reflex Photoelectric Sensor, Photoelectric
Sensor Type: Photoelectric
Operating Mode: Reflective
Detection Range: 4000 mm
Output Type: PNP
Connection: Cable
Max Direct Voltage: 36 V dc
Light Source: LED
IP Protection Class: IP67
Max Current: 200 mA
Interface: 4-Wire.

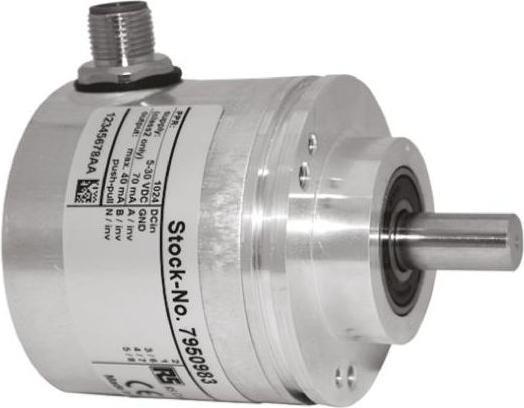

4. RS PRO 58mm optical incremental encoder
Pulses per revolution: 50
Encoder technology: Incremental
Maximum rotation: 8000 rpm
Output signal type: Push-pull inverted
Shaft type: Round
Supply voltage: 5 to 30 V DC
Resolution: 50 I/rev
Protection class: IP67
Total width: 58 mm diameter
Total depth: 85 mm
Operating temperature minimum: -20°C
Operating temperature maximum: +80°C
Mounting type: Clamp flange
Encoder WDG58B incremental, shaft, 58 mm. Detection of speed, position, displacement, or velocity. Industrial robust aluminum housing with clamping flange. High protection class DIN 40 050: IP65 (shaft), IP67 (cover). Very high axial and radial loads. Early warning output. Highly accurate chip evaluation. Standards: DIN VDE 0160.
5. RS PRO Sensor Inductive 10mm Detect. M12/30 PNP
Housing design: cylindrical
Thread size: M30 x 1.5
Output type: PNP make contact
Detection range: 10 mm
Connection type: M12 connector
Supply voltage: 10 to 30 Vdc
Length: 71 mm
DC voltage max: 30 V
Mounting type: flush mounting
Switching current: 200 mA
Housing material: nickel-plated brass
Operating temperature max: +75 °C
Standard series. RS Pro inductive sensors offer precise detection, long-term reliability, and high accuracy. The sensors are completely encapsulated and therefore offer high shock and vibration resistance. Properties and advantages include IP67 rating, nickel/brass housing with PBT sensing surface, flush mountable LED display, operating temperature range of -25 to +70 °C, and overload protection per EN60947-5-2.

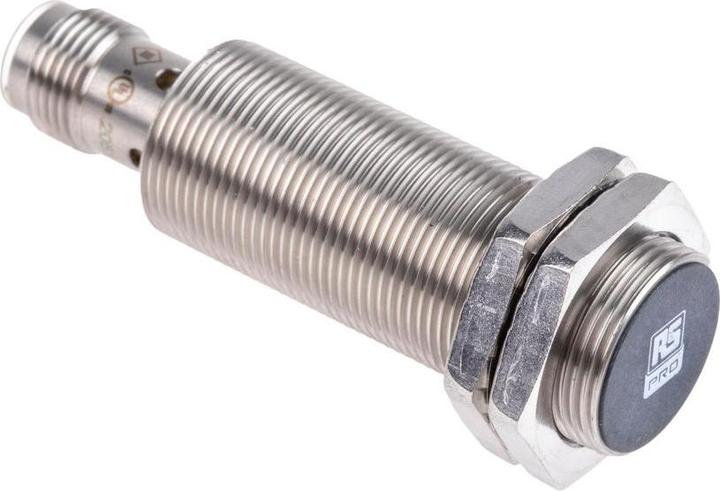

6. RS PRO M18 Proximity sensor PNP 10 30 V dc, cylindrical 8 mm, IP68
Inductive Proximity Sensor from RS Pro
Introducing the series of inductive proximity sensors from RS Pro. These versatile and high-quality sensors are an essential addition to any environment where measuring properties such as pressure is required.
Electronics modules
EUR65,78
RS PRO M18 Proximity sensor PNP 10 30 V dc, cylindrical 8 mm, IP68
Switch

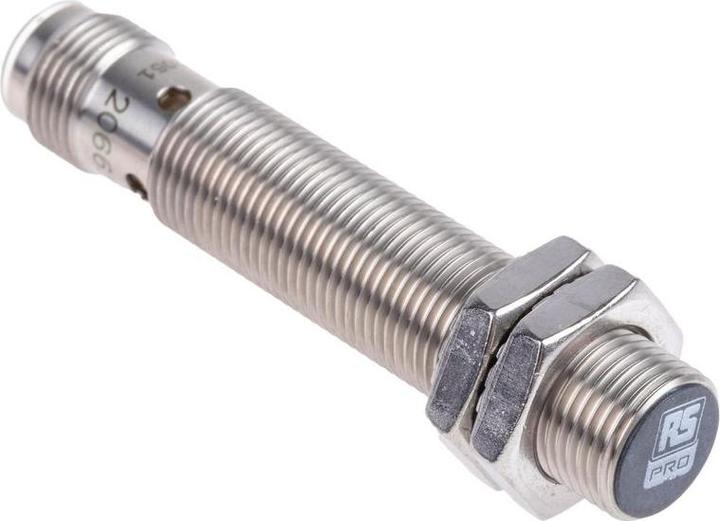

7. RS PRO M12 x 1 Proximity sensor cylindrical PNP 4 mm 10 30 V dc IP68
Inductive proximity sensor from RS Pro. Introducing the series of inductive proximity sensors from RS Pro. These versatile and high-quality sensors are an essential addition to any environment where measuring properties such as pressure is required.
Electronics modules
EUR61,14
RS PRO M12 x 1 Proximity sensor cylindrical PNP 4 mm 10 30 V dc IP68
Sensor

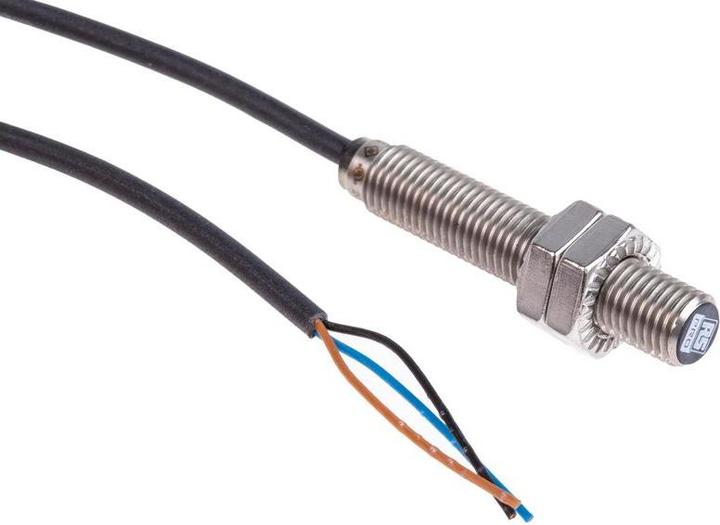

8. RS PRO M8 proximity sensor cylindrical PNP 2 mm 10 30 V dc IP68
Inductive Proximity Sensor from RS Pro
Introducing the series of inductive proximity sensors from RS Pro. These versatile and high-quality sensors are an essential addition to any environment where the measurement of properties such as pressure is required.
9. RS PRO Incremental Position Sensor, Line Driver Si
The RS PRO incremental position sensor is a high-precision electronic module designed for applications that require accurate position detection. With a supply voltage of 5 V dc and an impressive resolution of 5 μm, this sensor delivers reliable performance in various industrial environments. The encoder technology enables incremental measurement, which is essential for precise motion control and position tracking. The sensor is equipped with an IP65 protection rating, meaning it is protected against dust and splashes, making it ideal for use in harsh environments. With a stroke of 220 mm, this position sensor is versatile and can be integrated into a wide range of applications.
- Encoder technology: Incremental
- Output signal type: Line driver
- Resolution: 5 μm
- IP protection rating: IP65
- Operating temperature: suitable for various industrial environments.
10. RS PRO Incremental Position Sensor, Line Driver Si
The RS PRO Incremental Position Sensor is a high-precision electronic module designed for applications requiring accurate position measurements. With a stroke capacity of 320 mm and a resolution of 5 μm, this sensor delivers reliable performance in various industrial environments. The use of encoder technology allows for precise motion capture, while the line driver output signal ensures easy integration into existing systems. The sensor is designed to operate at a supply voltage of 5 V dc and meets the IP65 protection rating, making it resistant to dust and splashes. This makes it ideal for use in demanding environments where durability and reliability are crucial.
- Encoder technology for precise position measurement
- Line driver output signal for easy integration
- IP65 protection rating for use in harsh environments
- Operating temperature range for versatile applications.
