Best selling Lab power supplies from Peaktech
On this page you’ll find a ranking of the best Lab power supplies from Peaktech. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Peaktech P 6226 Switched-mode power supply unit
This laboratory power supply offers an adjustable DC voltage output of 0 - 30 V or 0 - 10 A. The current and voltage settings are made via digital potentiometers, allowing both values to be adjusted even when the output sockets are turned off. By pressing the respective rotary knob for current or voltage, the setting resolution can be switched from 10 mA to 100 mA or from 10 mV to 1 V. To ensure safe measurements, there is a button on the front of the PeakTech 6226 that is used to control the output of the voltage. The display also indicates when the output is active. With the CV and CC functions, the voltages and currents can be set to constant values that do not change when a load is connected. These features make the PeakTech 6226 a remarkable companion for any hobbyist electronics enthusiast as well as for any specialist.
2. Peaktech Labornetzgerät P 6168, 1...15 V, 0...60 A, 900 W

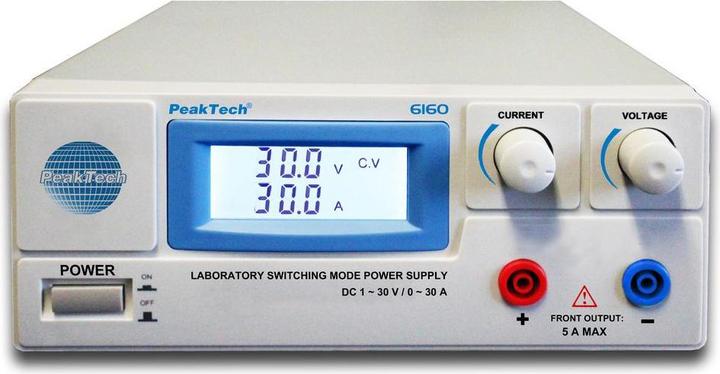

3. Peaktech P 6160 Schaltnetzgerät
This laboratory power supply features a voltage output of 1 - 30 V and can deliver a current of up to 30 A. The LCD display has a backlight, ensuring that all set values are optimally displayed and easily visible at all times. Only currents of up to 5 amperes can be drawn from the front sockets. At the terminal blocks located at the back, it is possible to allow currents of up to 30 amperes to flow. Thanks to its ability to output such high currents, this laboratory power supply is almost indispensable in both professional and advanced hobby sectors.
4. Peaktech P 6225 A Switched-mode power supply unit
This laboratory power supply offers a variable DC voltage output of 0 - 30 V or 0 - 5 A. The current and voltage settings are made via digital potentiometers, allowing both values to be adjusted even when the output sockets are turned off. By pressing the respective rotary knob for current or voltage, the adjustment resolution can be switched from 10 mA to 100 mA or from 10 mV to 1 V. To ensure safe measurements, there is a button on the front of the PeakTech 6225 A that is used to control the output of the voltage on and off. The display also indicates when the output is active. Another notable feature is the CV and CC function of the laboratory power supply. With this function, the voltages and currents can be set to constant values that do not change when a load is connected. These features make the PeakTech 6225 A a remarkable companion for any hobbyist in electronics, as well as for any specialist.
5. Peaktech P 6155 Schaltnetzgerät
This laboratory power supply features a voltage output ranging from 1 to 30 V and can deliver a current of up to 20 A. The rotary knobs allow for quick and easy adjustment of the output voltage. The LCD display, equipped with a backlight, presents all set values clearly and is easily readable at any time. The front sockets can only provide currents of up to 5 amperes. At the terminal blocks located at the back, it is possible to allow currents of up to 20 amperes to flow.
6. Peaktech P 6227 Switched-mode power supply unit
This newly developed laboratory power supply offers an adjustable 0...60V or 0...6A DC main output with a maximum continuous power of 150W. For developers, this lab power supply offers two switchable USB outputs with their own LCD display with voltage and current values. If you use a load up to 2.5A, you can regulate the output voltage up to 60V. If you want to use a higher current up to 6A, regulate the load to a maximum of 25V. Of course, all levels in between are also adjustable, such as 30V/5A, 40V/3.7A or 50V/3A. The current and voltage setting is also done when the output is switched off. By pressing the rotary knob for current or voltage, the setting resolution can be switched fine/coarse from 1mA to 100mA or 10mV to 1V. Due to the high range of functions and the simple operation with the best price/performance ratio, this laboratory power supply is ideal for the training, hobby, developer and service area.

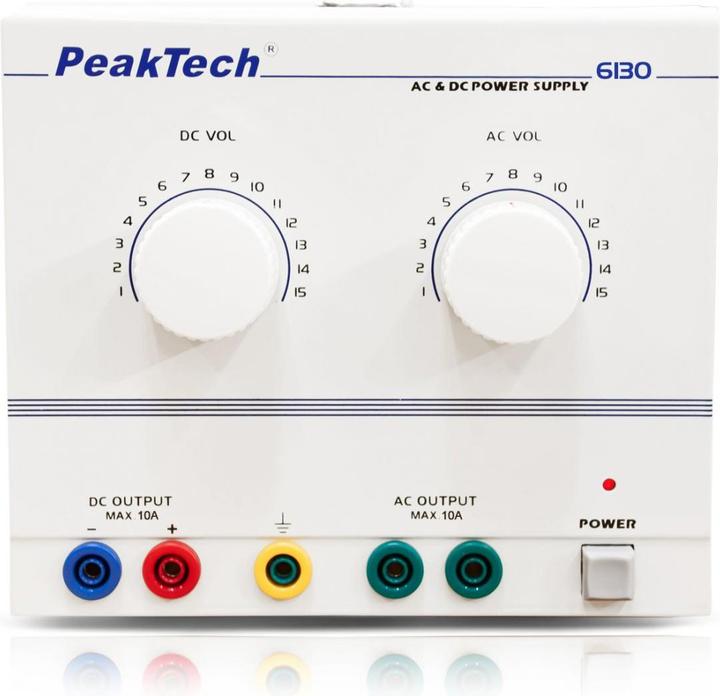

7. Peaktech P 6130 AC/DC laboratory power supply unit
This laboratory power supply for direct and alternating current, as well as direct and alternating voltage, impresses with its easy and user-friendly operation. The rotary knobs for alternating and direct voltage allow the respective voltages needed for the measurement setup to be adjusted and output at any time. The main power switch, integrated into the front of the device, enables the laboratory power supply to be turned on and off at any time. Due to its user-friendly operation, this laboratory power supply is excellent for use in nearly all areas of electrical engineering.
8. Peaktech P 6080 A Linear laboratory power supply unit
The new PeakTech 6080 A is a linear regulated laboratory power supply with passive cooling and high resolution digital display (1mA and 10mV). This model features coarse/fine control via separate potentiometers for precise selection of current and voltage settings. Due to the linear technology used, this model does not generate any high-frequency interference and a safety transformer in accordance with EN-61558-2-6 has also been used, which outputs a safety extra-low voltage (SELV) to ensure the greatest possible user safety. This power supply unit in modern design has been specially designed for the service and training sector and convinces with its excellent price/performance ratio.
