Best selling Lab power supplies from Voltcraft
On this page you’ll find a ranking of the best Lab power supplies from Voltcraft. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Voltcraft EL-1400 Elektronische Last 150 V/DC 40 A 400 W
High-precision load simulation for power sources. The Voltcraft EL-1400 DC is suitable for a variety of applications such as testing power supplies, batteries, or chargers. It offers load regulation in Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP) modes. Additionally, features like dynamic current testing up to 10 kHz and remote compensation are integrated. There is 1 output available, with load values adjustable up to a maximum of 150 V, 40 A, and 400 W.
Safe operation. To ensure safe operation, the Voltcraft EL-1400 DC is protected against overvoltage, overload, overperformance, and overheating. The parallel control supports up to 10 devices and is also suitable for potentially high-power applications.
Convenient evaluation. All data is displayed on a clearly readable 10 cm (3.9 inch) TFT LCD color display. Furthermore, a USB port and an RS232 standard interface for SCPI protocols are available.
Mounting and accessories. For stand-alone operation, the Voltcraft EL-1400 DC is equipped with foldable stand feet. For rack mounting, the power supply requires two height units at half rack width. Along with the device, a power cable, a user manual, and a safety data sheet are included.
2. Voltcraft VSPP-3030 Labornetzgerät fuer Rackeinbau einstellbar 0 -/DC 0
The VSPP-3030 laboratory power supply from Voltcraft is a state-of-the-art solution for rack mounting, ideal for various laboratory applications. With an adjustable output voltage of 0 to 300 volts and a maximum output current of 15 amps, this device delivers up to 3000 watts of power. It is designed for both stationary use and mobile applications, allowing for precise control of output values. The programmability via USB and LAN enables easy integration into automated testing environments, while remote control options provide additional flexibility. This laboratory power supply is therefore a valuable addition to any technical facility that relies on reliable and customizable power supply.
- Adjustable output voltage from 0 to 300 V
- Maximum output current of 15 A
- Powerful with up to 3000 W
- USB and LAN programmability for easy integration.

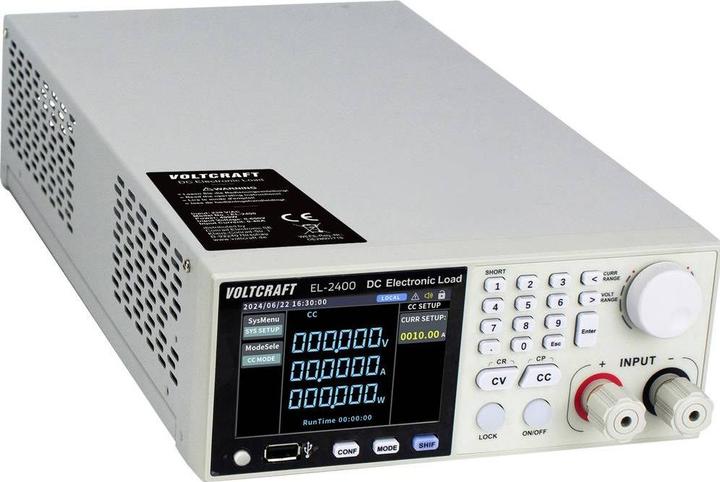

3. Voltcraft EL-2400 Elektronische Last 600 V/DC 40 A 400 W
High-precision load simulation for power supplies. The Voltcraft EL-2400 DC is suitable for a variety of applications such as testing power supplies, batteries, or chargers. It offers load regulation in Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP) modes. Additionally, features such as dynamic current testing up to 10 kHz and remote compensation are integrated. There is 1 output available, with load values adjustable up to a maximum of 230 V, 40 A, and 400 W.
Safe operation. To ensure safe operation, the Voltcraft EL-2400 DC is protected against overvoltage, overload, overperformance, and overheating. The parallel control supports up to 10 devices and is also suitable for potentially high-power applications.
Convenient evaluation. All data is displayed on a clearly readable 10 cm (3.9 inch) TFT LCD color display. Furthermore, a USB port and an RS232 standard interface for SCPI protocols are available.
Mounting and accessories. For stand-alone operation, the Voltcraft EL-2400 DC is equipped with foldable stand feet. For rack mounting, the power supply requires two height units at half rack width. Along with the device, a power cable, a user manual, and a safety data sheet are included.
4. Voltcraft VSPP-3060 Labornetzgerät Rackeinbau 0 -/DC 0
The Voltcraft VSPP-3060 laboratory power supply is a powerful solution for rack mounting, offering an adjustable output voltage of 0 to 600 volts and a maximum output current of 10 amperes. With a total power of 3000 watts, this device is ideal for demanding applications in laboratories and technical environments. Programmability via USB and LAN allows for easy integration into automated systems and remote control of the device, enhancing flexibility and user-friendliness. The laboratory power supply is designed for mains operation and provides a reliable power supply for various electronic projects. Made in China, the VSPP-3060 combines modern technology with a robust construction to meet the needs of professional users. It is an excellent choice for engineers, technicians, and researchers who require precise and stable voltage and current sources.
5. Voltcraft VSPP-1215 Labornetzgerät fuer Rackeinbau einstellbar 0 -/DC 0
The Voltcraft VSPP-1215 laboratory power supply is a state-of-the-art solution for rack mounting, characterized by its versatile adjustability and powerful specifications. With a maximum output voltage of 150 volts and an output current of up to 20 amperes, this device delivers 1200 watts of power, making it suitable for a variety of applications in laboratories and technical environments. The programmability via USB and LAN allows for easy integration into automated systems and remote control of the device, enhancing flexibility and user-friendliness. The VSPP-1215 is ideal for professionals who need a reliable and customizable laboratory power supply that meets the demands of complex projects.
- Maximum output voltage of 150 V and output current of 20 A
- Powerful with 1200 W for versatile applications
- USB and LAN interfaces for programmability and remote control
- Suitable for rack mounting, optimized for space-saving solutions.
Lab power supply
−25%
EUR1405,– was EUR1869,–
Voltcraft VSPP-1215 Labornetzgerät fuer Rackeinbau einstellbar 0 -/DC 0

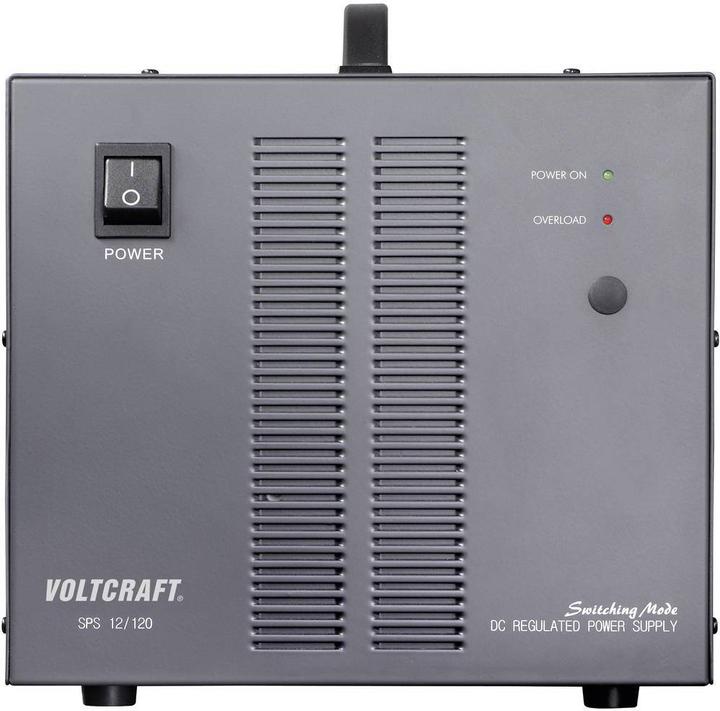

6. Voltcraft High-current switched-mode power supply
For those who require high currents. The SPS 12/120 power supply delivers a continuous output current of 120 A at adjustable 12 - 14.5 V/DC. The primary-switched power supply operates with an efficiency of ≥ 85%, making it extremely effective. A sense function compensates for voltage drop on the output line, ensuring that the set output voltage is maintained at the connected load.
7. Voltcraft VSPP-3015 Labornetzgerät fuer Rackeinbau einstellbar 0 -/DC 0
The Voltcraft VSPP-3015 is a powerful laboratory power supply specifically designed for rack mounting. With an adjustable output voltage of up to 150 V and a maximum output current of 30 A, this device offers a total power of 3000 W. It is ideal for applications in laboratories, research, or development where precise voltage and current values are required. The programmability via USB and LAN allows for easy integration into automated testing environments and remote control of the device. The robust design and versatile features make the VSPP-3015 a reliable choice for professionals who need a high level of control and flexibility.
- Adjustable output voltage up to 150 V
- Maximum output current of 30 A
- Powerful with 3000 W
- USB and LAN programming for easy integration.
8. Voltcraft DLP-3603 Laboratory power supply, adjustable 0 V - 60 V/AC 0 - 3 A 378 W Sla
Programmable DC Power Supply
The Voltcraft DLP-3603 power supply offers three independently programmable channels for DC power supply. Up to 378 W of power is available in single, parallel, or series configurations. The voltage is adjustable from 0 to 60 V, and the current can be set from 0 to 3 A. The Voltcraft DLP-3603 is characterized by low noise and an output resolution of 1 mV / 1 mA.
Valuable Extra Features
The Voltcraft DLP-3603 is equipped with a variety of practical functions: output voltage and current can be recorded and saved in a table. Additionally, up to 100 group timers can be programmed. A 4-inch high-resolution LC display (480 × 320 pixels) allows for clear operation. Smooth operation is ensured by overvoltage and overcurrent protection, as well as automatic cooling. Interfaces include USB, RS232, and LAN. Furthermore, the Voltcraft DLP-3603 supports SCPI.
Scope of Delivery
In addition to the power supply with mains and USB cables, the delivery package includes a 250-V fuse, a CD-ROM, the user manual, and a sheet with safety instructions.
Lab power supply
EUR608,79
Voltcraft DLP-3603 Laboratory power supply, adjustable 0 V - 60 V/AC 0 - 3 A 378 W Sla
9. Voltcraft Linear laboratory power supply unit
Electronically stabilized laboratory power supply unit with separate voltage and current regulators. The current limit can be preset at the output without a short-circuit bridge. The LPS series is actively ventilated.
10. Voltcraft Laboratory power supply, adjustable PP
The PPS series laboratory power supply serves as a floating DC voltage source for operating low-voltage consumers. The adjustable output can be accessed from the front up to a maximum of 5 A and from the rear up to the full rated current (1 - 18 V/DC / 0 - 10 A). Connections are made at the front via 4 mm safety sockets and at the rear via high-current screw terminal sockets. Voltage and current settings are continuously adjustable using digital rotary knobs with coarse and fine adjustments, allowing for quick and precise value settings. The values are displayed on a clear screen. The current limit for constant current operation can be preset without a short-circuit bridge. Three freely programmable memory slots can be assigned different fixed voltages and current limits. Additionally, the power supply can be controlled via a PC using the included software and USB connection for operating cyclic processes. Up to 20 programmable voltage and current sets with varying durations can be programmed for operation. The cyclic processes can be repeated up to 999 times. Special feature: programmable.
