Best Murr Elektronik products in the Relays category
On this page you'll find a ranking of the best Murr Elektronik products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Murr Elektronik 7000-31261-0000000 Proportionalverstärker
Murrelektronik Proportional Amplifier 7000-31261-0000000
Manufacturer: Murrelektronik
Designation: Proportional Amplifier
Type: 7000-31261-0000000
Power Supply Type: Active
Rated Operating Frequency: 0 Hz
Rated Supply Voltage (DC): 24 V
Number of Input Ranges 0 V ... 10 V: 1
Number of Output Ranges 0 V ... 24 V: 1
Number of Channels: 1
Fault Signal Output: No
Intrinsic Safety according to EN 60947-5-6 NAMUR: No
Galvanic Isolation between Inputs: No
Galvanic Isolation between Input and Output: Yes
Galvanic Isolation between Outputs: No
Galvanic Isolation between Supply Voltage and all other Circuits: No
Height: 75 mm
Width: 22.5 mm
Depth: 102 mm
Operating Temperature: -20..60 °C
Device Design: Built-in Device
Electrical Connection Type: Screw Connection
Mounting Type: Snap Fastening
Mounting Rail
Protection Class (IP): IP20
The amplifier regulates the power supply to a proportional valve. This current is proportional to the setpoint at the amplifier's input. A voltage output of 10 V is available for setpoint specification. Zero point, current, rise and fall time (ramp). This product is intended exclusively for commercial use.
EAN: 4048879186810.
2. Murr Elektronik MICO 4.1 SPEED-START load circuit monitoring, 4-channel IN: 24 V DC OUT: 24 V DC 4-6-8-10 A
The MICO 4.1 SPEED-START from Murr Elektronik is a highly advanced relay for load circuit monitoring, specifically designed for 24 V DC SELV and PELV circuits. This device provides reliable control over the operation of actuators and sensors installed outside the control cabinet and supports an input capacity of up to 820 µF. The MICO 4.1 ensures safety and efficiency by complying with relevant standards, including fire protection according to EN 60950-1 and operational voltage protection according to EN 61131-2. Its modular design allows for easy adjustment of the output current per channel, which can be set using a rotary switch. With robust terminals for input and output connections, this product is ideal for commercial use and offers user-friendly installation.
- Input voltage of 24 V DC for SELV and PELV circuits
- Adjustable output current per channel (4-10 A)
- Input capacity up to 820 µF for flexible applications
- Compliance with safety standards according to EN 60950-1 and EN 61131-2
- Robust terminals for easy installation and connection.
Relays
EUR267,58
Murr Elektronik MICO 4.1 SPEED-START load circuit monitoring, 4-channel IN: 24 V DC OUT: 24 V DC 4-6-8-10 A
3. Murr Elektronik Load circuit monitoring
Murrelektronik load circuit monitoring 4K 9000-41094-0101000
Manufacturer: Murrelektronik
Designation: Load circuit monitoring 4K 1-10A
Type: 9000-41094-0101000
Electrical connection design: Spring clamp connection
With detachable terminals: No
1-phase undercurrent possible: No
3-phase undercurrent possible: No
1-phase overcurrent possible: No
3-phase overcurrent possible: No
1-phase window possible: No
3-phase window possible: No
Contains function DC voltage undercurrent: Yes
Contains function DC voltage overcurrent: Yes
Function DC current window: No
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Voltage type for actuation: DC
Current measuring range: 1-10 A
Min. adjustable response delay time: 0 s
Max. permissible response delay time: 0 s
Min. adjustable off-delay time: 0 s
Max. permissible off-delay time: 0 s
Permissible off-delay time: 0 s
Number of contacts as break contacts: 4
Number of contacts as make contacts: 1
Width: 24 mm
Height: 130 mm
Depth: 114 mm
Murrelektronik load circuit monitoring 4K 9000-41094-0101000: more details Mico Pro load circuit monitoring, 4-channel IN: 24 V DC OUT: 24 V DC / 1-2-3-4-5-6-7-8-9-10 A, EAN: 4048879552745.
4. Murr Elektronik Basic 4.6 Load circuit monitoring
Murrelektronik 9000-41064-0600000 MICO.

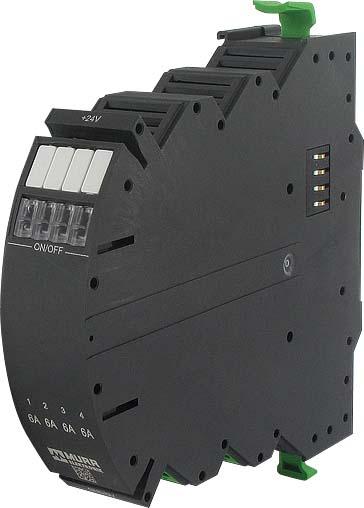

5. Murr Elektronik Mico Pro load circuit monitoring, 4-channel IN: 24 V DC OUT: 24 V DC 4 A
The Mico Pro load circuit monitoring device from Murr Elektronik is a highly advanced monitoring relay specifically designed for commercial applications. With an input voltage of 24 V DC and an output voltage of 24 V DC, this device offers a reliable solution for monitoring load circuits. It is capable of delivering a maximum output current of 4 A, making it ideal for various industrial applications. The compact design allows for easy integration into existing systems, while the 4-channel configuration enables flexible monitoring of multiple load circuits simultaneously. This product is not suitable for use in smart home applications and is manufactured in the Czech Republic.
- 4-channel monitoring for flexible applications
- Maximum output current of 4 A
- Compact design for easy integration
- Exclusively designed for commercial applications.
Relays
−31%
EUR159,– was EUR230,98
Murr Elektronik Mico Pro load circuit monitoring, 4-channel IN: 24 V DC OUT: 24 V DC 4 A
6. Murr Elektronik Mico Pro load circuit monitoring, 2-channel IN: 24 V DC OUT: 24 V DC 1-2-3-4-5-6-7-8-9-10A
The Mico Pro load circuit monitoring relay from Murr Elektronik is a highly advanced device specifically designed for commercial applications. It provides reliable monitoring of load circuits with an input voltage of 24 V DC and a maximum output voltage of 24 V DC. With two channels, it allows for the simultaneous monitoring of multiple loads, enhancing efficiency and safety in industrial applications. The device is capable of handling output currents of up to 10 A, making it a flexible solution for various requirements. Its compact design, measuring 114 mm in length, 12 mm in width, and 130 mm in height, enables easy integration into existing systems. The Mico Pro load circuit monitoring relay is not suitable for the smart home sector but is aimed at professional users who need precise and reliable monitoring of their electrical loads.
- Two channels for simultaneous monitoring of loads
- Maximum output current of 10 A
- Input voltage of up to 30 V DC
- Compact design for easy integration
- Designed for commercial applications.
Relays
EUR173,46
Murr Elektronik Mico Pro load circuit monitoring, 2-channel IN: 24 V DC OUT: 24 V DC 1-2-3-4-5-6-7-8-9-10A
7. Murr Elektronik Load monitoring 36 - 60 V/DC 9000-42084-0100600 1 pc.
The load monitoring relay from Murr Elektronik is a reliable device for monitoring electrical loads in the range of 36 to 60 V/DC. With an input voltage of 48 V and a maximum output current of 6 A, this relay provides precise control and safety for various applications. It is particularly suitable for use in industrial environments where continuous monitoring of electrical loads is required. The compact design allows for easy integration into existing systems, while the robust construction ensures durability. This monitoring relay is a valuable component for anyone seeking a reliable and efficient solution for load monitoring.
- Input voltage of 36 to 60 V/DC
- Maximum output current of 6 A
- Robust construction for industrial applications
- Compact dimensions for easy integration.

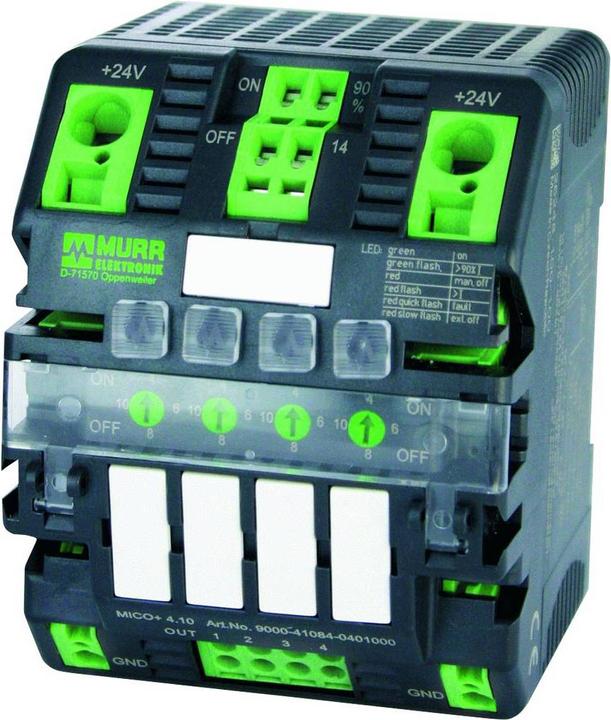

8. Murr Elektronik Load monitoring 18 - 30 V/DC 9000-41084-0401000 1 pc.
MICO+ 4.10 last circuit monitoring, 4-channel IN: 24VDC OUT: 24V/4-6-8-10ADC. This product is intended solely for commercial use.
9. Murr Elektronik Lastkreisüberwachung 9000-41068-0200000
The load circuit monitoring device 9000-41068-0200000 from Murr Elektronik is a highly advanced monitoring relay specifically designed for load and short-circuit monitoring in control circuits. With eight individually monitored and switched output channels, this device provides precise control over electrical loads. The input terminals are designed for a maximum cross-section size of 1 × 16 mm², while the output terminals support a size of 1 × 4 mm² per channel. The reporting terminals are designed for 2.5 mm², allowing for flexible and secure installation. This product is intended exclusively for commercial use and meets the requirements of modern electrical monitoring systems.
- Input voltage of 24 volts DC for reliable performance
- Maximum output current of 2 amperes for load control
- Robust construction with a weight of 0.16 kg
- Compatible with a variety of control circuits
- Manufactured in the Czech Republic, ensuring high quality standards.
10. Murr Elektronik Load monitoring 9 - 30 V/DC 9000-41014-0200000 1pce.
The load monitoring relay from Murr Elektronik is a highly advanced device specifically designed for monitoring load circuits in commercial applications. With an input voltage of 12 V DC and an output voltage of 24 V DC, this 4-channel relay provides a reliable solution for monitoring electrical loads. It is capable of delivering an output current of up to 2 A, making it ideal for various industrial applications. The compact design allows for easy integration into existing systems, while the robust construction ensures durability and reliability. This product is not suitable for use in smart home environments and should be used exclusively in commercial settings.
- 4-channel load circuit monitoring
- Input voltage of 12 V DC
- Output voltage of 24 V DC with 2 A
- Robust design for industrial applications.
