Top-rated products in the Lab power supply category
Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.
1. Velleman Dc Dual Laboratory Power Supply Unit
Qualities
- LCD display for voltage and current
- Protection mode: current limitation
- Colour: white-grey
- Safety sockets
- Output sockets: IEC1010
- Only suitable for indoor use
- Pollution degree II
- Fused
Technical Specifications
- Input voltage: 230 VAC 50 Hz 2.0 A 300 W pf: 0.78
- Output voltage: 2 x 0-30 VDC max. adjustable + 5 VDC fixed
- Output current: 2 x 0-3 A max. adjustable + 1 x 3 A fixed
- Residual ripple: =/< 1 mV
- Fuse: T4 / 250 V
- Max. relative humidity: < 90
- Height: max. 2000 m
- Operating temperature: 5°C - 40°C
- Dimensions: 360 × 265 × 165 mm
- Weight: 7.139 kg.

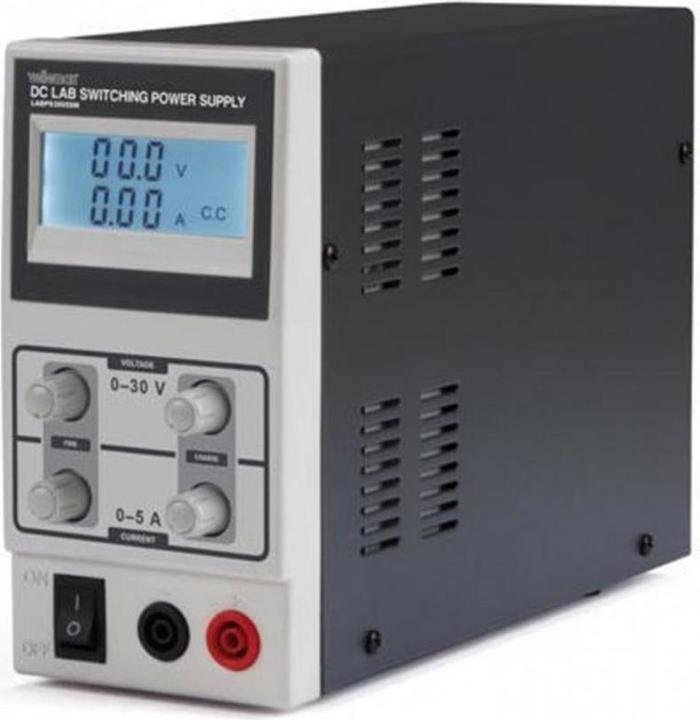

2. Velleman Dc Lab Switching Mode Power Supply 0-30 Vdc / 0-3 Max With LCD Display
Properties
- Switching power supply
- LCD display for voltage and current
- Protection mode: Current limitation
- Colour: Grey - dark grey
- Safety sockets
- Output sockets: IEC1010
- Fused
Technical data
- Input voltage: 230 VAC 50 Hz 1A 126W pf: 0.55
- Output voltage: 0-30 VDC max. adjustable
- Output current: 0-3 A max. adjustable
- Ripple: 200 mVp-p
- Dimensions: 85 × 160 × 205 mm
- Weight: 1.334 kg
- Fuse: T3.15.
Lab power supply
EUR104,82
Velleman Dc Lab Switching Mode Power Supply 0-30 Vdc / 0-3 Max With LCD Display
3. Velleman Labps3005dn
Programmable laboratory power supply 0-30V DC / 5A max. with LED displays and USB 2.0 interface.
Features & Benefits
- LED display for voltage and current
- Protection mode: Current limitation
- Memory: 5 programmable memories
- Colour: White-grey
- Only suitable for indoor use
- Pollution degree II
- Connection: PC remote control via USB
- Delivery with software V 1.05 for Windows XP, Vista, W7, W8, W8.1, W10 (32 bits + 64 bits)
- Protected by fuse
Technical Data
- Input voltage: 230 VAC 50 Hz 1.5 A 345W pf: 0.8
- Output voltage: 0-30 VDC max. adjustable
- Output current: 0-5 A max. adjustable
- Residual ripple: ≤ 1 mV
- Ripple current: 3 mA
- Fuse: 2 A / 250 V
- Max. relative humidity:.
4. Velleman LABPS3060SM Laboratory power supply unit
Our high-quality laboratory power supplies operate in both constant voltage and constant current modes. Our power supplies effortlessly switch to constant current mode in case of overload, ensuring a constant maximum output power. If a short circuit occurs, you don't need to worry, as our power supplies are equipped with automatic current limiting (unless you have set a lower current value).
5. TDK 19 inch laboratory power supply, adjustable
The powerful 1520 Watt laboratory power supply, with a height of just 1U, can be stacked directly on top of each other, eliminating the need for any air gaps above or below, effectively fitting within 1U. Output voltages of 0 - 40 V/DC and output currents of 0 - 38 A can be set directly on the device or remotely via the built-in RS232/RS485 interface. All important functions can also be programmed through analog inputs (control voltage 0-5V, 0-10V, control current 4-20 mA, or via an external resistor for digital control, e.g., through LabView and LabWindows, with corresponding drivers available). High-resolution 16-bit A/D and D/A converters enable very precise adjustment and programming. The rotary knobs on the device can be switched between coarse and fine adjustment. A dual digital display shows the current values as well as various status information (including Over Voltage Protection, Under Voltage Limit, overload mode, address settings), and a monitor output provides corresponding analog voltages (0-5V or 0-10V) for external monitoring. Of course, the device can operate as both a constant voltage and constant current source, automatically switching between these modes as needed. Multiple devices can be connected in series or parallel. The GEN/H type has half the size of 19" racks.

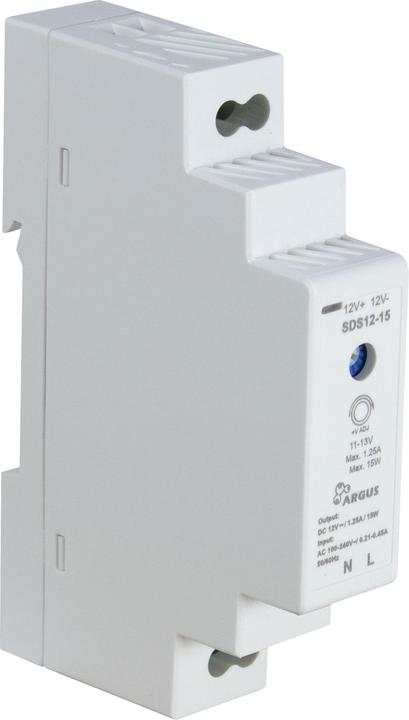

6. Intertech INTER-TECH SDN 12-15 DIN rail power supply 12V output voltage 15W power
The INTER-TECH SDN 12-15 DIN rail power supply is a reliable laboratory power supply that provides an output voltage of 12 volts and a power of 15 watts. It is specifically designed for use on DIN rails and is ideal for various applications in electronics and automation technology. The device operates on mains power and features a compact design that allows for easy integration into existing systems. With a simple white housing, the power supply harmoniously fits into different environments. It does not have a display, which simplifies operation and focuses on functionality. Manufactured in China, the power supply meets the requirements for stable and safe power supply. The INTER-TECH SDN 12-15 is a practical solution for anyone needing a powerful and efficient power supply to reliably power their electrical devices.
Lab power supply
EUR22,61
Intertech INTER-TECH SDN 12-15 DIN rail power supply 12V output voltage 15W power
7. QuatPower LN-5003XE power supply unit 0...50V-, 0...3A, LED display
Laboratory power supply unit with a maximum output voltage of 50 V, adjustable current limiting, and sense connection. Output via 4 mm safety sockets and screw terminals. Features pre-setting of voltage and current. Ideal for workshops, laboratories, and hobbies.
8. Rohde & Schwarz NGP-K107 Analogue input (16-pin connector block) for NGP80 series power supply unit
Accessory type: Analog input (16-pin connector block). Suitable for use with: Power supply of the NGP800 series. The analog input software license of the Rohde & Schwarz NGP series is used to directly control output voltages and currents.
Lab power supply
EUR449,28
Rohde & Schwarz NGP-K107 Analogue input (16-pin connector block) for NGP80 series power supply unit
9. Rs Pro 3 channels,217W linear DC power supply
User manual (CD), power cord, test leads. RS PRO multiple output linear DC power supply. From RS PRO, comes a range of high quality and economical multiple output linear DC power supplies with LCD display screens. Manufactured to industry standards.
10. QuatPower Power supply LN-3003XE, LED 0...30V-, 0...3A, sockets/terminals
Laboratory power supply with a maximum output voltage of 30 V, adjustable current limit, and sense connection. Output via 4 mm safety sockets and screw terminals. Features pre-setting of voltage and current. Ideal for workshop, laboratory, and hobby use!.
