Android Document Camera Elmo MA-1

For more exploration in the classroom. The MA-1 document camera from ELMO enables the integration of traditional teaching materials and augmented reality content into lessons. It features a foldable arm and a 5-inch display. With a 16x zoom and Full HD resolution, it allows for capturing objects and documents up to A3 size. Additionally, the MA-1 is equipped with an Android platform, built-in microphone, and speakers.

Highlights:

• Full HD resolution

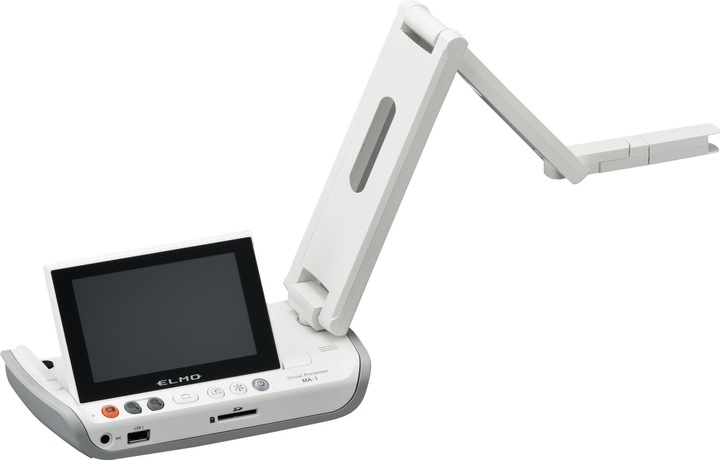

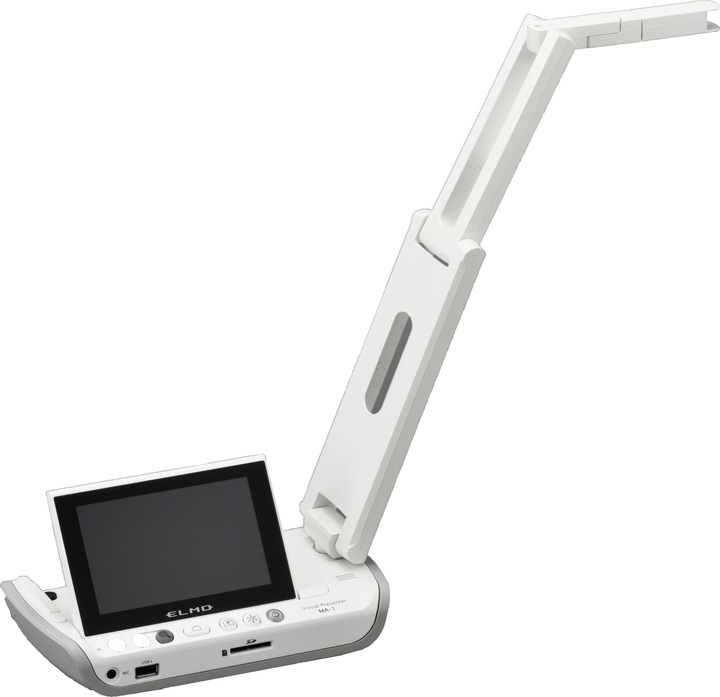

• Foldable arm
• 16x zoom
• Integrated annotation function
• 5-inch display, microphone, and speakers included
• Photo and video recording capabilities
• Playback:
• Photo: JPG, PNG, BMP
• Video: MP4
• Documents: PDF, Office (Word, Excel, PowerPoint)
• Android operating system
• Mouse operation possible
• Battery life up to 2 hours and 50 minutes
• Versatile connectivity options (e.g., HDMI, USB, VGA)

Technical Details:

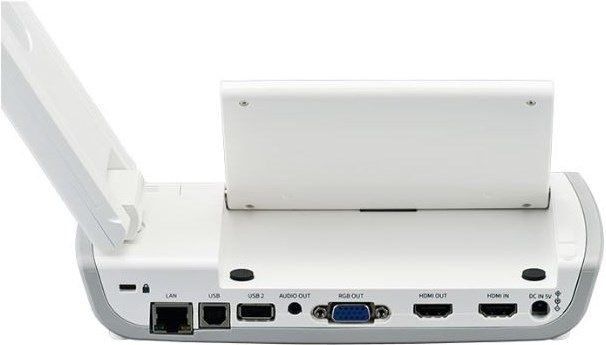

• Inputs and Outputs:
• 2x USB Type A Ver. 2.0
• 1x USB Type B Ver. 2.0
• 1x HDMI Type A In/Out
• 1x VGA Out
• 1x LAN
• 1x Audio Out
• 1x Mic In
• 1x SD Slot
• Wireless: WiFi IEEE802.11 a/b/g/n, 2.4 GHz / 5 GHz, Miracast (720p)
• Dimensions (W x D x H): folded: 220 x 115 x 57 mm, unfolded: 220 x 115 x 343 mm.
