Frequency: 7 MHz
Display type: LCD
Dimensions: 150 x 74 x 32 mm
Battery type: AA
Set content: case, interface cable
Height: 32 mm
Length: 150 mm
Measuring range max: 80 mm
Measuring range min: 0.75 mm

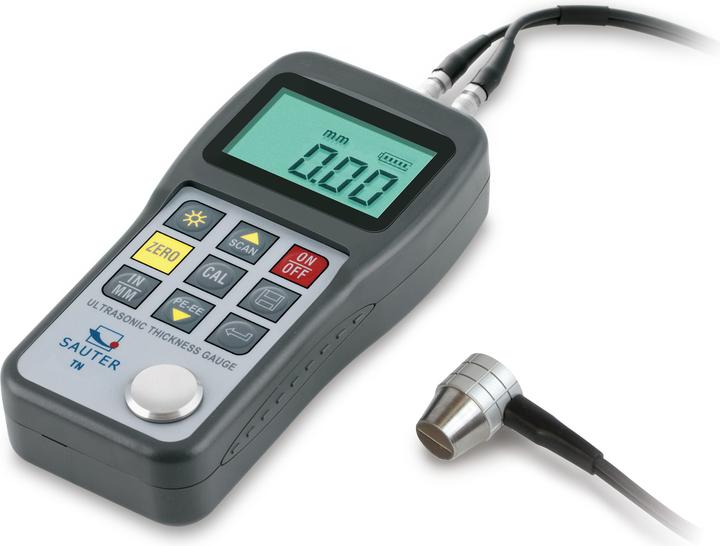

Calibration tool, 2 x 1.5V batteries type AA, carrying case. Material thickness gauge, TN series. Digital material thickness gauges with RS 232C interface. External measuring head with 1 m cable for easy access to the measuring point. Measuring range switchable between mm and inch. Auto power-off function. Measuring head diameter: 10 mm, Frequency: 5 MHz. Speed of sound: 1000 to 9999 m/s. Data memory for 20 files per 100 measured values. Suitable for measuring the thickness of hard materials such as metals, glass, and plastics. Ideal for material thickness, corrosion, and wear testing of pressure vessels, boilers, and tanks in machine, ship, and bridge construction, as well as in power plants and the oil industry. Dimensions (L x W x H): 150 x 74 x 32 mm. Weight: 245 g.
