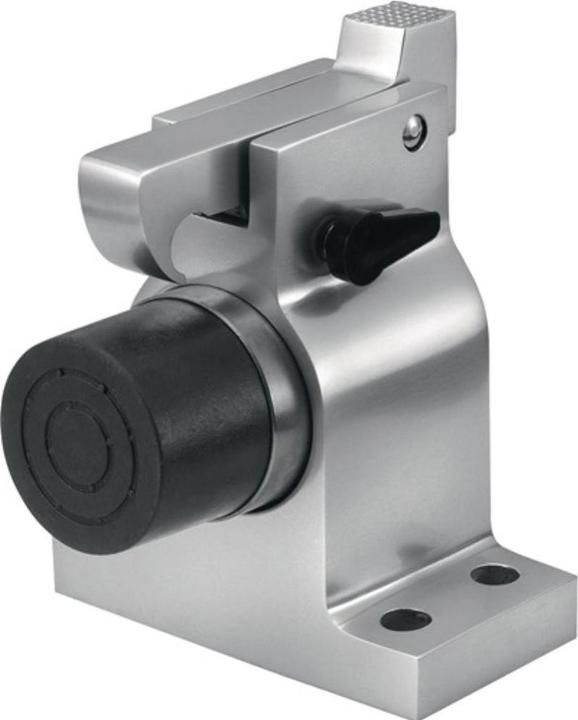

Delivery contents: Door stop 1010.02 aluminum painted in silver.

Product description: Aluminum, roller bracket with a painted steel surface or an anodized stainless steel surface. Release lever to deactivate the locking function, for screw mounting. Black rubber buffer, spring-loaded. Maximum door weight approx. 100 kg. Function: To lock, the door is pushed against the door stop until the catch hook engages. Release is done by pressing the catch hook while simultaneously pushing the door against the door stop. Moving the release lever from position A to B deactivates the locking mechanism. The door stop then only functions as a spring-loaded buffer. Installation: At the desired stopping point, which should be as far away from the door hinge as possible, screw the door stop to the floor with four screws and embedded dowels, and attach the roller bracket to the door at the appropriate location.

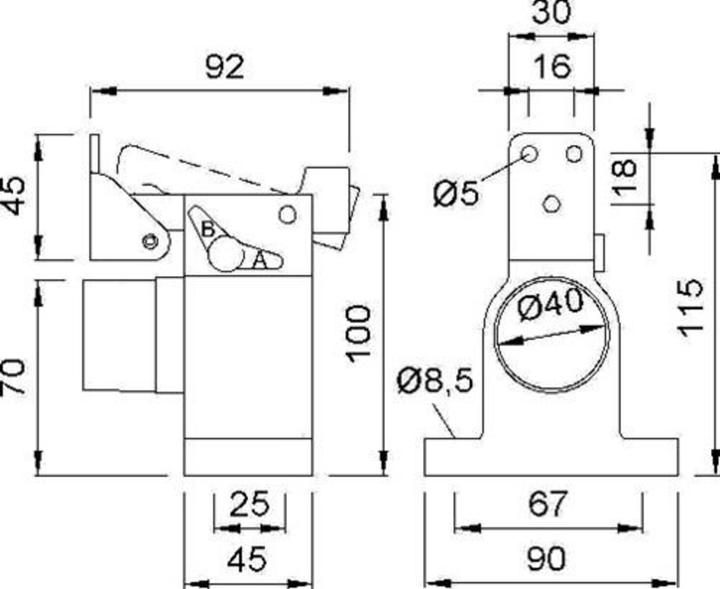

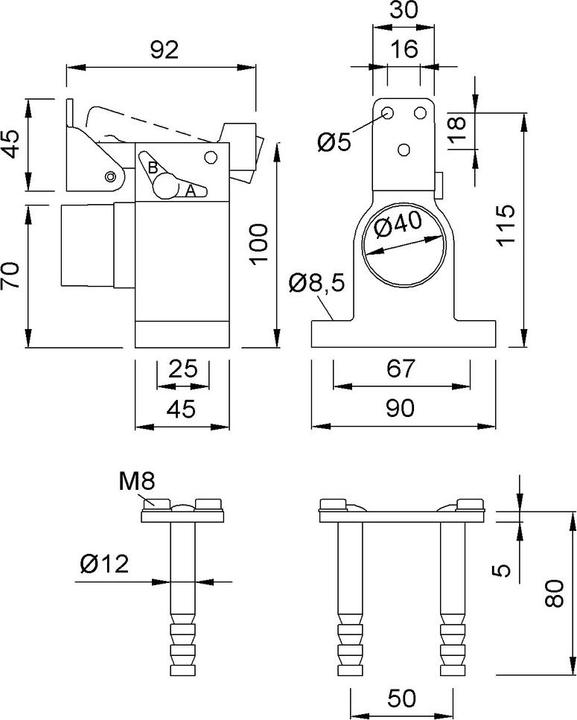

Technical data:

• Width: 90 mm
• Length: 92 mm
• Depth: 92 mm
• Height: 115 mm.
