LEDVANCE LED-Stripe IP65 LSVAL-600/865/5/IP65

Manufacturer: LEDVANCE
Designation: LED-Stripe IP65 5m, 6500K
Type: LSVAL-600/865/5/IP65
Version: Strip
Mounting type: Surface-mounted
Light source: LED (not replaceable)
Number of light sources per metre: 60
Number of light sources per foot: 18
Lamp wattage per metre: 5.5 W
Luminous flux per metre: 550 lm
Voltage type: DC
Lamp voltage: 24 V

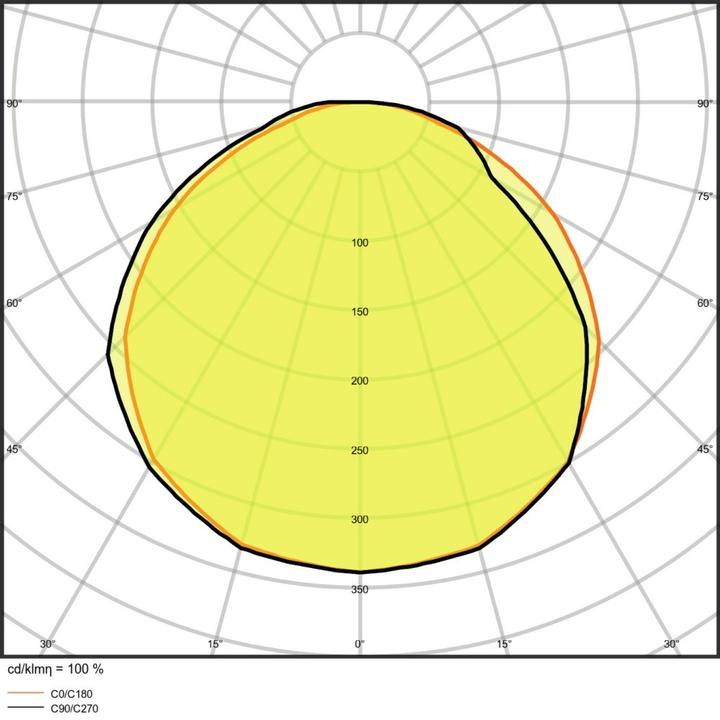

Beam angle: 105°
Control gear: Not required
Rated service life L70/B50 at 25°C: 20,000 h
Protection class (IP): IP65
Protection class (NEMA): 4
Max. system power: 27 W
Light colour: White
Colour temperature: 6500 K
Colour rendering index CRI: 80-89
Width: 10 mm
Height/depth: 4.1 mm
Length: 5000 mm
Smallest bending radius: 30 mm
Length of individual sections: 16.67 mm
With end piece: Yes
With connection set: No
With protective cover: Yes
Self-adhesive: Yes
Type of wiring: With through-wiring
Number of poles: 2
Conductor cross-section: 0.5 mm²
Connection type: Other

LEDVANCE LED-Stripe IP65 LSVAL-600/865/5/IP65: Further details
IP65-protected LED strips with 600 lm/m for many applications.

Product features:

• Flexible and divisible LED strip.
• Smallest divisible unit: 100 mm.
• Service life (L70/B50): Up to 20,000 h at Tc max.: 65°C.
• Luminous flux: 600 lm/m.
• Colour rendering index Ra: > 80.
• Available in colour temperature: warm white, white, daylight.
• Protection class: IP65.

Product benefits:

• Great design freedom thanks to long, flexible LED light strips.
• Easy installation on many smooth surfaces thanks to self-adhesive tape.
• Suitable for use in damp environments thanks to high protection rating.
• Maximum flexibility thanks to large selection of accessories.
• Simple connection thanks to integrated cables on both sides.

Areas of application:

• General interior lighting.
• General outdoor lighting.
• Decorative lighting.
• Private living areas.

Technical features:

• End caps must be ordered separately.
• EAN: 4058075296633.
