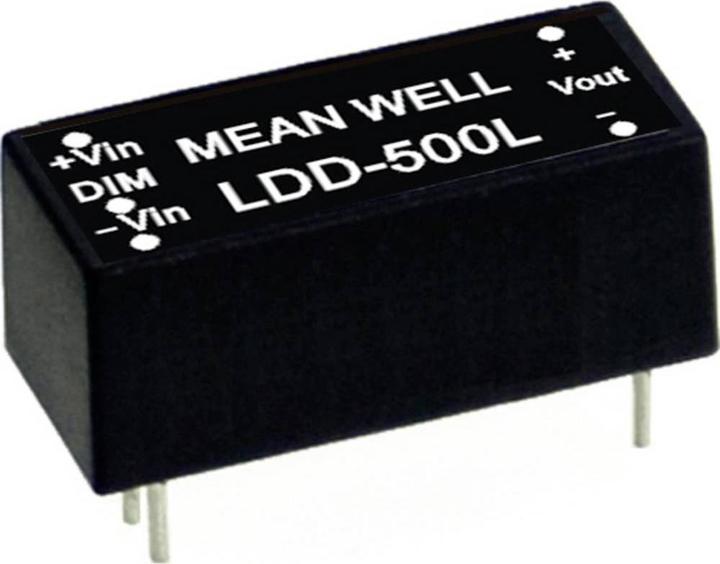

Meanwell DC/DC Step-Down LED Driver Series LDD-L, IP67 housing. DC/DC step-down converter with constant current output, wide input voltage range, and an efficiency of up to 95%. Built-in EMI filters, integrated PWM, and remote ON/OFF controller. Short circuit protection, compact design, encapsulation material: epoxy (UL94-V0), suitable for driving LED lighting.

Technical specifications:

• Connection (components): Pins, SMD
• Number of outputs: 1
• Number of inputs: 1
• Design (LED driver): Constant current
• Maximum output voltage: 30 V/DC
• Minimum output voltage: 2 V/DC
• Maximum output current: 1200 mA
• Maximum input voltage: 36 V/DC
• Minimum input voltage: 6 V/DC
• Energy efficiency class: n.rel.
• Weight: 12.8 g
• Manufacturer color: Black
• LED driver features: Dimmable
• Product type: LED driver
• Product dimensions, width: 10.5 mm
• Product dimensions, height: 9.3 mm
• Product dimensions, length: 25.4 mm
• Certification marks: EAC, CE
• Protection class: IP67
• Maximum temperature: +71 °C
• Minimum temperature: -40 °C

Additional technical data: The LDDs are step-down converters; the maximum output voltage is only reached at the maximum input voltage. The maximum output voltage is always less than the input voltage.

Note: Important information! Please do not size your LED driver/LED transformer too small! Choose an LED driver/LED transformer that has about 1/3 more power (watts). The crucial factor for the load on the LED driver is not the watt rating of the LED manufacturer, but the actual current draw (amperes) of the LED. It must be taken into account that the inrush current is significantly higher.
