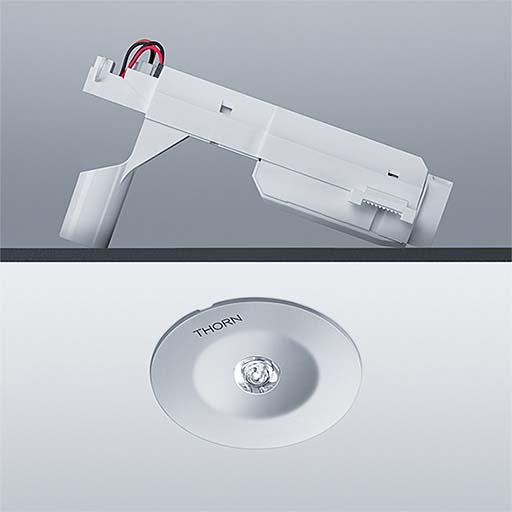

Thorn LED emergency luminaire VOYAGER ST #96633249 Manufacturer :Thorn Designation :LED emergency luminaire Type :VOYAGER ST #96633249 Mounting type :recessed Illuminant :LED not replaceable With illuminant :yes Suitable for number of illuminants :1 Lampholder :without Voltage type :AC Rated voltage :220..240 V Operating device :LED operating device current-controlled Max. Max. number of luminaires Circuit breaker B16 :60 Energy efficiency class of the permanently installed lamp :A++, A+, A (LED) Max. number of luminaires Circuit breaker C16 :yes Max. number of luminaires Circuit-breaker C16 :120 Protection class (IP) :IP20 Protection class :II Luminaire with limited surface temperature "D symbol" :no Max. system wattage :3.6 W System wattage :3.6 W Rated luminous flux acc. to IEC 62722-2-1 :200 lm Power factor :0.46 Height/depth :2 mm Outer diameter :85 mm Mounting height/depth :125 mm Thorn LED emergency luminaire VOYAGER ST #96633249: more details Powerful LED recessed emergency luminaire. Luminaire for central emergency light supply for individual monitoring of luminaire via Powerline in conjunction with eBox system, adjustable emergency light level. Optics:. Luminaire in continuous circuit. Housing: die-cast aluminium, powder-coated silver-grey (similar to RAL9006). Ballast box for ceiling recessing:. IP20_IP40, recessed ceiling luminaire for 68 mm ceiling cut-out and ceiling thicknesses of 1-25 mm. Lens: polycarbonate (PC). Luminaire can be quickly mounted and maintained without tools. Power connection (230 V) via max. 2.5 mm ² cable, through-wiring possible. Heat dissipator for optimum thermal management. Continuous operation: -30°C to +30°C, standby operation: -30°C to +35°C, power supply: 220-240 V AC (+/- 10%) 50-60 Hz, 176-280 V DC Installation possible in concrete casting housing (to be ordered separately). Complete with LEDs. Ceiling cut-out diameter 68 mm in ceilings 1-25 mm thick. Luminaire wattage: 3.6 W Dimensions: Diameter 85 x 2 mm Weight: 0.45 kg , EAN: 9010299140890.
