Trilux Inplana C07 OTA25 2000-830 ETDD01

1900 lm
Price in EUR including VAT
Delivered between Fri, 5.9. and Tue, 9.9.
Only 4 pieces in stock at supplier
free shipping

Product details

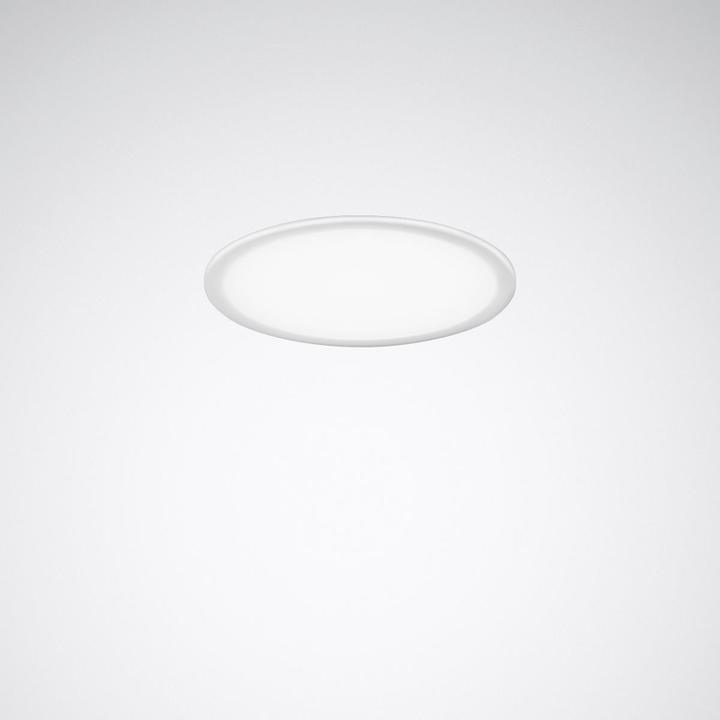

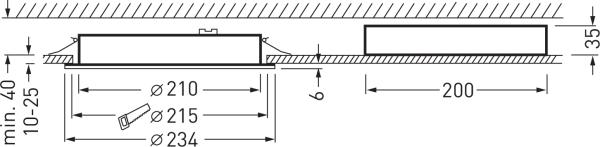

LED downlight for ceilings with a hollow space measurement of 36 mm. Recessed downlight for cut ceiling openings. Installation in cast concrete ceilings using accessories. Tool-free ceiling installation through quick-mount springs. Ceiling cutout of 215 mm, installation depth of 36 mm. Cover plate made of translucent PMMA. Primarily direct light intensity distribution. Increased lighting comfort through decorative ceiling illumination. Harmonious light effect due to uniformly illuminated light exit. Rated luminous flux 1900 lm, rated power 16.00 W, luminous efficacy of the luminaire 119 lm/W. Light color warm white, color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Average rated lifespan L80 (tq 25 °C) = 70,000 h, average rated lifespan L85 (tq 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements. Luminaire body made of aluminum die-cast. Surface coated in white (RAL 9016). Luminaire diameter 234 mm, luminaire height 42 mm. Permissible ambient temperature: -20 °C to +25 °C. Protection class (EN 61140): II, protection rating (DIN EN 60529): IP20, protection rating room side: IP54, impact resistance grade according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.9 kg. With external control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard. Luminaire can be switched and dimmed via touch function using DALI control terminals (Touch DIM). The control gear is replaceable according to eco-design requirements. The luminaire can be equipped with monitoring ready (MOR) functionality upon request. The product meets the basic requirements of applicable EU directives and the Product Safety Act and bears the CE marking. Additionally, the luminaire is ENEC certified by an independent testing body.

Key specifications

Application range
IndoorOutdoor
Scope of illuminant
incl. fixed light bulb
Dimmability
Dimmable
Width
23.40 cm
Height
4.20 cm
Material
Aluminium
Item number
33843459

General information

Manufacturer
Trilux
Category
Wall lamps + Ceiling lamps
Manufacturer no.
6455151
Release date
17.5.2023

Colour

Colour
White
Exact colour description
White

Material

Material group
Metal
Material
Aluminium

Application range

Application range
IndoorOutdoor

Lamp properties

Wall & Ceiling Light Type
Recessed spotlight
Adjustability
None
Dimmability
Dimmable
Mounting type
Built-in
Form
Round

Bulb properties

Scope of illuminant
incl. fixed light bulb
Bulb type
LED light
Shape
Other
Housing
Matt
Luminous flux
1900 lm
Light colour
Warm white
Colour temperature
3000 K
Colour rendering index
80
Number of lights
1 x
Max. power per lamp
16 W

Smart home features

Smart Home
Not compatible

Power supply

Voltage
230 V
Power supply
Electrical connection
input voltage
220 - 240 V
Conventional energy consumption
16 W
Power consumption
16 W

Safety

Protection type (IP code)
IP54
Protection class
Protection class II

Origin

Country of origin
Spain

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
Bulb

Product dimensions

Stack depth
3.60 cm
Length
4.20 cm
Width
23.40 cm
Total height
4.20 cm
Height
4.20 cm
Diameter
23.40 cm
Weight
0.90 kg
