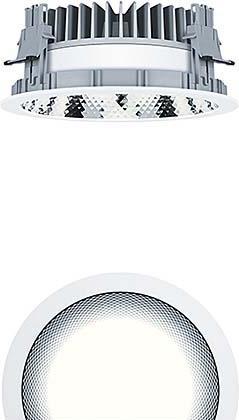

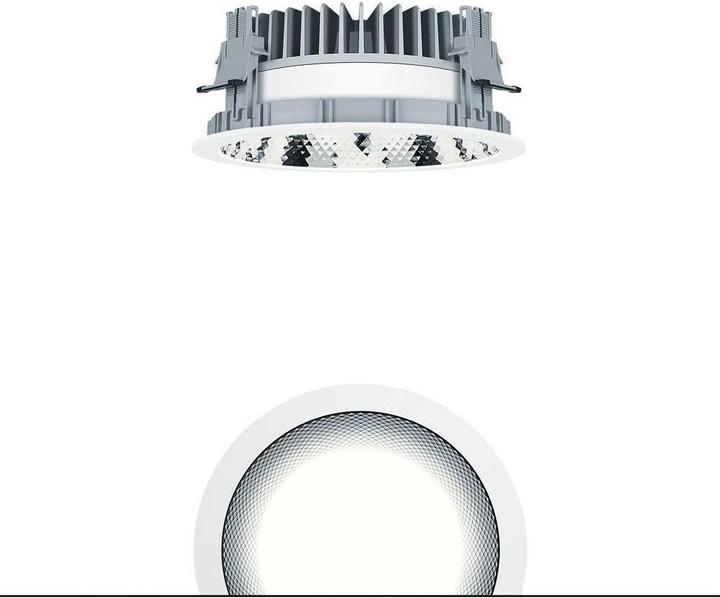

LED recessed ceiling luminaire complete luminaire, designed for use in spaces with limited ceiling depth: recess depth 100mm. This LED luminaire features "stableWhite" technology with symmetrical, wide-angle light distribution, ensuring maximum efficiency and optimal lighting.

Specifications include:

• Lamping: LED2500-930
• Colour rendering: Ra 90, R9 50
• Colour temperature: 3000K warm white
• Colour location tolerance (initial MacAdam): 2
• Luminaire wattage: 19 W
• Luminaire luminous flux: 2619 lm
• Luminaire luminous efficacy: 138 lm/W
• Service life: 50,000 hours at 95% luminous flux or 100,000 hours at 90% luminous flux

This luminaire is equipped with a separate ballast unit and is DALI controllable. It features a high-quality reflector unit locked to a modular LED lighting chamber via a bayonet catch, and an integrated highly efficient LED lighting chamber with optimized passive heat management made of die-cast aluminum.

The reflector is faceted, aluminum sputtered, highly specular, and iridescence-free. The reflector cover ring is made of high-quality, UV-resistant polycarbonate (PC) and is white, while the mounting ring is grey and made of glass-fibre reinforced PC.

Installation is tool-free and quick, using a bayonet catch. The luminaire is rated IP44/IP20 and is wired halogen-free. Connection is via a 5-pole plug-in terminal, with loop-through capability. Mains voltage is 220-240V, 50/60Hz, and it is suitable for central battery 220V DC.

Mounting is tool-free with anti-slip retaining springs for ceiling thicknesses of 1-40mm, and the ceiling cut-out required is 200mm. Installation depth is 89mm, and the weight is 1.21 kg.

Note: For office applications according to EN12464 UGR19, an additional glare ring must be ordered separately.
